Two Numbers Decide Field Survival

The datasheet lies at the margins

“Wide temperature” and “wide voltage” are the two most quoted phrases in industrial board marketing — and the two most often skimmed. They are also the ratings that decide whether a board survives its first winter on a plant wall or its first cranking cycle on a vehicle.

This guide reads those two lines on real GEOLiNK™ specification sheets: the −20/+60°C operating range that appears across the lineup, the DC 9–36 V class (UT1003AW, TL500Z3AW, PNM-5210 and others), the 12–24 V class (ITX660B) and the 12–19 V class (TOP800B, HK800CA). Every model name and figure below comes from a published English spec sheet — and a few of them contradict the sales brochure, which is exactly the point.

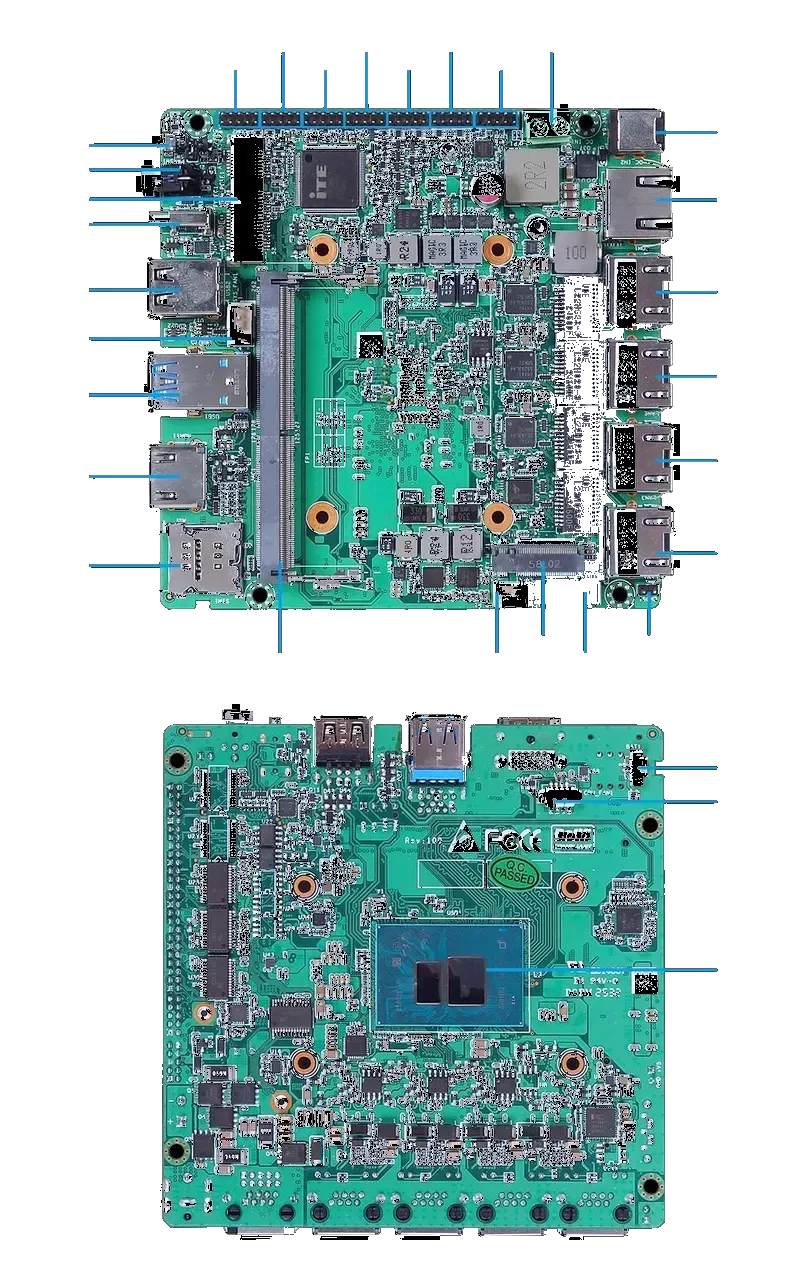

PNM-5210 NANO-ITX motherboard with wide-voltage DC jack, vertical product shot

01 · Read The Temperature LineWhat the temperature figures actually promise

An industrial datasheet carries three separate thermal statements, and buyers frequently merge them into one:

Operating temperature — the ambient range in which the board is qualified to run continuously. Across the GEOLiNK lineup this is typically −20/+60°C, with storage at −40/+85°C. Check the exact model, not the series.
Storage temperature — the range the board may be exposed to while powered off, including logistics. −40/+85°C on a spec sheet does not mean the board operates at −40°C.
Humidity — almost always specified as “non-condensing”, but the window differs: the UT1003AW rates 0–90% RH while the AD742A rates 5–90%. In a coastal cabinet, that 5% floor on the low end is the same humidity, but the guarantee window is not.

Here is the counter-example that proves the point. The TIM800B is a Mini-ITX board from the same 28 W Core Ultra class as the TOP800B — but its spec sheet rates operating temperature at −10/+60°C and storage at −20/+70°C, while the TOP800B rates −20/+60°C operating and −40/+85°C storage. Same form factor, same family, different qualification envelope. If your site sees −15°C, the TOP800B is the defensible choice; the TIM800B would be a field risk. Always verify the number on the exact SKU you intend to order, and ask for the datasheet revision in writing.

02 · The Voltage ShelfThe voltage classes you will actually find

The GEOLiNK catalog resolves to four input classes, and every board sits in exactly one of them. The practical distinction is which supply you already have: vehicle electrical systems, unregulated plant rails and battery-backed sites argue for the 9–36 V class; regulated power supplies and 19 V adapters fit the 12–19 V class; a clean fixed 12 V rail can use the single-voltage class.

Real Instances

DC input classes across the lineup

Model names and wattages from the English specification sheets; wattage is the sheet rating, not a typical load.

Input Class	Boards in This Class	Sheet Ratings	Best Fit
DC 9–36V	UT1003AW · TL500Z3AW · AD600Z3AW · RP7003AW · MSK-TL5003AW · PNM-5210	90W (TL500Z3AW, MSK-TL5003AW) · 120W (RP7003AW)	12V/24V vehicle electrics, unregulated plant rails, battery-backed sites
DC 12–24V	ITX660B	120W and above; two power specifications optional	Socketed desktop-class builds that must ride both 12V and 24V supplies
DC 12–19V	TOP800B · TIM600B · HK800CA · AD600NA · TL500CA · UT100CA · UT100NU	90W+ (TOP800B, TIM600B, HK800CA, TL500CA, UT100CA) · 120W (AD600NA, UT100NU)	Regulated supplies, panel PCs, signage; the common 19V adapter class
DC 12V fixed	AD742A · FTEQ20A · ITXD20B	class per sheet (FTEQ20A) · 60W (AD742A) · 100–200W (ITXD20B)	Clean single-rail 12V from a PSU, low-power nodes and instruments

03 · Why The Class MattersVolts, watts and the moment power comes back

The input class matters for three reasons beyond the label. First, margin: a 9–36 V board tolerates the voltage collapse of a 24 V system during cranking and the overvoltage of a 12 V system during alternator regulation, because both sit inside its envelope. A 12–19 V board demands a supply that stays in that window, which is why it pairs with regulated adapters and battery-backed bricks.

Second, current. Wattage is the spec-sheet rating, but at the low end of the rail the same watts mean more amperes. An RP7003AW rated 120 W on a 9–36 V input draws nearly double the current at 9 V that it does at 18 V for the same load — a wiring and fuse budget question, not a board question. Size the input cabling and the upstream fuse for the low-voltage corner of the range.

Third, power-on behavior. For unattended sites the interesting line is not the voltage but what happens when mains or the vehicle returns. The HK800CA defaults to AT power-on selected by jumper — it boots when power returns. The FTEQ20A, UT100NU and PNM-5210 expose AT/ATX headers for the same choice. Watchdogs close the loop: the TOP800B offers a 0–255 s watchdog and the FTEQ20A a 255-level watchdog, so a hung process reboots without a human on site.

04 · The ChecklistEight checks before you specify

Confirm the range on the exact SKU. TIM800B (−10/+60°C) and TOP800B (−20/+60°C) are both Mini-ITX. The series name proves nothing.
Separate operating from storage. −40/+85°C storage (TOP800B, UT1003AW, PNM-5210 and most of the lineup) is a logistics rating, not an operating claim.
Match the class to the supply you already have. Vehicle electrics → 9–36 V (UT1003AW, PNM-5210); regulated 19 V adapters → 12–19 V (TOP800B, HK800CA); a PSU-fed single rail → 12 V class (AD742A).
Budget wattage at the low end of the rail. Use the sheet rating (RP7003AW 120 W, TL500Z3AW 90 W) and derate the input wiring accordingly.
Read the humidity line. 0–90% vs 5–90% RH, both non-condensing — match it to the cabinet, not the brochure.
Decide the power-on sequence. AT default on HK800CA, AT/ATX headers on FTEQ20A, UT100NU and PNM-5210 — choose before you install, not after a field trip.
Check the thermal solution fits your enclosure. AD742A exposes a 4-pin PWM CPU fan header; TL500Z3AW carries a heatsink; UT100NU reaches 345 g with heatsink — weight and airflow are part of the qualification.
Ask for the datasheet revision. Sheets carry revisions such as R100 (UT1003AW), R101 (UT100NU), R102 (AD742A), R110 (FTEQ20A) and R111 (HK800CA). Pin the revision into your design records; “subject to change without notice” is why.

The good news from the sheets: most of the GEOLiNK lineup already sits at the wide end — −20/+60°C operating with −40/+85°C storage is the norm, not the premium option. The remaining work is yours: verify the exact SKU, match the voltage class to the real supply, and bench-test a sample (MOQ 1 pc) at both extremes of the rail before the mechanical design locks.
