Screen walls that outlast the campaign
A signage player has one job: push pixels to panels in a shopping center for months at a time, unattended. The screen count decides the board — and every model below quotes its display outputs on the datasheet, from dual 4K to four simultaneous panels. The memory ceiling, in turn, decides the player class: how many content layers can stay cached and current.
4 SIMULTANEOUS PANELS · HDMI 2.1 / DP 4K · DUAL 2.5G LAN · DDR5 96GB · −20/+60°C
Behind The Screen
Four ways a player differs from a PC
- Display-first layout: the AR200CA quotes 2× HDMI 2.1 4K plus 2× Type-C with DP 4K — four simultaneous panels from a 100×100 board.
- Two networks, not one: dual 2.5G LAN on all three models keeps the content feed separate from the management path, so a broken uplink cannot strand a screen wall.
- Compute for layered content: Ryzen AI 9 365 on the HK800CA and Core Ultra Arrow Lake on the AR200CA render rich layers; the TL500CA’s Tiger Lake i5/i7 covers standard playback fleets.
- Compact install: 100×100 boards slide into slim players behind the panel, with M.2 2280 NVMe for fast content storage on the HK800CA and AR200CA.
Recommended Models
Three players for the screen wall
Display counts, memory and LAN are quoted from the model page datasheets — nothing added. For price-sensitive fleets, the TL500CA keeps the same 100×100 footprint with DDR4 memory and a MiniPCIe slot for wireless content delivery.
HK800CA
AMD Ryzen AI 9 365
DDR5 64GB, 2× HDMI 4K + Type-C 4K, dual i226-V 2.5G, M.2 NVMe.
Why: triple display with the Ryzen AI 9 365 on the CPU field — for content engines with live data layers.
View →

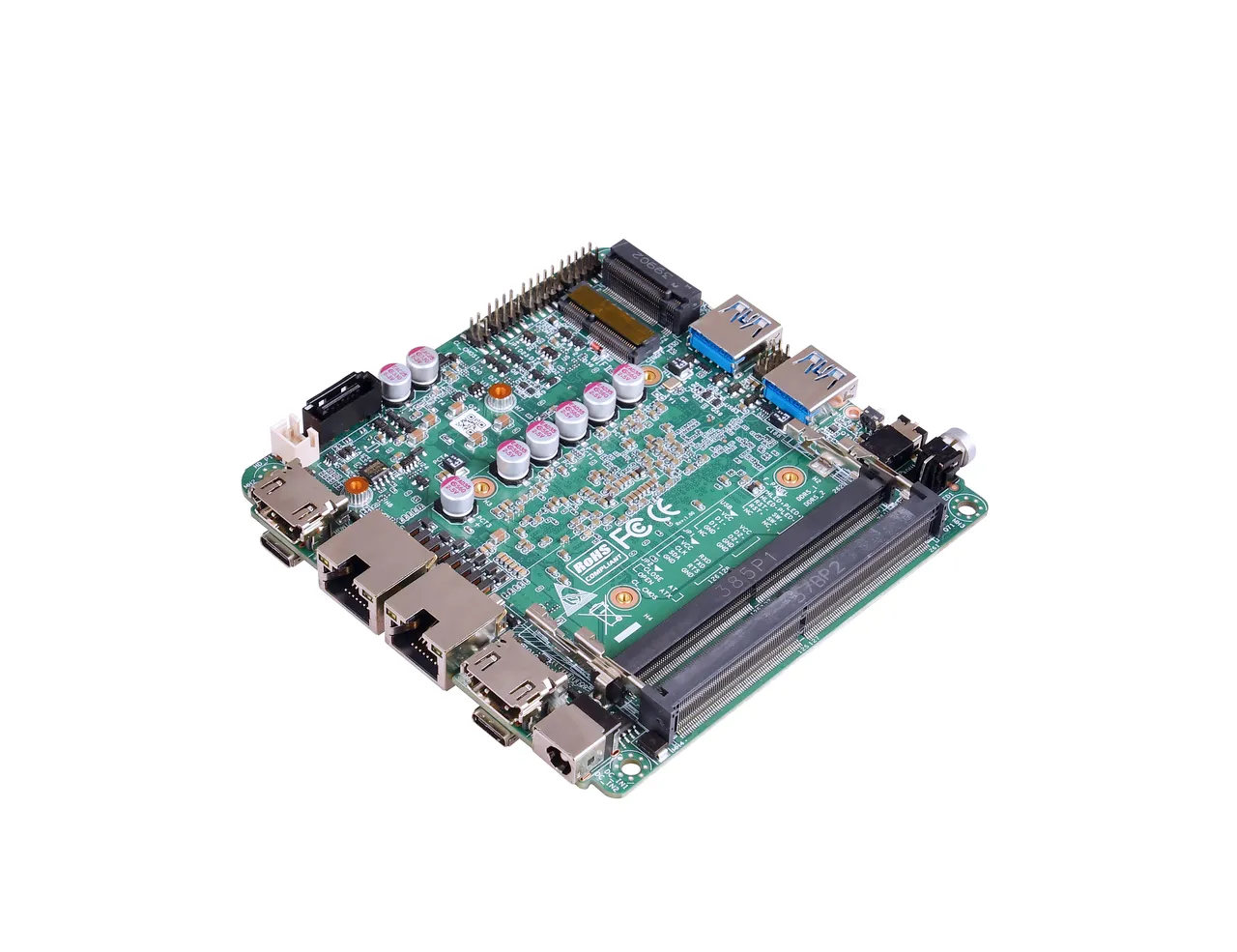

AR200CA
Core Ultra Arrow Lake · 28W
DDR5 96GB, 2× HDMI 2.1 4K + 2× Type-C DP 4K, dual i226 2.5G.
Why: four simultaneous 4K outputs and the largest memory ceiling in the NUC family per the datasheet.
View →

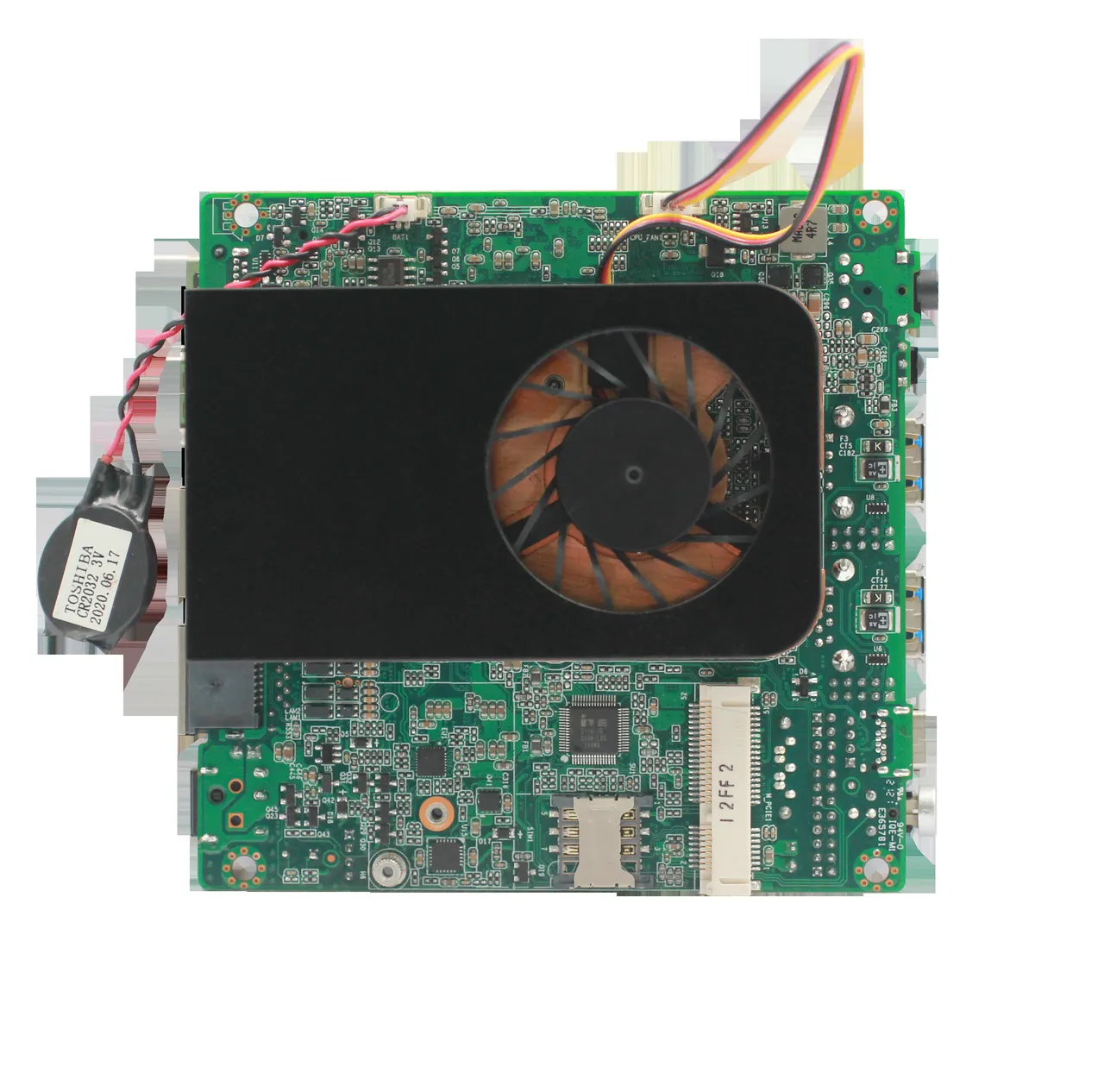

TL500CA
Tiger Lake-U · i5/i7
DDR4 64GB, HDMI 4K + MiniDP 4K, dual 2.5G, MiniPCIe WiFi/3G/4G.
Why: cost-effective dual-screen player with MiniPCIe for cellular content refresh at remote sites.
View →Questions
Digital signage, answered
The AR200CA quotes 2× HDMI 2.1 4K plus 2× Type-C with DP 4K — four simultaneous panels; the HK800CA drives three and the TL500CA a dual-screen set.
All three models carry dual 2.5G LAN, so the content feed and the management path stay on separate segments; the boards operate at −20 to +60°C per the datasheets.
Behind the panel in slim signage players; the HK800CA and AR200CA add an M.2 2280 NVMe slot for a local content cache so playback survives uplink hiccups.
Get A Quote
Four panels, one square board — that is the install.
Send the panel count, resolution and content engine — we’ll name the player board within 24–48 hours.
