NANO-ITX · 120×120 MM · 28W

AD600NA Industrial Motherboard

Name: AD600NA Industrial Motherboard
Brand: GEOLiNK
SKU: AD600NA

An onboard 28W Intel Alder Lake-U/P/H platform with four independent display paths — dual HDMI 4K, DP 8K and Type-C DP — plus dual-channel DDR5 and 2.5G Ethernet, all on a 120×120 mm NANO board. The AD600NA is the signage-class workhorse of the NANO line.

Get a Quote Compare NANO-ITX

AD600NA · Quick Specs

CPU	Onboard Alder Lake-U/P/H, 28W
Memory	2× DDR5 SO-DIMM, up to 64GB
Display	2× HDMI 4K · DP 8K · Type-C DP
Network	1× Intel 2.5G LAN
Power	DC 12–19V, 120W
Temperature	−20/+60°C operating

ALDER LAKE-U/P/H 28W · DDR5 64GB · DP 8K · 2.5G LAN · DC 12–19V · SAMPLE MOQ 1 PC

Why AD600NA

Four screens, one 120 mm board

Display

Four outputs, 8K ceiling

2× HDMI 2.0 at 4K, a DP at 8K @ 60Hz and a Type-C carrying DP 8K plus USB 3.0 — video walls and quad-monitor control desks without a GPU card.

Memory

DDR5 dual channel, 64GB

Two SO-DIMM slots up to 4800 MHz (12th Gen) or 5200 MHz (13th Gen) — headroom for browser-heavy dashboards and multi-stream decode.

Networking

2.5G LAN

One Intel 2.5G port alongside the rear USB 2.0 pair — enough bandwidth for CMS and control traffic in networked signage.

Chassis Fit

130g with no heatsink

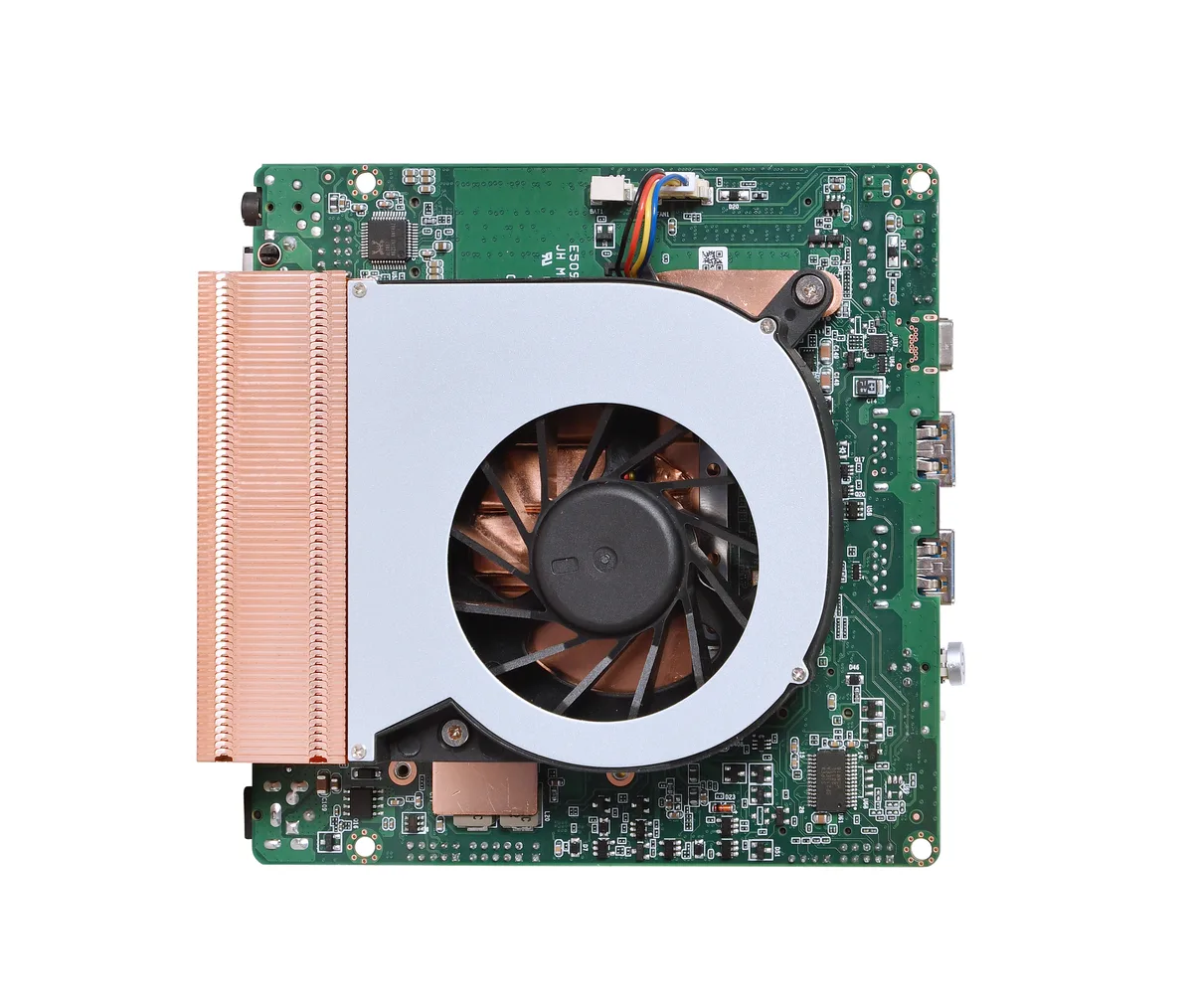

The bare board weighs about 130 g (250 g with heatsink) — light enough for wall-mount media players and slim all-in-one kiosks.

Full Specifications

Technical data

Per the AD600NA English specification sheet. Specifications can be verified against the datasheet on request.

CPU	Onboard Intel Alder Lake-U / -P / -H · 28W TDP · I3-1215U / I5-1235U / I5-12450H / I7-1255U / I5-1240P / I7-1260P · EFI BIOS
Memory	2× DDR5 SO-DIMM · up to 64 GB total · 4800 MHz (12th Gen) / 5200 MHz (13th Gen)
Storage	2× M.2 M-Key 2280 (NVMe PCIe 4.0 x4 or SATA 3.0, specify at order) · 1× SATA 3.0 (2-pin 5V power)
Display	2× HDMI 2.0 4K@60Hz · 1× DP 8K@60Hz · 1× Type-C (DP 8K@60Hz + USB 3.0)
Network	Intel 2.5G Ethernet · single / dual LAN optional
USB	4× USB 3.0 front · 1× Type-C (USB 3.0) · 1× USB 2.0 header (2×5-pin) · +2× USB 2.0 rear with single-LAN option
Serial	1× RS232/RS485 pin header (2.0 mm pitch)
Expansion	1× M.2 E-Key (PCIe + USB 2.0, WiFi/BT) · external TPM 2.0 optional · 4-pin PWM CPU fan header
Front Panel	Power button · reset button · combo audio jack · DC jack
Power	DC 12–19V input · 120W and above

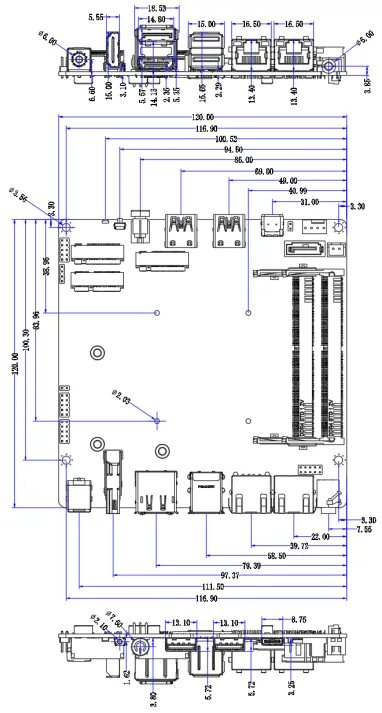

Dimensions	120 × 120 mm · approx. 130 g without heatsink / approx. 250 g with heatsink
Environment	−20°C to +60°C operating, 5–90% RH · −40°C to +85°C storage, 5–90% RH
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Video walls and multi-screen control

The AD600NA replaces a discrete GPU in display-heavy builds where every watt and every millimeter counts. Typical deployments:

Retail signage walls: one board driving dual 4K panels over HDMI while DP feeds a third preview screen, with 2.5G backhaul for content sync.
Control-room consoles: quad monitors for process dashboards, plus the serial header for badge readers and the combo audio for alerts.
Multimedia kiosks: Type-C out for direct panel connection and a 130 g board weight that keeps wall mounts simple.

Two large wall screens in a retail hallway

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
CPU SKU	I5-1235U (28W)	I3-1215U · I5-12450H · I7-1255U · I5-1240P · I7-1260P
LAN	1× Intel 2.5G	—
M.2 SSD protocol	NVMe PCIe 4.0 x4	SATA 3.0 protocol
Security	CPU-integrated TPM 2.0	External TPM 2.0 module
Wireless	—	M.2 E-Key WiFi/BT module
