NANO-ITX · 120×120 MM · R100

PNM-5210 Industrial Motherboard

Name: PNM-5210 Industrial Motherboard
Brand: GEOLiNK
SKU: PNM-5210

A 15W Intel N150/N305 platform that fronts as a network appliance: four 2.5G LAN ports with PoE power-sourcing, a SIM slot for 4G/5G failover, five serial channels and wide DC 9–36V input — all squeezed into a 120×120 mm NANO board.

Get a Quote Compare NANO-ITX

PNM-5210 · Quick Specs

CPU	Onboard Intel N150/N305, 15W
Memory	1× DDR5 SO-DIMM, up to 16GB
Network	4× LAN (3× i226-V + RTL8156B)
Serial	5× COM · RS232/RS485 BOM
Power	DC 9–36V wide input
Temperature	−20/+60°C operating

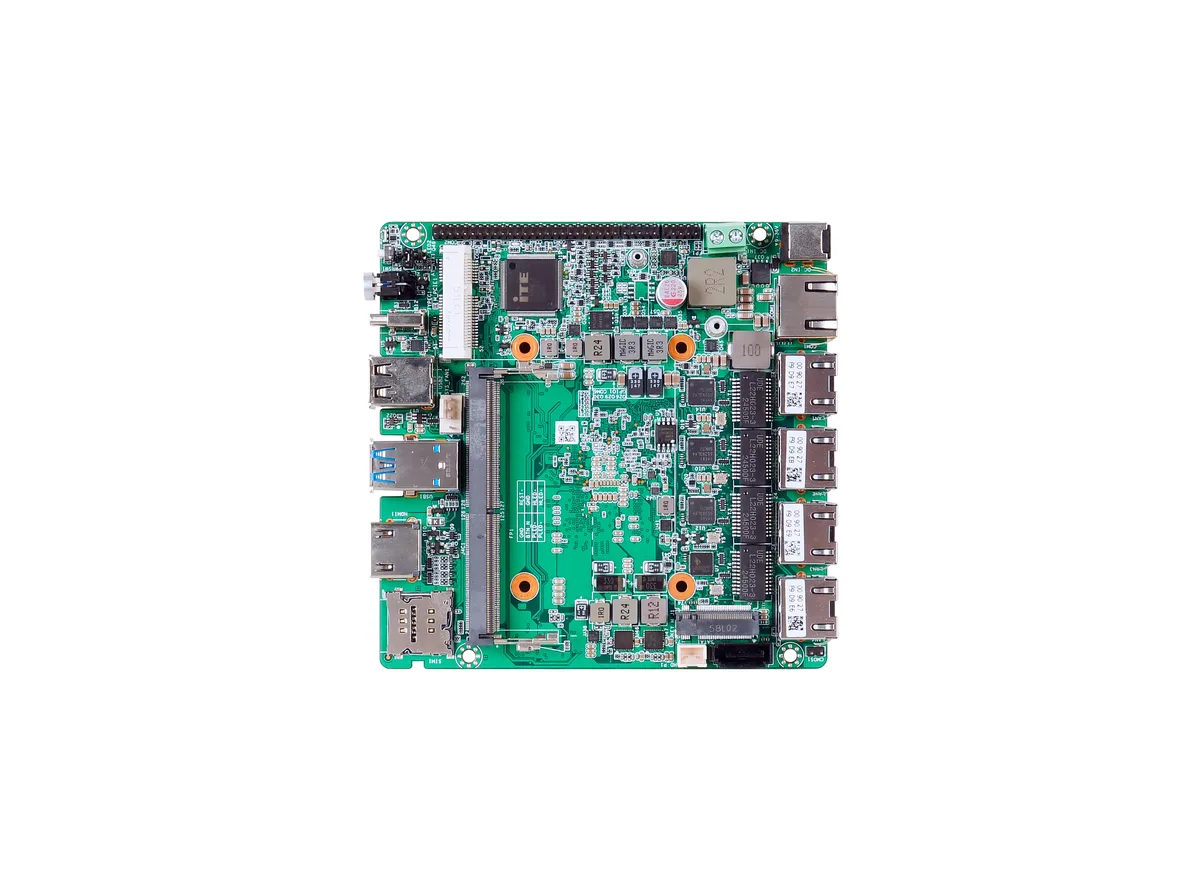

PNM-5210 industrial motherboard top view

4×LAN 2.5G · POE 48V PSE · DC 9–36V · 5×COM · SIM · SAMPLE MOQ 1 PC

Why PNM-5210

A NANO board that behaves like an appliance

Port Density

Four 2.5G LAN ports

3× Intel i226-V plus 1× RTL8156B — enough copper for WAN/LAN/DMZ segmentation on a single 120 mm board, no PCIe riser required.

PoE Out

48V/15W PSE

PoE power-sourcing equipment (IEEE 802.3af) lets the board feed remote cameras and sensors straight from the LAN ports.

Wide Input

DC 9–36V, no converter

Battery banks, vehicle rails and solar-fed power all land inside the input range — fewer external bricks, simpler BOMs for system integrators.

Connectivity

SIM + Mini PCIe expansion

A dedicated SIM slot with Mini PCIe (PCIe + USB 2.0 + SATA 3.0) for 4G/5G modules, plus five COM ports for serial peripherals.

Full Specifications

Technical data

Per the PNM-5210 English specification card (version R100). Specifications can be verified against the datasheet on request.

CPU	Onboard Intel Twin Lake / Alder Lake · 15W TDP · N150 / N305 · EFI BIOS
Memory	1× DDR5 SO-DIMM · 4800 MT/s · up to 16 GB
Storage	1× M.2 M-Key 2280 (NVMe PCIe 3.0 x2) · 1× SATA 3.0 (2-pin 5V power)
Display	1× HDMI 2.0, 3840×2160@60Hz · 1× Type-C (USB 3.2 + DP)
Network	4× LAN · 3× Intel i226-V 2.5G + 1× RTL8156B · PoE 48V/15W PSE (IEEE 802.3af) · 1× RJ45 console
Serial	5× COM, 2×5-pin headers (2.0 mm pitch) · BOM option 3× RS232 + 2× RS485
USB	2× USB 3.0 · 2× USB 2.0
Expansion	1× Mini PCIe (PCIe + USB 2.0 + SATA 3.0; WiFi/BT/4G) · 1× SIM card slot · 8-bit GPIO header · AT/ATX header
Front Panel	DC jack · power & reset buttons · HDD LED · FP1 header · RTC battery · CL_CMOS
Cooling	1× PWM CPU fan (4-pin, 1.25 mm pitch) · 1× SYS fan (4-pin, 2.54 mm pitch)
Power	DC 9–36V wide-voltage input
Dimensions	120 × 120 mm
Environment	−20°C to +60°C operating, 0–90% RH non-condensing · −40°C to +85°C storage, 0–90% RH non-condensing
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Gateway racks and hardened comms

The PNM-5210 earns its keep wherever network density, wide input and serial reach have to share one board. Typical deployments:

Industrial IoT gateways: four LAN segments for field devices plus a SIM-backed cellular uplink, all monitored through the RJ45 console port.
Security appliances: PoE out to feed edge cameras, 9–36V input from site batteries, and 5× COM for door controllers and alarms.
Utility comms cabinets: wide-voltage tolerance for 24V substation rails and storage down to −20°C, with RS485 BOM legs to metering stacks.

Utility communication cabinet with network equipment

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
CPU	Onboard Intel N150 (15W)	Intel N305 (15W)
PoE	4× LAN without PoE	PoE 48V/15W PSE, IEEE 802.3af
Serial mode	5× COM (RS232 headers)	BOM: 3× RS232 + 2× RS485
Security	CPU-integrated TPM 2.0	External TPM 2.0 module
Wireless	—	Mini PCIe WiFi/BT/4G module with SIM
