Mini-ITX industrial motherboards
170 × 170 mm — the full-width industrial workhorse. Seven models span desktop-class LGA1700 Core, 28W Core Ultra 5/7 and AMD Phoenix Ryzen, with up to 96 GB DDR5 and up to dual 2.5G Intel LAN on one board.
SIZE 170×170 MM · MODELS 7 · PLATFORM LGA1700 / ONBOARD ULTRA-RYZEN · WIDE TEMP OPTION
TOP800B · HDMI2.1 8K · DUAL 2.5G LAN · DDR5 UP TO 96GB
Why The Full 170×170
What the extra 50 mm buys you
- Real expansion: PCIe 4.0 x16 or x4 slots for frame grabbers, capture cards and GPU-adjacent workloads — while still fitting any standard Mini-ITX chassis.
- Network headroom: dual Intel 2.5G and M.2 B-Key 4G/5G with Micro-SIM on the TOP-series boards; VLANed or failed-over in software.
- Serial & legacy: six COM ports with selectable RS232/485, LPT or GPIO, PS/2 — industrial protocols without adapters.
- Display choices: everything from 8K HDMI 2.1 down to 24-bit LVDS for legacy 120Hz panels, selectable per board revision.
Model Overview
Seven boards, one standard
Values per the English specification sheets. Where a board offers a choice (jumper, selectable SKU), the standard configuration is listed.
| Model | CPU Platform | Memory | Displays | LAN | Power | Operating Temp |
|---|---|---|---|---|---|---|
| ITX660B | LGA1700 Core 12th–14th Gen, 65W | 2× DDR5 SO-DIMM, 64GB | 2× HDMI 2.1 + 2× DP 1.4 (8K) | i219-LM + i226-V | DC 12–24V, 120W+ | −20/+60°C |
| ITXD20B | Phytium D2000/8, 2.3GHz, 40W | 2× DDR4 SO-DIMM, 64GB | HDMI 2.0 + VGA + LVDS | 2× RTL8111H | DC 12V, 100–200W | −20/+60°C |
| TIM600B | Onboard Alder Lake, 45W | 2× DDR4 SO-DIMM, 64GB | HDMI 2.0 + VGA/DP + LVDS 120Hz | 1× RTL8111H | DC 12–19V, 90W+ | −20/+60°C |
| TIM800B | Onboard Core Ultra 125H–255H | 2× DDR5-5600, 96GB | HDMI + DP + LVDS 120Hz | 1× RTL8111H | DC 12–19V, 120W | −10/+60°C |
| TMIA70B | Onboard AMD Ryzen 5/7 Phoenix, 45W | 2× DDR5-5600, 96GB | HDMI 2.0 + LVDS 120Hz | 1× RTL8111H | DC 12–19V + ATX | −20/+60°C |
| TOP600B | Onboard Alder/Raptor Lake U-P, 28W | 2× DDR5 SO-DIMM, 64GB | HDMI 2.0 + VGA/DP + LVDS | 2× Intel i226 (2.5G) | DC 12–19V, 90W+ | −20/+60°C |
| TOP800B | Onboard Core Ultra 5/7, 28W | 2× DDR5-5600, 96GB | HDMI 2.1 8K + HDMI 2.0 + LVDS | 2× Intel i226-V (2.5G) | DC 12–19V, 90W+ | −20/+60°C |
Choose A Model
The Mini-ITX lineup

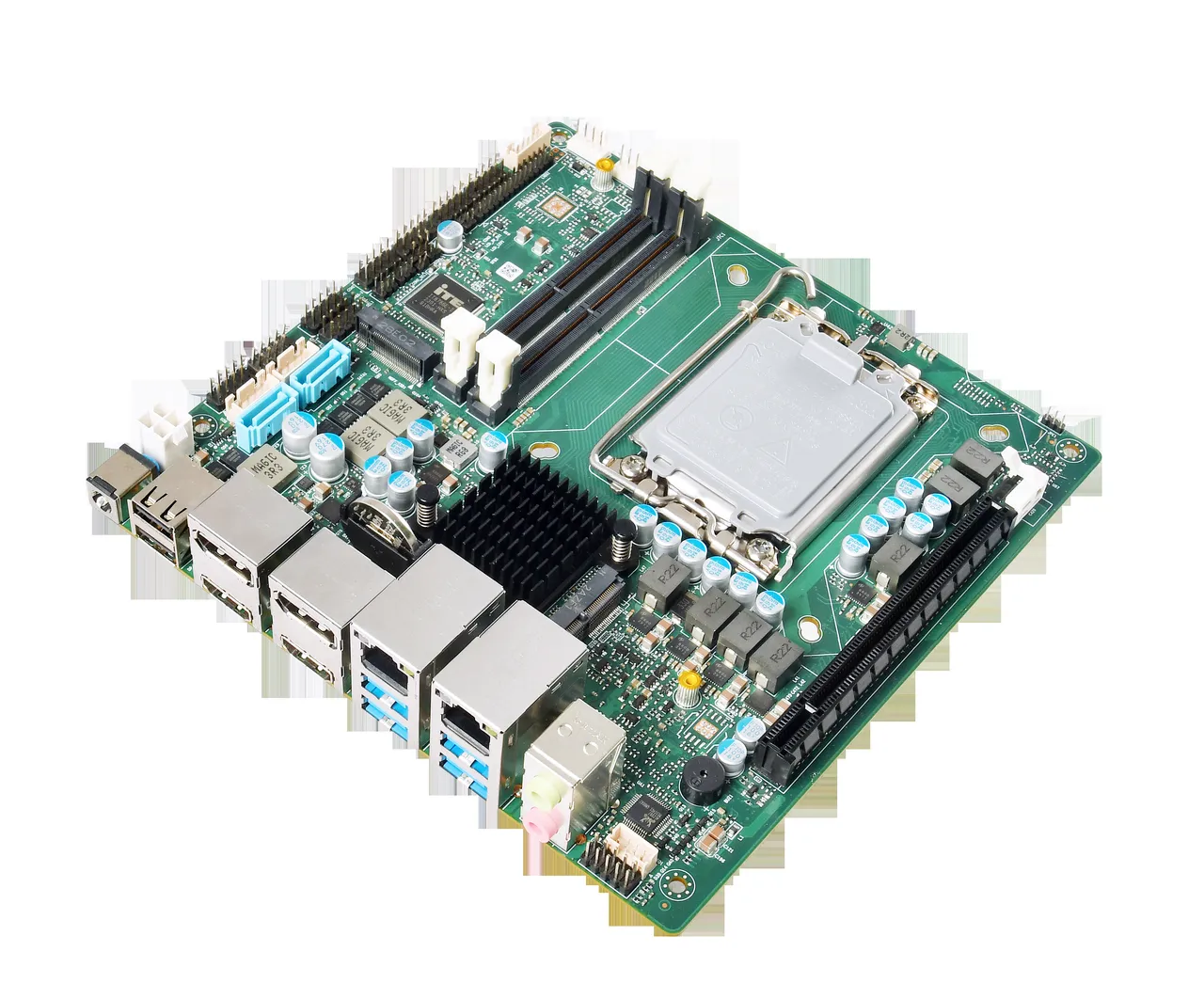

ITX660B
LGA1700 12–14th Gen · 65W
Desktop-class Core, PCIe 4.0 x16, quad display with dual DP 8K.
View →

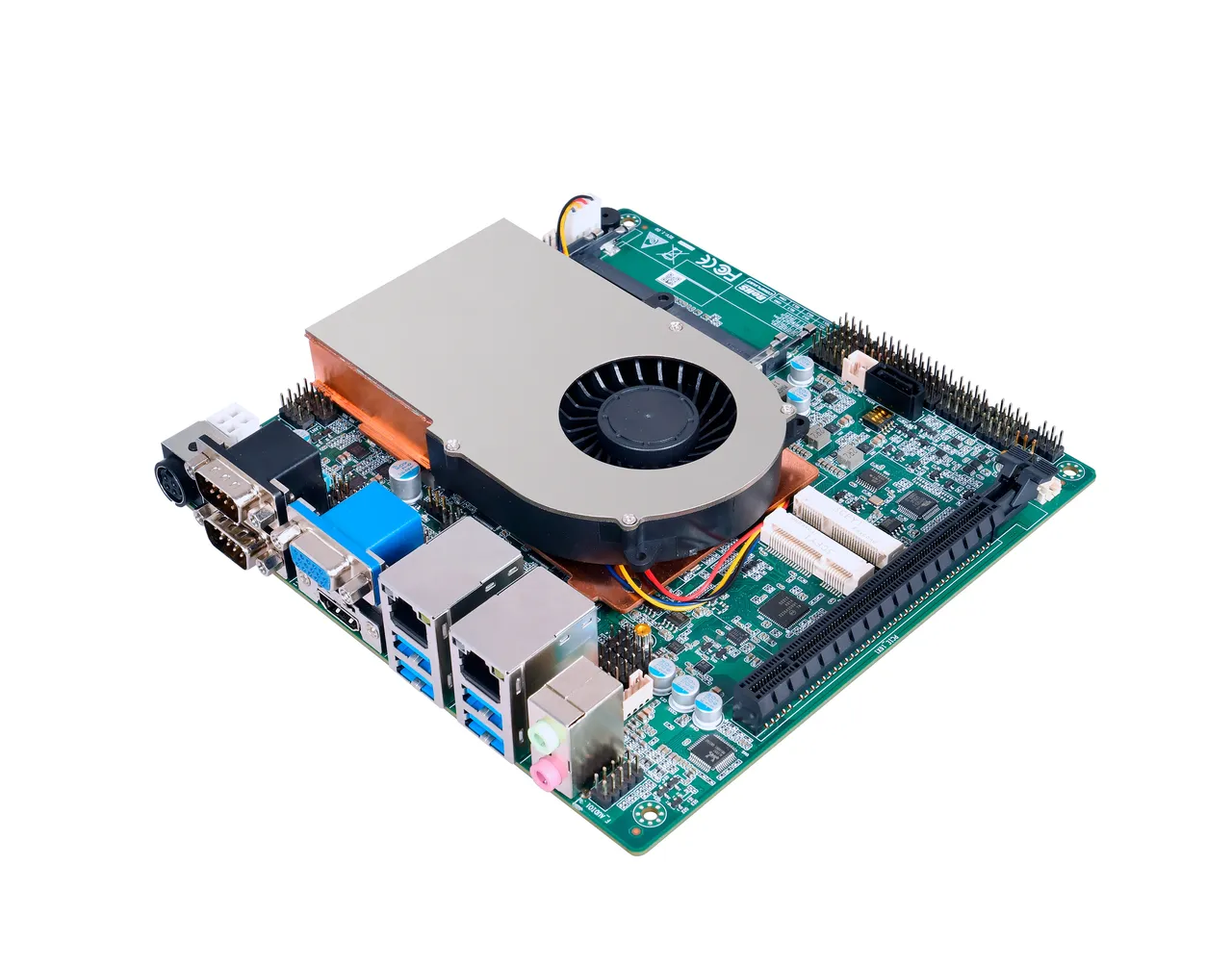

ITXD20B
Phytium D2000/8 · 40W
Domestic 8-core SoC, 6× COM with RS232/485, 2× CAN.
View →
TIM600B
Alder Lake · 45W
LVDS 120Hz panel output with backlight control headers.
View →

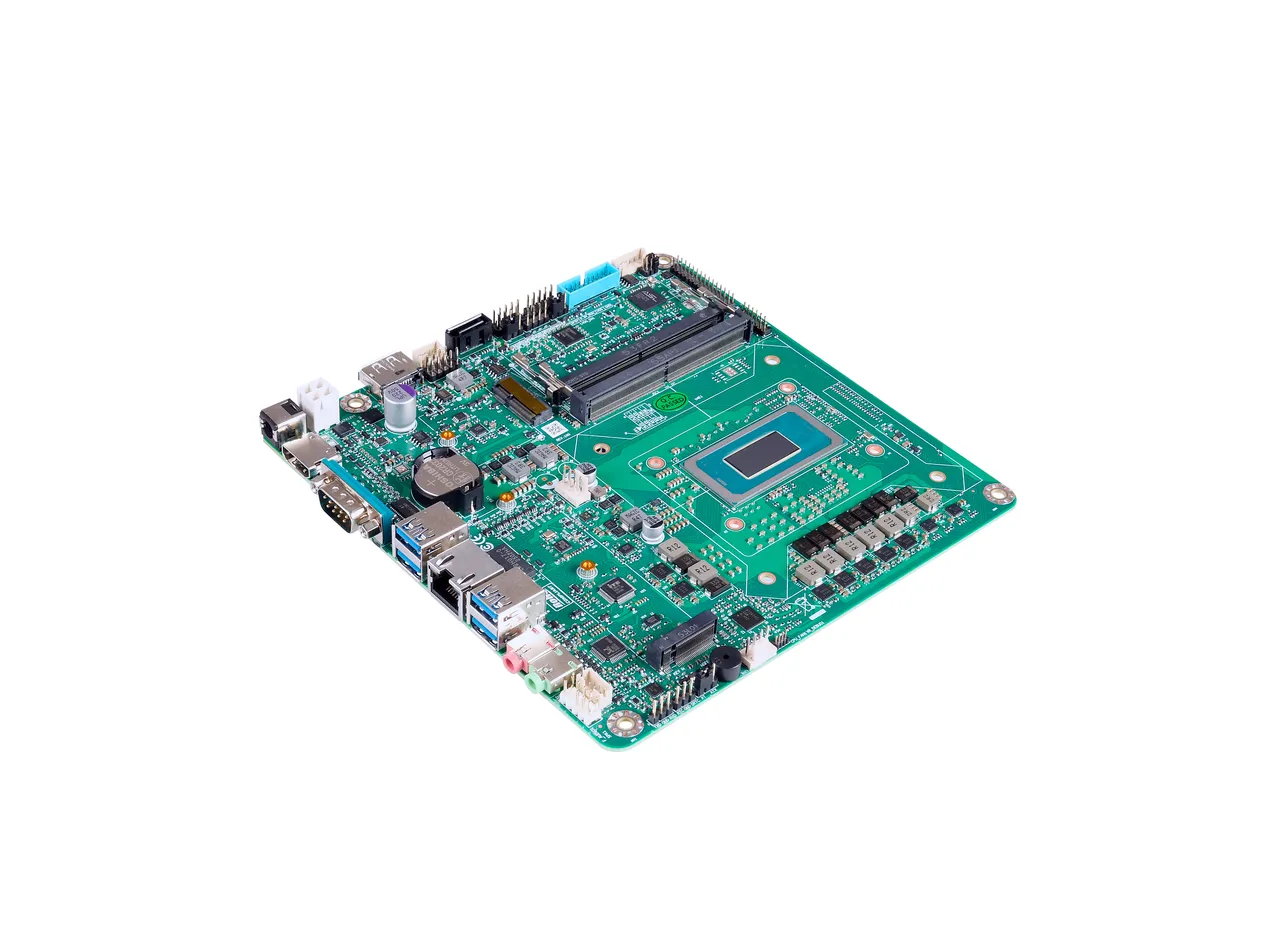

TIM800B
Core Ultra 125H–255H
DDR5-5600 up to 96GB, LVDS 120Hz industrial panels.
View →

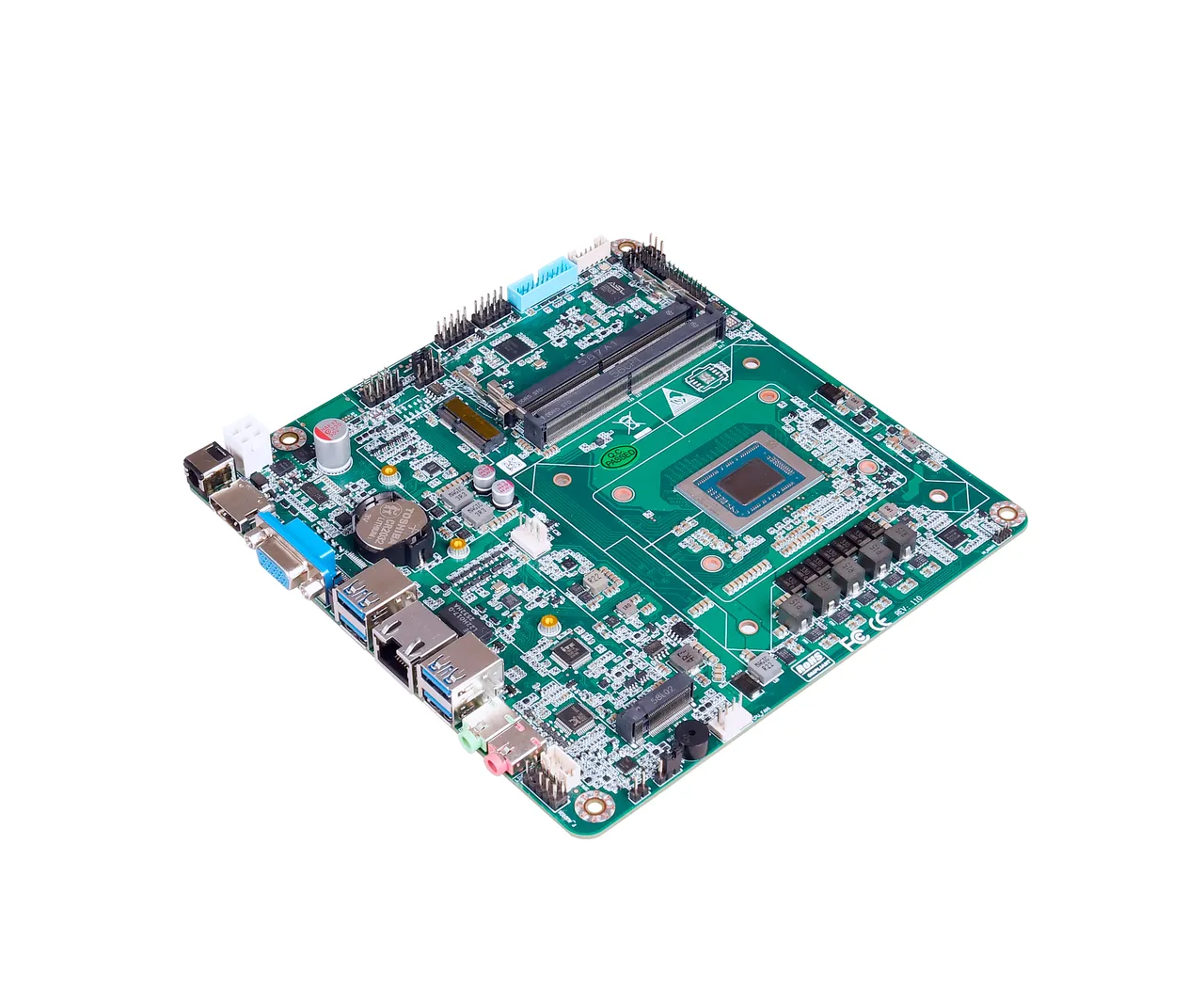

TMIA70B
AMD Ryzen Phoenix · 45W
Ryzen 5/7 7640HS–8845HS, TPM 2.0 standard.
View →
TOP600B
Alder/Raptor U-P · 28W
Dual 2.5G i226, 4G/5G B-Key + Micro-SIM, watchdog.
View →TOP800B
Core Ultra 5/7 · 28W
HDMI 2.1 8K output, dual 2.5G i226-V, 96GB DDR5.
View →
Not sure which board?
Send the enclosure size and workload — we’ll shortlist the models.
Get help →Questions
Mini-ITX, answered
Expansion, mostly: a real PCIe 4.0 x16 or x4 slot, up to six COM ports with RS232/485 select, dual 2.5G LAN, and wireless combos (WiFi + 4G/5G) without stacking dongles. If your workload touches more than one of those, the cost of a quarter-size adapter shelf usually exceeds a Mini-ITX board.
Yes. Most boards take WiFi/BT in the M.2 E-Key slot; the TOP600B and TOP800B add a B-Key slot with Micro-SIM for 4G/5G. Check the model page's expansion rows for the exact combination.
Yes — several Mini-ITX boards carry 24-bit dual-channel LVDS at up to 1920×1200 and 120Hz refresh (TIM600B, TIM800B, TMIA70B), with eDP or HDMI available on the same board. The LVDS/eDP pairing is selectable per board revision; tell us your panel and we’ll match it.
