Mini-ITX · 170×170 MM · R101

ITXD20B Industrial Motherboard

Name: ITXD20B Industrial Motherboard
Brand: GEOLiNK
SKU: ITXD20B

A compact 170 × 170 mm board built around the domestic Phytium D2000/8 — eight cores at 2.3 GHz with X100 graphics, six serial ports, dual LAN and two CAN buses, shipping with Kylin OS (KOS) support for sovereignty-track deployments.

Get a Quote Compare Mini-ITX

ITXD20B · Quick Specs

CPU	Phytium D2000/8, 2.3GHz, 40W
Memory	2× DDR4 SO-DIMM, 64GB
Display	HDMI 2.0 + VGA + LVDS/eDP
Network	2× RTL8111H
Power	DC 12V, 100–200W
Temperature	−20/+60°C operating

PHYTIUM D2000/8 · 6×COM RS232/422/485 · 2×CAN · DUAL RTL8111H · KYLIN OS · SAMPLE MOQ 1 PC

Why ITXD20B

Four things to know about this board

Platform

Domestic Phytium silicon

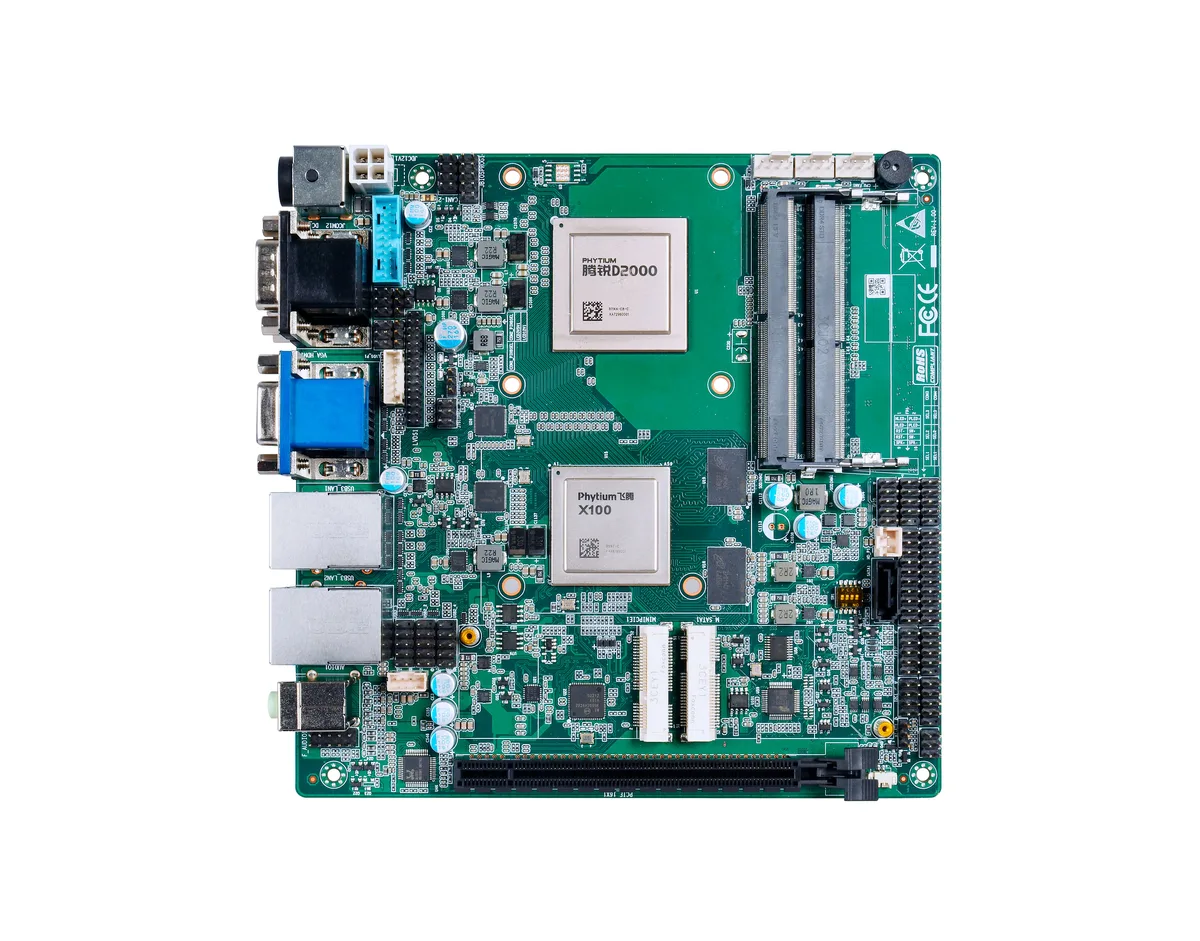

Onboard Phytium D2000/8 (Standard Edition) at 2.3GHz with paired X100 graphics — an 8-core architecture for supply-chain independent projects.

Field Bus

Six COM plus 2× CAN

COM1/2 as rear DB9 RS232, COM3/4 RS232/422/485 selectable, COM5/6 RS232 — with 2× CAN and I2C for vehicle- and plant-style buses.

Software

Kylin OS (KOS)

Supported and shipped for the Kylin operating system — specify KOS for the board, BIOS and integration path as one package.

Connectivity

Dual LAN, wireless ready

Two RTL8111H gigabit ports with WiFi, 4G/5G and Bluetooth expansion on top — plus mSATA and SATA 3.0 storage options.

Full Specifications

Technical data

Per the ITXD20B-R101 English datasheet. All values follow the sheet; standard configuration is listed first where jumpers allow a choice.

CPU	Onboard Phytium D2000/8 (Standard Edition) · 2.3GHz · TDP 40W · paired X100 graphics · EFI BIOS
Memory	2× DDR4 SO-DIMM · 2666 MHz · up to 64 GB
Storage	1× mSATA · 1× SATA 3.0 (2-pin 5V power)
Display	1× HDMI 2.0 · 1× VGA (max 1280×1024@60Hz) · 1× LVDS/eDP (LVDS solution: single 1920×1080 panel)
Rear I/O	DC JACK · 2× DB9 COM · HDMI · VGA · 2× LAN · 4× USB 3.0 · line out + mic in
Serial	COM1/2 as DB9 RS232 (Pin 9 selectable RI / 5V / 12V) · COM3/4 RS232/422/485 · COM5/6 RS232
Internal I/O	3× JUSB 2.0 headers · 1× JUSB 3.0 header · F_Audio · speaker 8Ω 3W ×2 · 3× 4-pin PWM fan (12V)
Bus & Control	2× CAN · 1× I2C · 8-bit GPIO
Expansion	1× PCIe x16 · 1× MiniPCIe · WiFi / 4G / 5G / Bluetooth expansion
Network	2× RTL8111H
Power	Standard input DC 12V · power range 100–200W

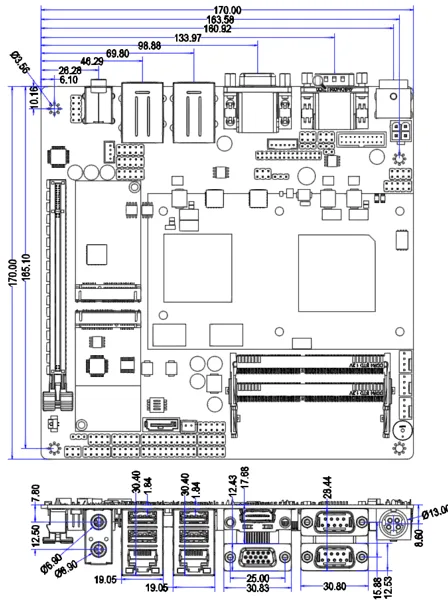

Dimensions / Weight	170 × 170 mm · approx. 150 g without heatsink / 250 g with heatsink
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage
Software	Kylin OS (KOS)

Where It Fits

Compact integrated systems, quietly

The ITXD20B targets compact, highly integrated mini computer systems where the whole unit has to sit close to the user. The card’s own application list says it plainly: industrial control, TV cabinets, home theater computers and smart home devices.

TV cabinet & home theater boxes: low power draw and small footprint suit media consoles where fan noise and space are both limited.
Smart home hubs: 6× COM plus 2× CAN for KNX-style and serial building controls, dual LAN to separate home and uplink traffic.
Kylin-based control points: for projects that must run KOS, the board ships with the OS support baked into the spec.
