Mini-ITX · 170×170 MM · LGA1700 SOCKET

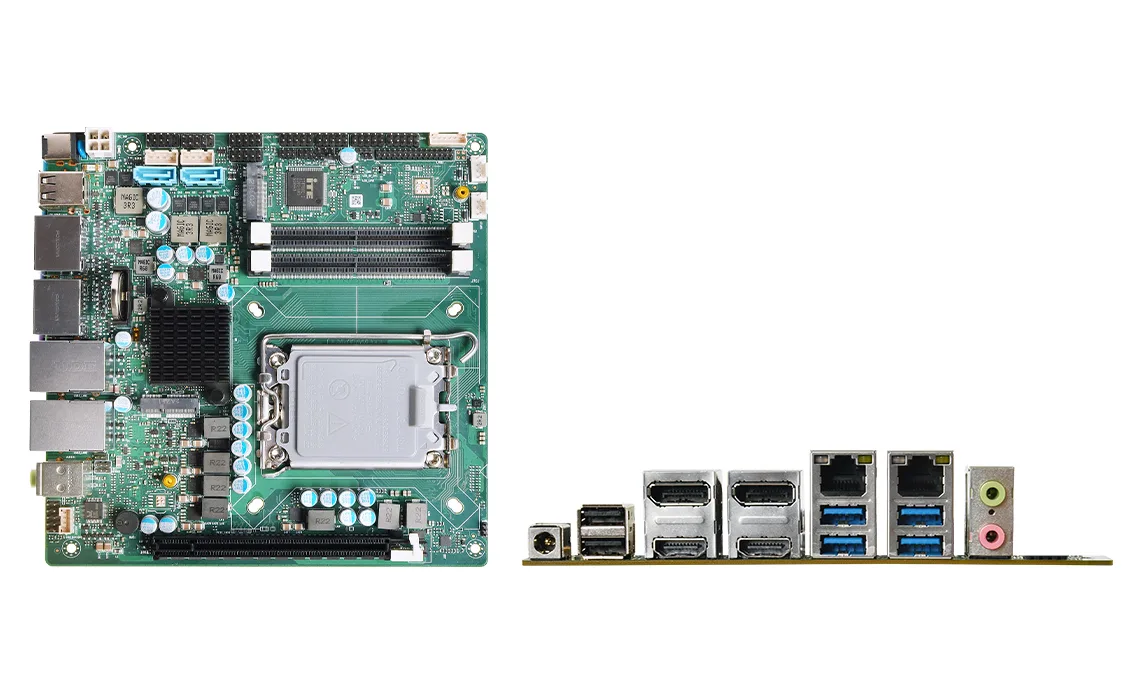

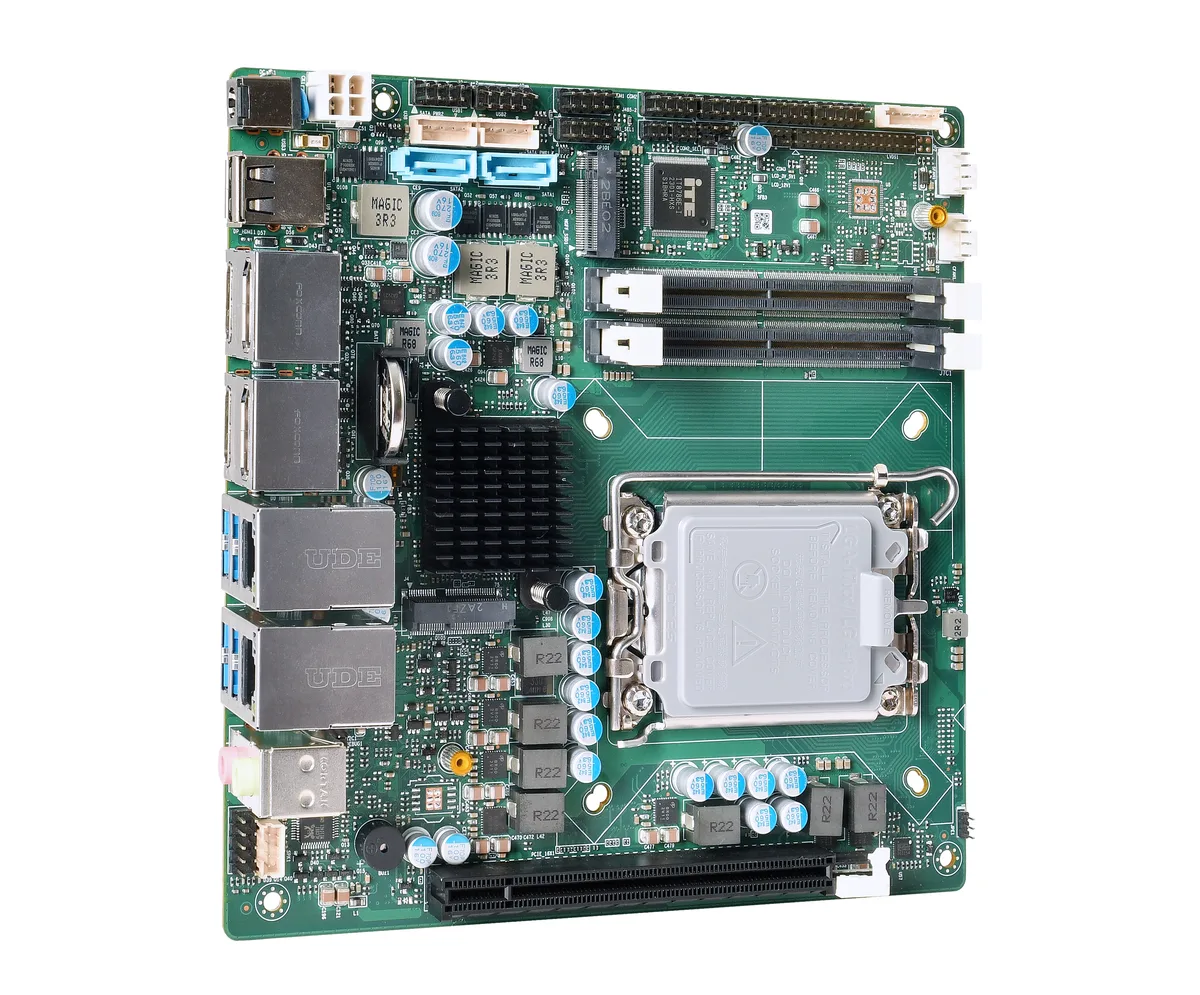

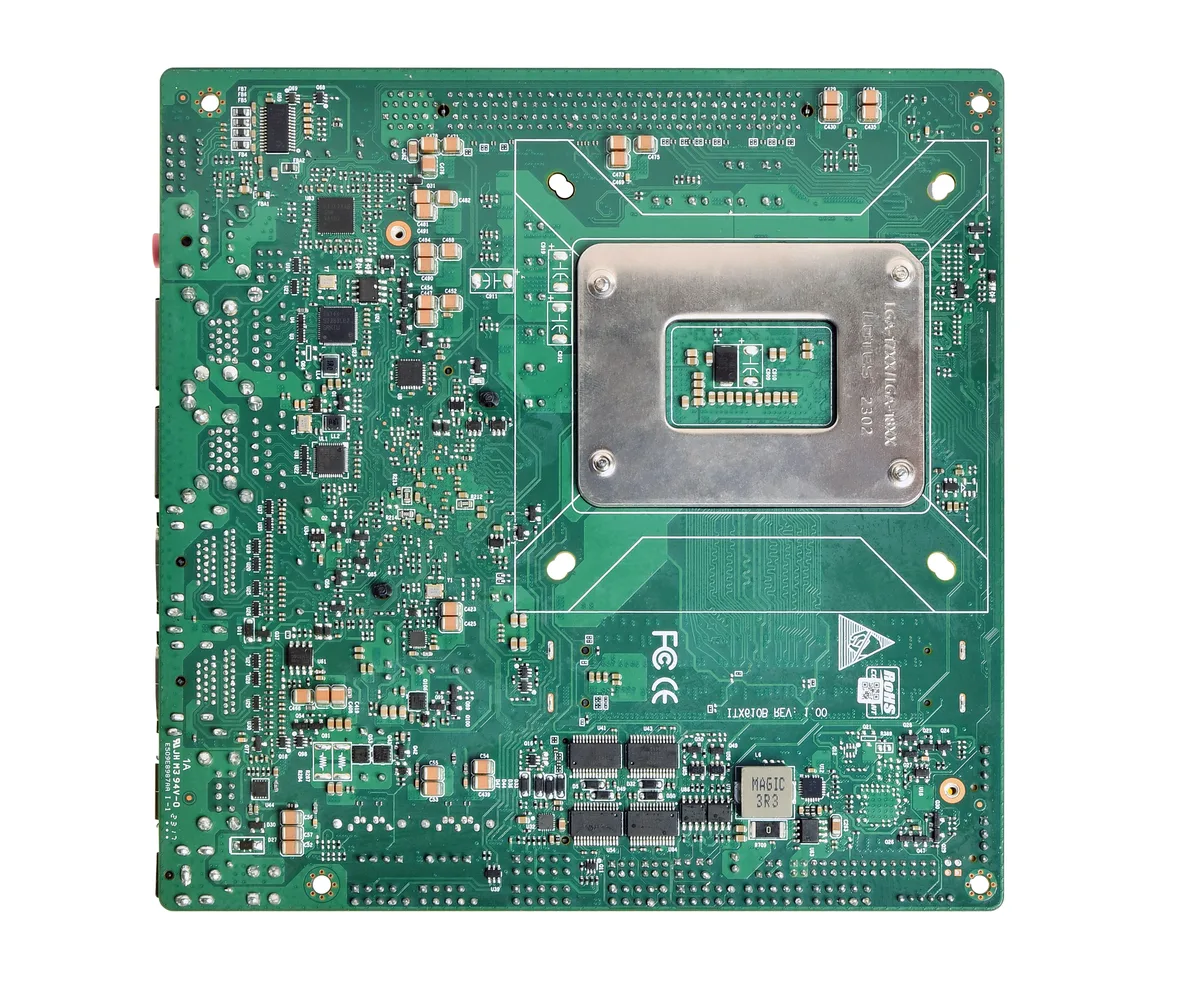

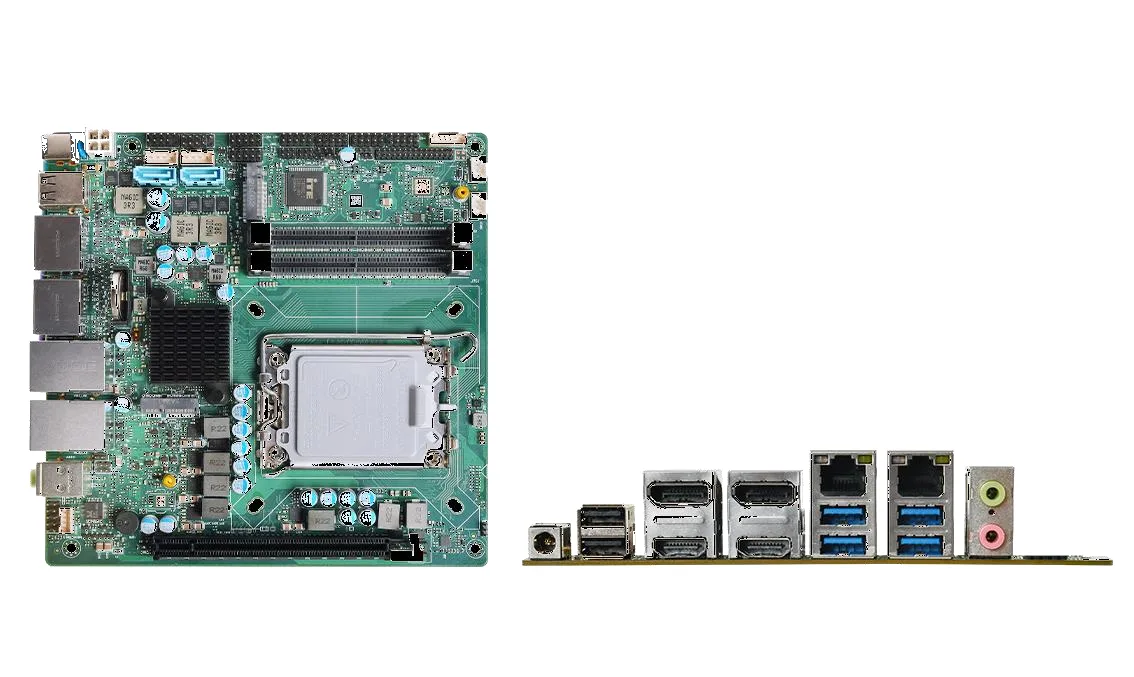

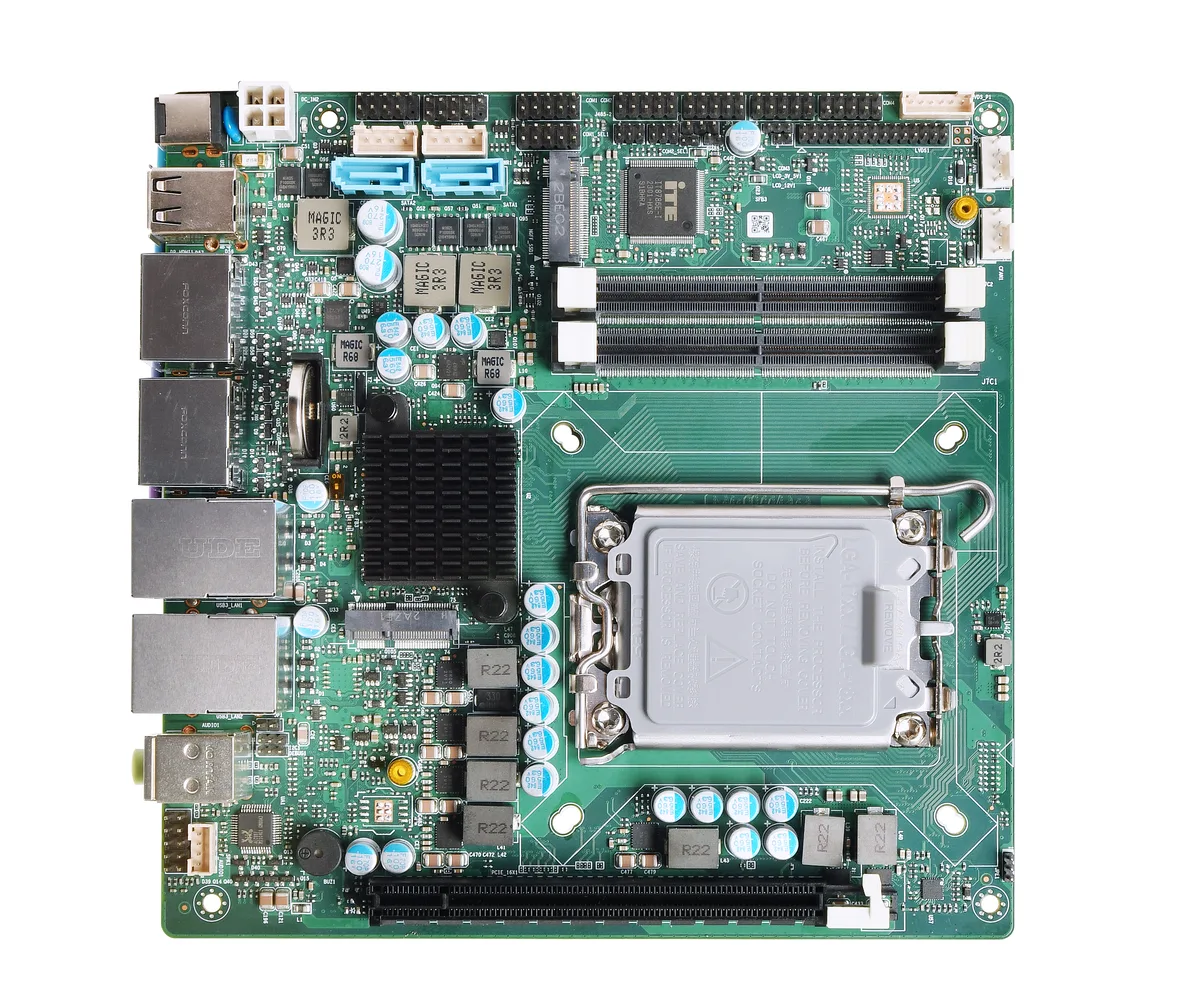

ITX660B Industrial Motherboard

Name: ITX660B Industrial Motherboard
Brand: GEOLiNK
SKU: ITX660B

A socketed 170 × 170 mm board with desktop-class reach: 12th, 13th-S and 14th Gen Core on LGA1700 at 65 W over an H610, B660 or H670 platform — HDMI 2.0, DP 1.4 and VGA out, six COM channels, dual GbE and an ATX-connector layout built for chassis-style builds. For integrators who want to choose the processor after the board is specced.

Get a Quote Compare Mini-ITX

ITX660B · Quick Specs

CPU	LGA1700 Core 12th–14th Gen, 65W
Memory	2× DDR5 SO-DIMM, 64GB
Display	HDMI 2.0 + DP 1.4 (4K@60) + VGA
Network	2× RTL8111H GbE
Power	ATX 24+4-Pin, 200W+
Temperature	−20/+60°C operating

LGA1700 · H610/B660/H670 · HDMI+DP+VGA · PCIE X16 · DUAL GBE · ATX 24+4-PIN · SAMPLE MOQ 1 PC

Why ITX660B

Four reasons to keep the socket

Socket

Change the CPU, not the board

LGA1700 accepts 12th, 13th-S and 14th Gen Core at 65W — swap SKUs on the bench or in the field, EFI BIOS, no BGA rework.

Display

HDMI, DP and VGA, one board

1× HDMI 2.0 and 1× DP 1.4 both at 4096×2160@60Hz, plus a residual VGA output for legacy machine displays — three outputs without an adapter.

Expansion

A real x16 slot

A full PCIe x16 slot for frame grabbers, capture cards or accelerators — the slot most compact boards drop — plus M.2 E-Key WiFi/BT.

Industrial I/O

Dual GbE, six COM

2× RTL8111H GbE, DB9 COM1 plus five COM headers with COM2 selectable to RS422/485, and optional external TPM 2.0 for control-room duty.

Full Specifications

Technical data

Per the ITX660B English specification sheet. Values follow the card exactly; where a choice exists (chipset, serial mode), the standard build is listed first.

CPU	LGA1700 socket · Intel Core 12th Gen / 13th Gen-S / 14th Gen · 65W TDP · EFI BIOS
Chipset	H610 (standard) · B660 / H670 (optional)
Memory	2× DDR5 SO-DIMM · up to 64 GB
Storage	1× M.2 M-Key 2280 (NVMe PCIe 3.0 x4 default · SATA 3.0 optional) · 4× SATA 3.0 (no RAID on H610 · RAID 0/1/5/10 on B660/H670)
Display	1× HDMI 2.0 (4096×2160@60Hz) · 1× DP 1.4 (4096×2160@60Hz) · 1× VGA
Network	2× RTL8111H GbE controllers
Rear I/O	DB9 COM1 (RS232, 5V/12V selectable) · VGA · HDMI 2.0 · DP 1.4 · 4× USB 2.0 · 2× (LAN + 2× USB 3.2) · line out + mic in (2-hole audio jack)
Expansion	1× PCIe x16 · 1× M.2 E-Key (PCIe 3.0 / USB 2.0, WiFi/BT)
Serial	DB9 COM1 (RS232, 5V/12V selectable) · 5× COM headers, 2×5-pin 2.00mm · COM2 RS422/RS485 jumper-selectable · COM3–6 RS232
Other I/O	USB 3.0 header group (2×) · USB 2.0 header group (2×) · 1 vertical USB 2.0 internal · TPM 2.0 optional (external) · 4-pin PWM CPU fan + 4-pin system fan
Power	ATX 24+4-Pin · 200W and above (subject to the build and environment)
Dimensions / Weight	170 × 170 mm · approx. 400 g
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Terminals, kiosks and acquisition racks

The ITX660B earns its slot where one board has to drive user-facing screens and talk to field devices at the same time. Typical deployments:

Self-service kiosks: multiple display outputs for user-facing and maintenance screens, with the second LAN separating the payment network from remote management.
Data acquisition: DB9 COM1 plus five COM headers, with COM2 selectable to RS422/485 for meter-style field devices — no external USB converters.
Inspection benches: the PCIe x16 slot carries a frame grabber, while HDMI 2.0 or DP 1.4 reaches the operator panel.

Self-service terminal at a retail point of sale

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
Chipset	H610	B660 / H670
Serial ports	COM2 RS422/RS485, COM1/3–6 RS232	No serial fit
M.2 M-Key protocol	NVMe PCIe 3.0 x4	SATA 3.0
Security	TPM 2.0 off	External TPM 2.0
CPU	Selectable at order	12th / 13th-S / 14th Gen Core SKUs
