Mini-ITX · 170×170 MM · R100 / R102

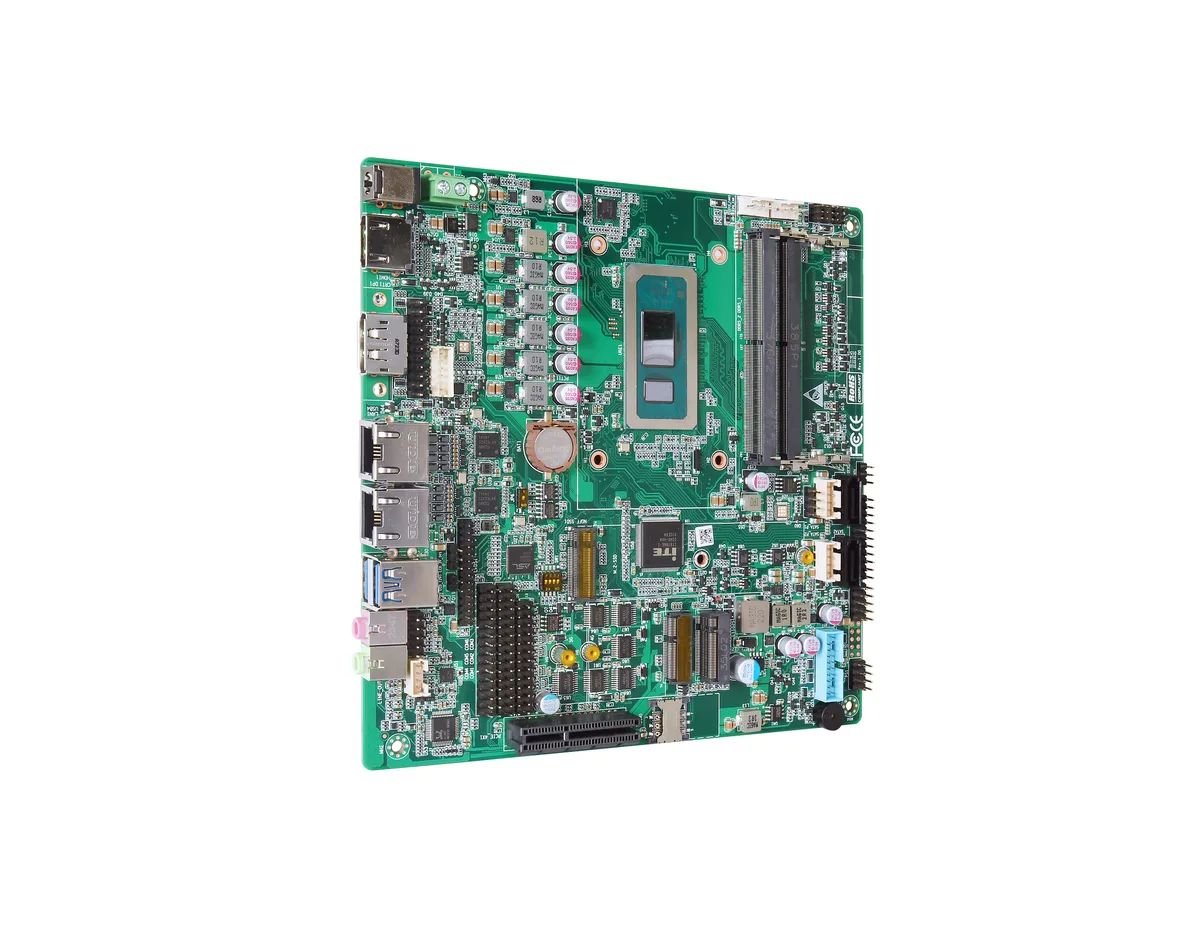

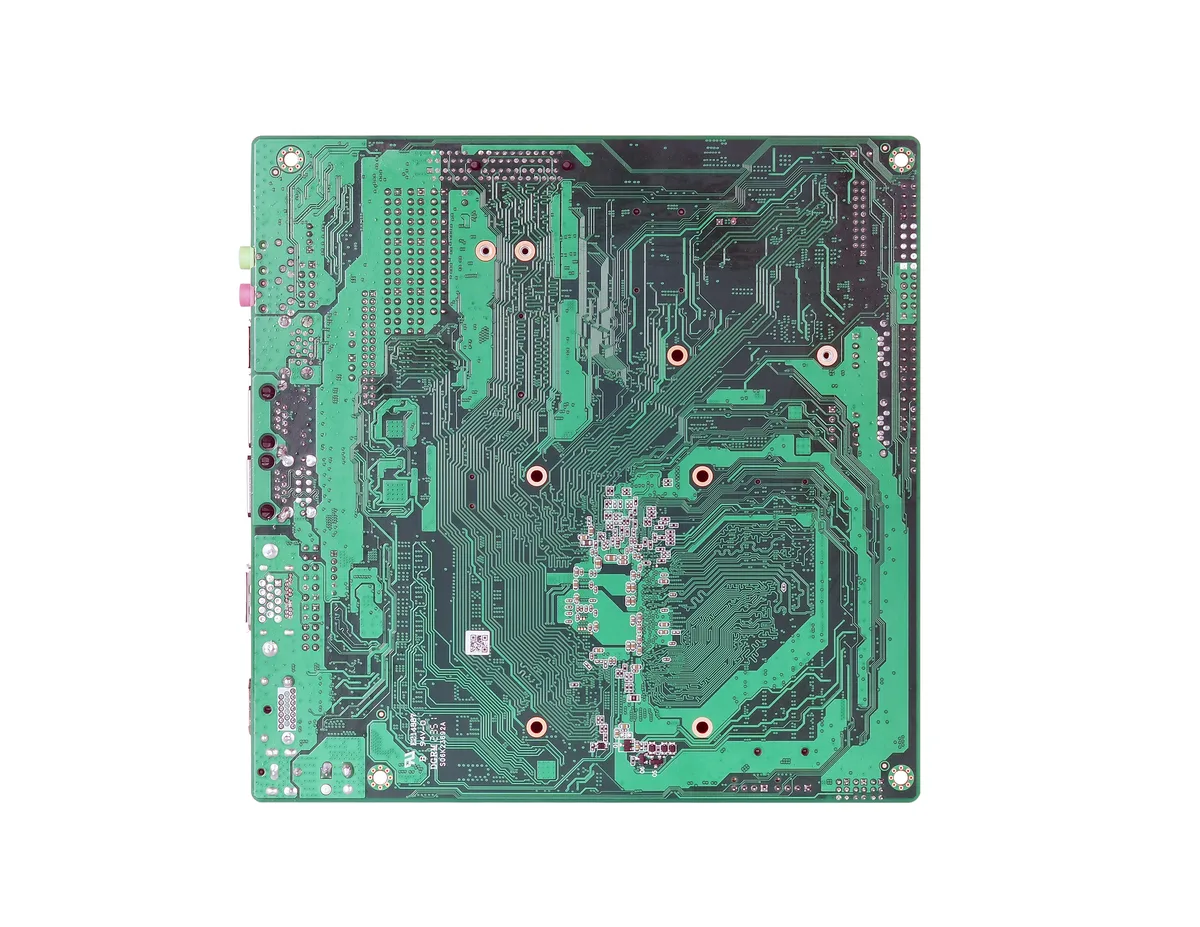

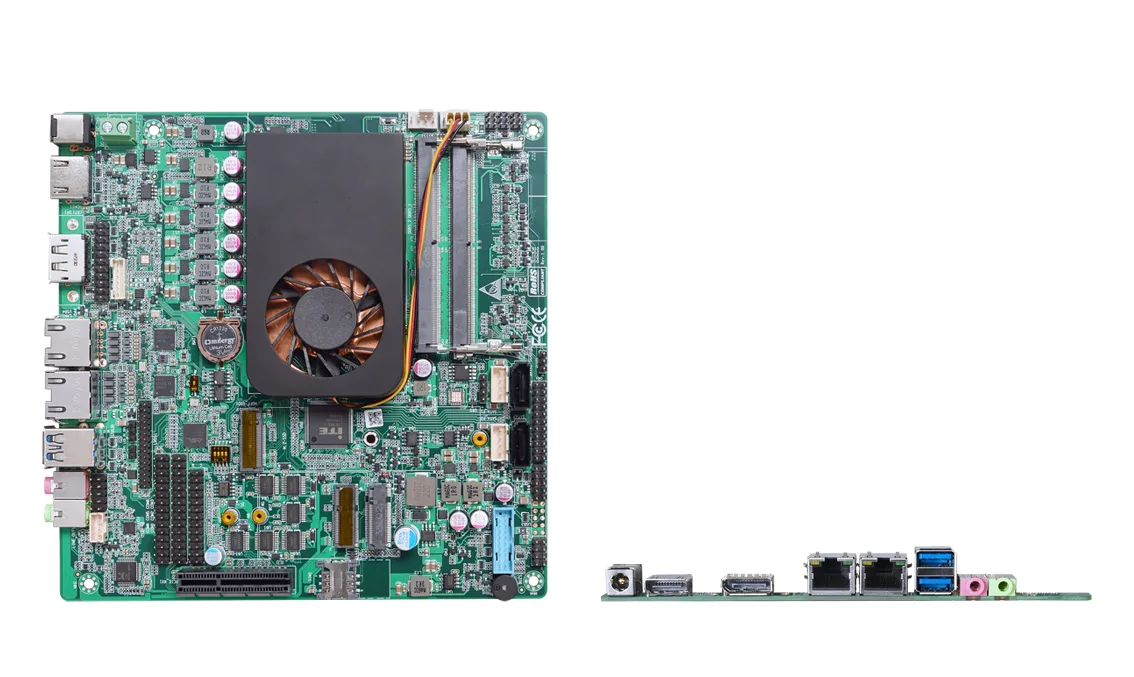

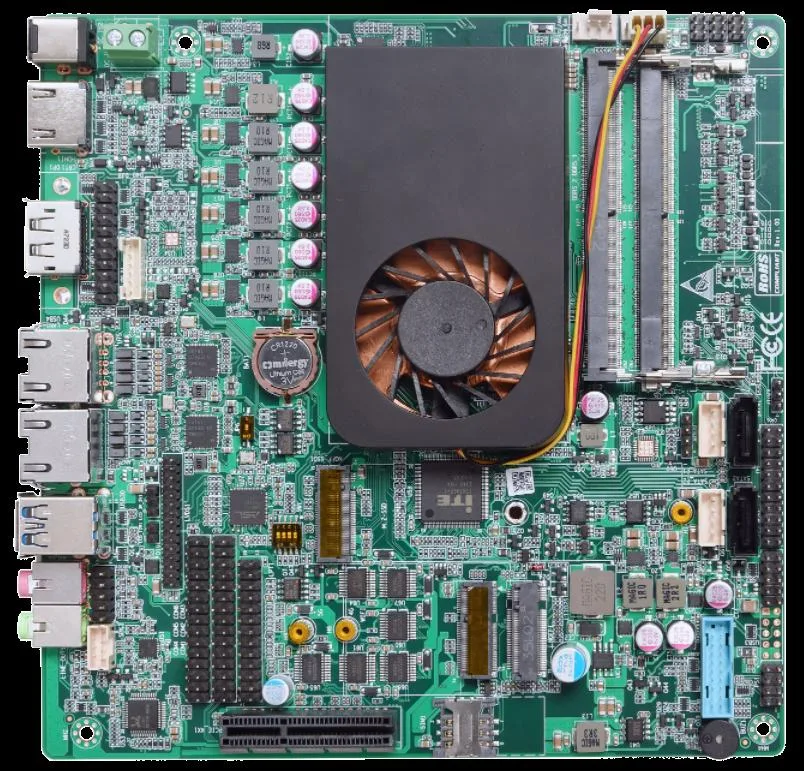

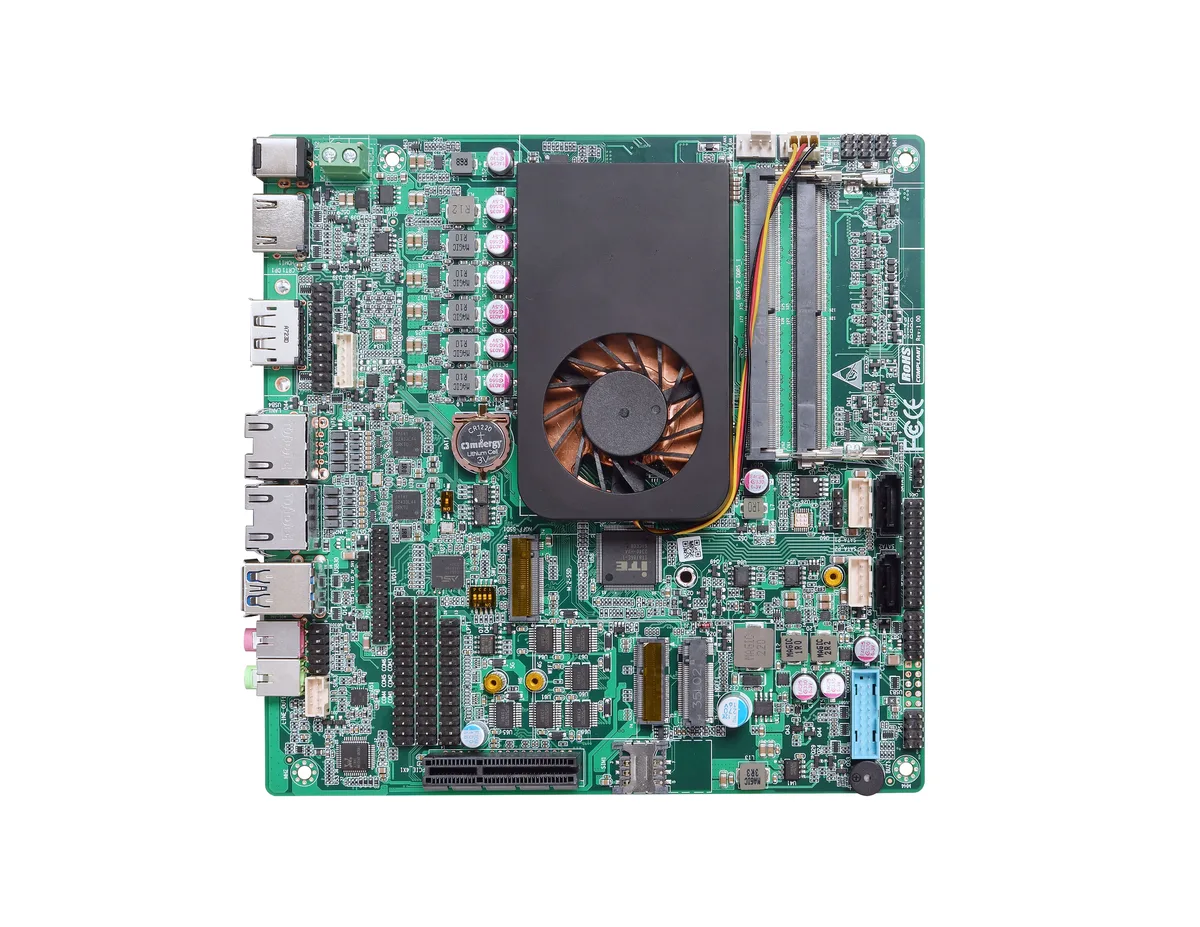

TOP600B Industrial Motherboard

Name: TOP600B Industrial Motherboard
Brand: GEOLiNK
SKU: TOP600B

Onboard Alder Lake-U/-P and Raptor Lake-U/-P at 28 W with the gateway toolkit: dual Intel i226 2.5G ports, a 4G/5G B-Key slot with Micro-SIM, six serial ports and a code-ready watchdog — fanless, wide-temp, and at home in a remote cabinet.

Get a Quote Compare Mini-ITX

TOP600B · Quick Specs

CPU	Onboard Alder/Raptor Lake U-P, 28W
Memory	2× DDR5 SO-DIMM, 64GB
Display	HDMI 2.0 + VGA/DP + LVDS
Network	2× Intel i226 2.5G
Power	DC 12–19V, 90W+
Temperature	−20/+60°C operating

ALDER/RAPTOR U-P 28W · DUAL 2.5G I226 · B-KEY 4G/5G + MICRO SIM · 6×COM · DC 12–19V · SAMPLE MOQ 1 PC

Why TOP600B

Four reasons the field techs like it

Networking

Dual 2.5G plus cellular

Two Intel i226 2.5G ports with single/dual selection, and a B-Key 4G/5G slot with Micro-SIM — primary plus failover without a USB modem.

Supervision

Watchdog with sample code

A 0–255 second watchdog that ships with sample code — implement auto-recovery in your firmware instead of re-inventing the timer.

Thermals

28W, fanless by design

Alder/Raptor Lake-U/P at 28W across six i3/i5/i7 SKUs — passive cooling and wide-temp operation for sealed enclosures.

Legacy

Six COM, LPT or GPIO

COM1/2 RS232/485 with COM3–6 RS232, plus LPT or 16-bit GPIO and PS/2 — industrial protocols without adapters.

Full Specifications

Technical data

Per the TOP600B English specification card (revisions R100 / R102). Values follow the card exactly; selectable pairs are noted as such.

CPU	Onboard Intel 12th Gen Alder Lake-U/-P · 13th Gen Raptor Lake-U/-P · 28W TDP · i3-1215U / i5-1235U / i7-1255U · i3-1220P / i5-1240P / i7-1260P · UEFI BIOS
Memory	2× DDR5 SO-DIMM · up to 64 GB
Storage	2× SATA 3.0 (2× large 4-pin SATA power) · 1× M.2 2280 (PCIe 4.0 x4 default)
Display	1× HDMI 2.0 (4K@60Hz) · VGA / DP 1.4 (4K@60Hz), selectable · JVGA pin header · 24-bit dual-channel LVDS 1920×1200 · eDP 4K@60Hz (LVDS or eDP, selectable)
Network	2× Intel i226 LAN (single or dual, selectable) · M.2 E-Key (PCIe + USB 2.0, WiFi/BT) · M.2 B-Key (USB 2.0 default, USB 3.0 reserved · 4G/5G) · Micro-SIM slot
Serial	COM1/2 RS232/485 (selectable) · COM3/4/5/6 RS232
USB Headers	1× 2×10-pin (2× USB 3.0; 4G/5G occupies one) · 1× 2×5-pin (2× USB 2.0) · 1× 2×5-pin (1× USB 2.0) · shared USB 2.0 as pin header in dual-LAN configuration
Other I/O	LPT 2×13-pin · 8-bit GPIO · LPT / 16-bit GPIO selectable (default LPT) · PS/2 2×4-pin · F_Audio · speaker 3W ×2 · watchdog 0–255 s with sample code
Expansion	1× PCIe 4.0 x4 · TPM 2.0 (optional)
Power	DC 12–19V · 90W and above (per application environment)

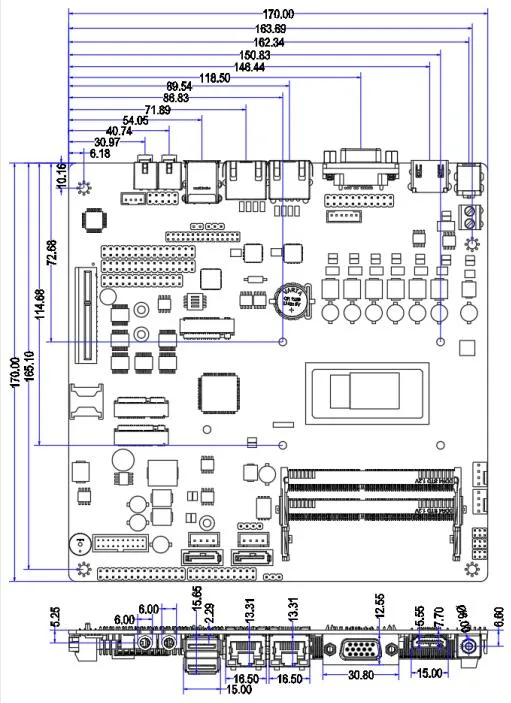

Dimensions / Weight	170 × 170 mm · 230 g (excluding heatsink)
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage
Software	Windows 11 · Windows 10 · Linux

Where It Fits

Gateways and unattended sites

The TOP600B is built for machines that stay on and stay reachable: dual wired ports, a cellular slot and a watchdog that pulls the system back from a hang. Typical deployments:

Communications gateways: dual 2.5G for field and management VLANs, 4G/5G B-Key as the uplink when the site has no wired backbone.
Remote automation: wide-temperature DC 12–19V operation in enclosures with marginal cooling, watchdog guarding unattended restarts.
Data collection points: 6× COM with RS232/485 and LPT or GPIO for legacy instrument strings and local control lines.

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
CPU SKU	i5-1235U (28W U-series)	i3-1215U · i7-1255U · i3-1220P · i5-1240P · i7-1260P (P-series)
LAN	Dual Intel i226 2.5G	Single LAN
Video out	VGA	DP 1.4 (4K@60Hz), selectable
Panel out	24-bit dual-channel LVDS (1920×1200)	eDP 4K@60Hz, selectable
Utility port	LPT	16-bit GPIO, selectable
Security	TPM 2.0 off	TPM 2.0 module
Serial COM1/2	RS232	RS485 (selectable)
