2.5-Inch SBC · 100×72 MM · R102

AD742A Industrial Motherboard

Name: AD742A Industrial Motherboard
Brand: GEOLiNK
SKU: AD742A

Onboard Intel Alder Lake-N or Twin Lake-N150 with soldered LPDDR5 up to 16 GB, one Intel i226-V 2.5G port with optional PoE, and a DC 12V / 60W profile — the AD742A fits inside a tool, a panel or a bedside device without redesigning the enclosure around it.

Get a Quote Compare 2.5-inch

AD742A · Quick Specs

CPU	Onboard Alder Lake-N / Twin Lake-N150
Memory	Onboard LPDDR5, up to 16GB
Display	HDMI 2.0 4K@60Hz · LVDS/eDP
Network	1× Intel i226-V 2.5G · PoE opt.
Power	DC 12V, 60W
Temperature	−20/+60°C operating

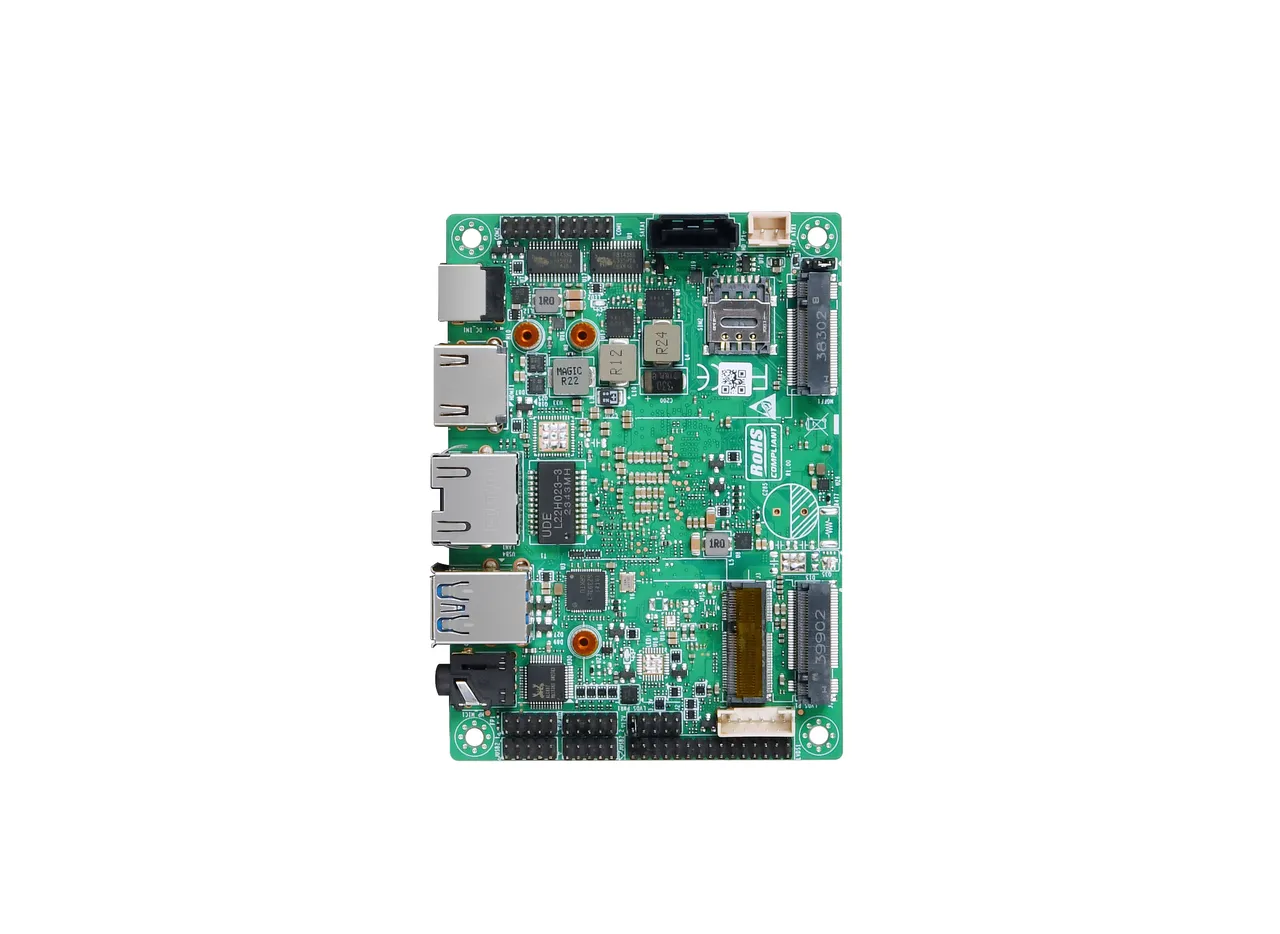

AD742A 2.5-inch industrial motherboard top view

I226-V 2.5G · POE OPT · LPDDR5 UP TO 16GB · DC 12V / 60W · SAMPLE MOQ 1 PC

Why AD742A

Four reasons it disappears into your build

The quick-spec summary leaves out the choices that make this board easy to integrate — here is what you should ask about at order time.

PoE

One cable, data and power

Optional PoE on the i226-V port lets the AD742A feed a camera or sensor over the same Ethernet run — one power supply fewer in the cabinet.

Memory

LPDDR5, soldered down

Up to 16GB without a socket. No DIMM contacts to fret under vibration, and the memory bus is laid out to keep signal integrity at 100×72 mm.

Serial

2× COM, three modes

Both COM ports are selectable RS232 / RS422 / RS485, so the same board talks to a PLC on one port and a reader on the other.

Platform

Alder Lake-N to N150

Choose N100, N305 or Twin Lake-N150 with the fan fitted or optional — EFI BIOS and Windows 10/11 plus Linux keep the software stack predictable.

Full Specifications

Technical data

Per the AD742A English specification sheet (revision R102). Every parameter can be verified against the datasheet on request.

CPU	Onboard Intel Alder Lake-N series / Twin Lake-N150 series · optional N100 / N305 / N150 · active fan cooling (fan optional) · EFI BIOS
Memory	Onboard LPDDR5 (soldered) · up to 16 GB
Storage	1× M.2 M-Key 2242 (PCIe 3.0 x2) · 1× SATA 3.0 with 2-pin power connector
Display	1× HDMI 2.0 (4K@60Hz) · 1× LVDS/eDP (optional)
Network	1× Intel i226-V 2.5G LAN · PoE optional · WiFi / 4G / 5G / Bluetooth expansion supported

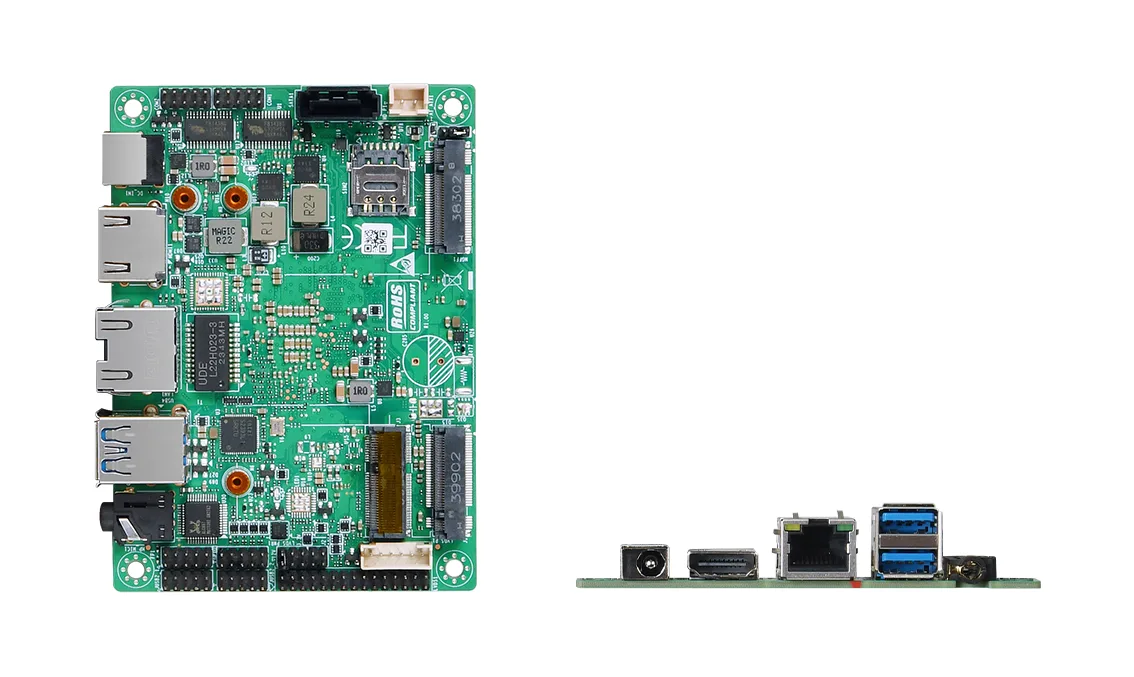

USB	2× USB 3.2 rear · 2× JUSB2.0 headers · rear audio jack
Serial	2× COM · RS232 / RS422 / RS485 selectable
Other I/O	8-bit GPIO · 1× 4-pin PWM CPU fan header · external TPM 2.0 (optional, not fitted by default)
Power	DC 12V input · 60W

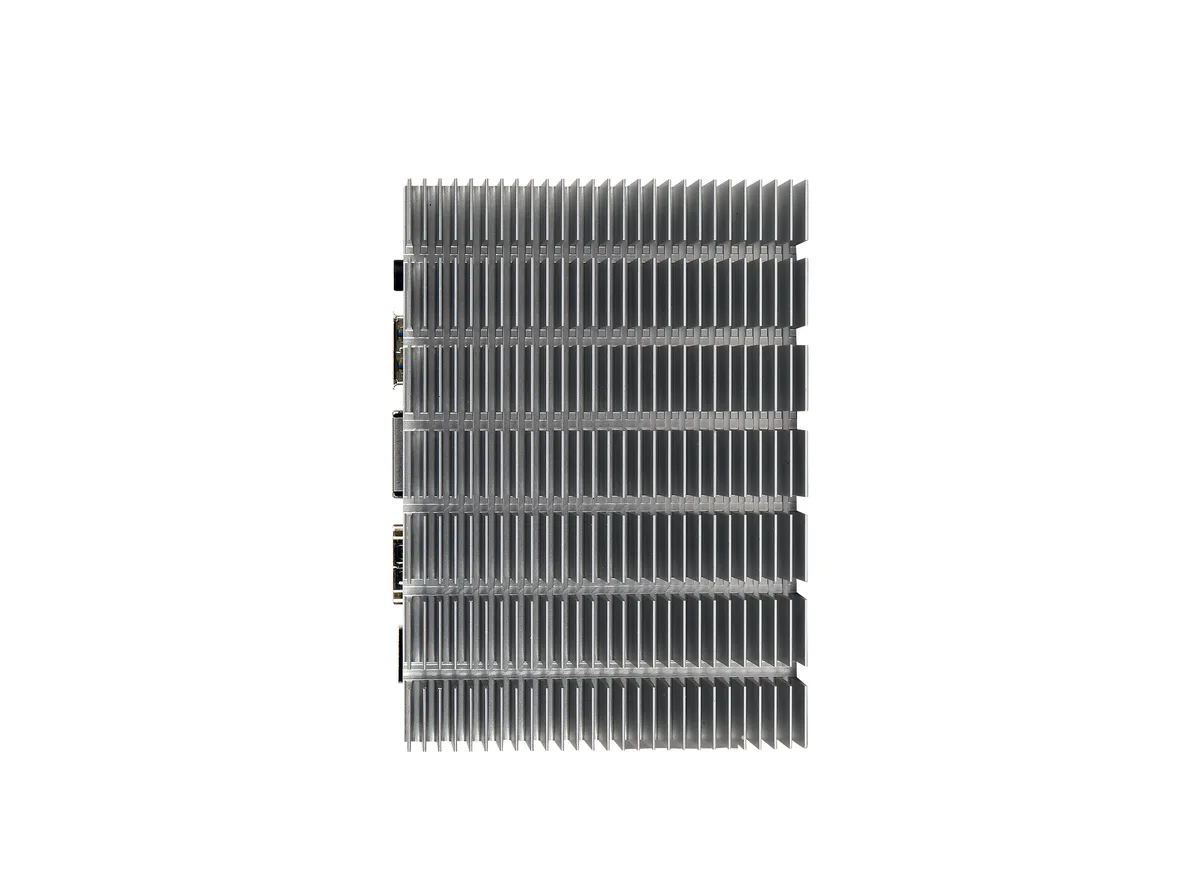

Dimensions	100 × 72 mm · approx. 100 g without heatsink / approx. 220 g with heatsink
Chassis	Mates with the Q-BOX-S5 system
Environment	−20°C to +60°C operating (5–90% RH) · −40°C to +85°C storage (5–90% RH)
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Embedded AI and IoT terminals

The AD742A is specified for products where the casing decides the size and the board has to deliver on power, cooling and a modest I/O count. Typical deployments:

Emerging AI / IoT nodes: vision-assisted tools and sensor-fusion gateways running inference-adjacent workloads on N150 with the fan option tuned to the airflow your chassis allows.
Industrial control: two multi-mode COM ports for PLC and instrument links, 8-bit GPIO for status lamps and buttons, and active cooling that keeps CPU load predictable in a warm cabinet.
Medical equipment: a 60W DC footprint that fits bedside and treatment-room devices, with soldered memory that survives transport and handling without DIMM reseating.

Edge AI camera inspecting an industrial line

Configuration

Ordering options

Options are agreed at order time against a standard base board — the AD742A ships with the CPU, memory and panel I/O you select.

Option	Standard	Optional
CPU platform	Alder Lake-N (onboard)	Twin Lake-N150 · N100 · N305 · N150
Cooling	Active fan fitted	Fan optional on selected SKUs
Display	HDMI 2.0 4K@60Hz	+ LVDS / eDP panel output
PoE	Off	PoE on the i226-V LAN port
Security	TPM 2.0 not fitted	External TPM 2.0 module
System	Board only	Q-BOX-S5 chassis system
