2.5-Inch SBC · 100×72 MM · R110

FTEQ20A Industrial Motherboard

Name: FTEQ20A Industrial Motherboard
Brand: GEOLiNK
SKU: FTEQ20A

The domestic-platform member of the 2.5-inch family: a Phytium Tenglong E2000Q (2× FTC664 + 2× FTC310) boots Kylin from onboard LPDDR4, drives HDMI, eDP and LVDS panels at 1080p from a DC 12V input — wide-temperature automation with a China-based CPU and OS stack.

Get a Quote Compare 2.5-inch

FTEQ20A · Quick Specs

CPU	Phytium Tenglong E2000Q, 4-core
Memory	Onboard LPDDR4, 4 / 8GB
Display	HDMI · eDP · LVDS, 1080p@60Hz
Network	1× RJ45 Ethernet
Power	DC 12V · ATX
Temperature	−20/+60°C operating

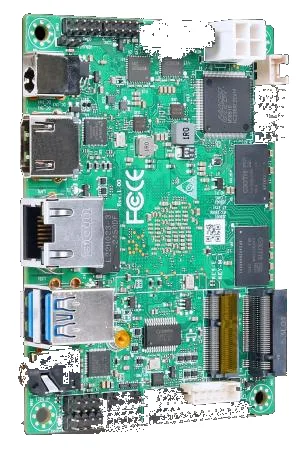

FTEQ20A 2.5-inch industrial motherboard render, top view

PHYTIUM E2000Q · LPDDR4 4/8GB · CAN×2 · DC 12V · SAMPLE MOQ 1 PC

Why FTEQ20A

Four reasons to read the CPU label twice

Most of the 2.5-inch line is Intel-platform — the FTEQ20A exists for the projects that need a Phytium processor and domestic OS support.

CPU

Phytium E2000Q

4 cores across two families — 2× FTC664 plus 2× FTC310 — under a Phytium UEFI BIOS, with memory and OS from the same domestic ecosystem.

Bus

2× CAN + I2C

Two JCAN1 headers put dual CAN channels on the board, and J_I2C adds a sensor bus — machine and motion wiring without protocol adapters.

Panel

HDMI, eDP, LVDS

All three outputs run 1920×1080@60Hz; the LVDS pair is dual-channel 24-bit with panel voltage selectable at 12V / 5V / 3.3V — matched to panel inventory.

Power

DC 12V input

Powered from the 5.5×2.5 mm jack or the DC_IN2 / ATX header, with a 255-level watchdog — easy to cool inside a sealed cabinet.

Full Specifications

Technical data

Per the FTEQ20A English specification sheet (revision R110, 202512.22). Parameters can be verified against the datasheet on request.

CPU	Phytium Tenglong E2000Q · 4-core: 2× FTC664 + 2× FTC310 · Phytium UEFI BIOS
Memory	Onboard LPDDR4 · 4 GB / 8 GB (domestic memory, optional)
Storage	1× M.2 M-Key 2240 (PCIe 3.0 x2), 2242 option · 1× SATA 3.0 (2-pin 5V power)
Display	1× HDMI 1920×1080@60Hz · 1× eDP single-channel 1080p@60Hz · 1× LVDS dual-channel 24-bit 1080p@60Hz
Network	1× RJ45 Ethernet · M.2 E-Key (PCIe + USB 2.0) for WiFi/BT module
Serial	2× COM · RS232 / RS422 / RS485 · default RS232
USB	2× USB 3.0 rear · 2× JUSB2.0 headers (4× USB 2.0, 2×5-pin 2.0 mm)
Bus & headers	2× JCAN1 (2 CAN) · J_I2C · 8-ch GPIO (3.3V / 5V selectable) · LVDS_PWR panel voltage 12V / 5V / 3.3V · F_Panel · AT_ATX1 · JDEBUG1 · JBLK_CTL1 backlight key · JHDMI_PRO / JLVDS_PRO · BAT1 CR2032
Audio	Rear audio (Shenlei SN6140)
Power	DC 12V via 5.5×2.5 mm jack · DC_IN2 4-pin / ATX connector · watchdog 255 levels
Dimensions	100 × 72 mm · 2.5-inch form factor · weight TBD
Environment	−20°C to +60°C operating (5–90% RH, non-condensing) · −40°C to +85°C storage (5–90% RH, non-condensing)
Software	Kylin (Phytium-based)

Where It Fits

Domestic-stack automation and panels

The FTEQ20A targets machines and gateways that must run on a Phytium processor with Kylin — without giving up industrial I/O. Typical deployments:

Industrial panels: HDMI, eDP or dual-channel LVDS at 1080p with a hardware backlight-key header, so the panel’s own buttons stay in sync with the system.
Embedded gateways: two multi-mode COM ports and dual CAN reach machine buses directly, while the E-Key slot covers WiFi or BT uplink.
OEM / ODM projects: a compact 100×72 mm layout, debug log header and I2C bus make board-level tailoring practical for volume builds.

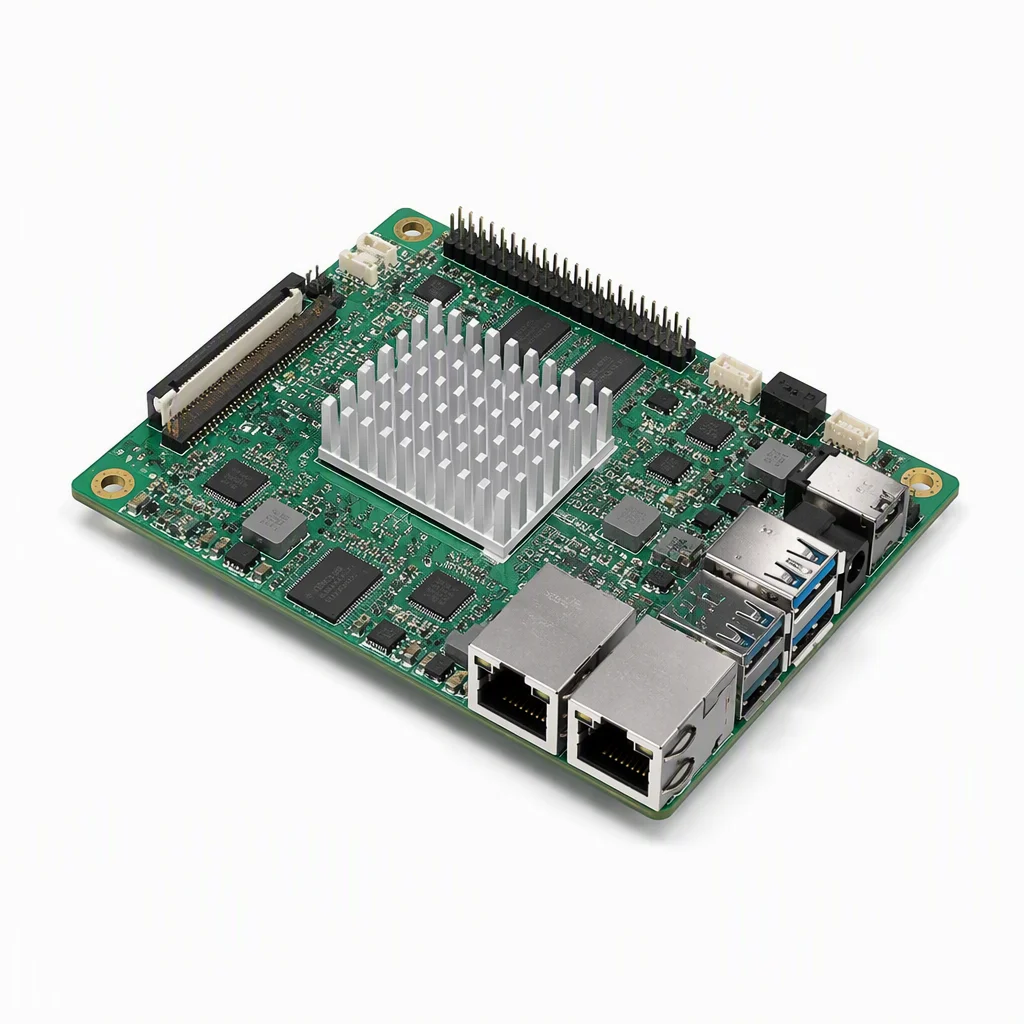

FTEQ20A industrial motherboard at an angle

Configuration

Ordering options

Memory, storage key and header-level settings are fixed at order time — the board arrives with the exact profile your application needs.

Option	Standard	Optional
Memory	Onboard LPDDR4 4GB	Onboard LPDDR4 8GB
Storage	M.2 M-Key 2240 (PCIe 3.0 x2)	M.2 M-Key 2242
Serial mode	RS232 (default)	RS422 / RS485 per port
GPIO level	3.3V	5V (resistor selectable)
Panel voltage	LVDS_PWR 3.3V	5V / 12V (LVDS_PWR header)
Power source	DC jack 12V	DC_IN2 4-pin / ATX connector
