UT1002AW Industrial Motherboard
The high-performance member of the 2.5-inch family: an Intel Core Ultra processor at 28W with soldered LPDDR5 up to 16GB, HDMI 2.1 at 4K@144Hz plus LVDS, an onboard Intel i226-V 2.5G port and dual M.2 slots for WiFi/BT and 4G/5G — 100×72 mm with DC 12V input for wide-temperature edge builds.
| CPU | Intel Core Ultra, 28W |
|---|---|
| Memory | Onboard LPDDR5, up to 16GB |
| Display | HDMI 2.1 4K@144Hz · LVDS 1080p |
| Network | 1× Intel i226-V 2.5G |
| Power | DC 12V, 120W adapter |
| Temperature | −20/+60°C operating |
CORE ULTRA 28W · LPDDR5 TO 16GB · HDMI 2.1 4K@144 · I226-V 2.5G · DC 12V
Why UT1002AW
Four things that make the 28W board the flagship
The UT1002AW takes the 2.5-inch footprint to the Core Ultra generation: a 28W processor with LPDDR5 soldered down, 4K-capable HDMI and a single 2.5G port — still built around DC 12V and the family’s 100×72 mm panel topology.
CPU
Core Ultra, 28W
The Intel Core Ultra series runs under an EFI BIOS at a 28W envelope — modern edge performance, integrated graphics and low-power memory in one die package.
Memory
LPDDR5, soldered down
A single onboard LPDDR5 die up to 16GB — no DIMM to reseat, no module tolerance; the memory bus survives shock, transport and vibration.
Display
HDMI 2.1 at 4K@144Hz
One HDMI 2.1 output drives 4K at 144Hz while an LVDS pair carries 1080p panels — signage and panel display from the same 100×72 mm board.
Network
i226-V 2.5G + two M.2
An Intel i226-V 2.5G port plus an E-Key slot for WiFi/BT and a B-Key slot for 4G/5G — wired and wireless radio without adapter clutter.
Full Specifications
Technical data
Per the UT1002A specification sheet (revision R110, 2025-09-23). Parameters can be verified against the original datasheet on request.
| CPU | Intel Core Ultra series · TDP 28W · EFI BIOS |
|---|---|
| Memory | Onboard single LPDDR5 die · up to 16 GB |
| Storage | 1× M.2 M-Key 2242 (PCIe 4.0 x2) |
| Display | 1× HDMI 2.1 4K@144Hz · 1× LVDS 1080p@60Hz |
| Network | 1× Intel i226-V 2.5G LAN · M.2 E-Key (PCIe + USB 2.0) for WiFi/BT · M.2 B-Key (USB 2.0 + USB 3.0) for 4G/5G |
| Serial | 2× COM · RS232 / RS485 · BIOS-selectable |
| USB | 2× USB 3.2 rear · 2× JUSB2.0 headers |
| Bus & headers | 8-bit GPIO · AT/ATX · 1× 4-pin PWM CPU fan · TPM 2.0 optional (external, default not fitted) · F_Panel |
| Audio | 1× audio (edge) |
| Power | DC 12V · 120W adapter or above |
| Dimensions | 100 × 72 mm · 2.5-inch form factor · approx. 74.2 g without heatsink |
| Environment | −20°C to +60°C operating (5–90% RH, non-condensing) · −40°C to +85°C storage (5–90% RH, non-condensing) |
| Software | Windows 10 · Windows 11 · Linux |
Where It Fits
High-performance edge and signage
The UT1002AW targets machines and gateways that need Core Ultra performance without giving up industrial I/O. Typical deployments:
- Industrial panels: HDMI 2.1 at 4K@144Hz or LVDS at 1080p from the same 100×72 mm board, with AT/ATX and a 4-pin PWM fan header for sealed cabinets.
- Embedded gateways: two BIOS-selectable RS232/RS485 ports with 8-bit GPIO reach machine buses, while the E-Key slot covers WiFi/BT and the B-Key slot covers 4G/5G.
- OEM / ODM projects: a compact 100×72 mm layout with 8 or 16GB memory, external TPM 2.0 and optional PoE makes board-level tailoring practical.
Configuration
Ordering options
CPU SKU, memory size and optional modules are fixed at order time — the board arrives with the exact profile your application needs.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | Core Ultra 28W class | i5-125U / i7-155U · i5-125H / i7-155H |
| Memory | Onboard DDR5 8GB | Onboard DDR5 16GB |
| TPM 2.0 | Not fitted (default) | External TPM 2.0 |
| PoE | Not fitted | PoE optional |
| OS image | Windows 10 | Windows 11 / Linux |
| Power source | DC 12V jack | AT/ATX header |
Product Views
More photos of the UT1002AW

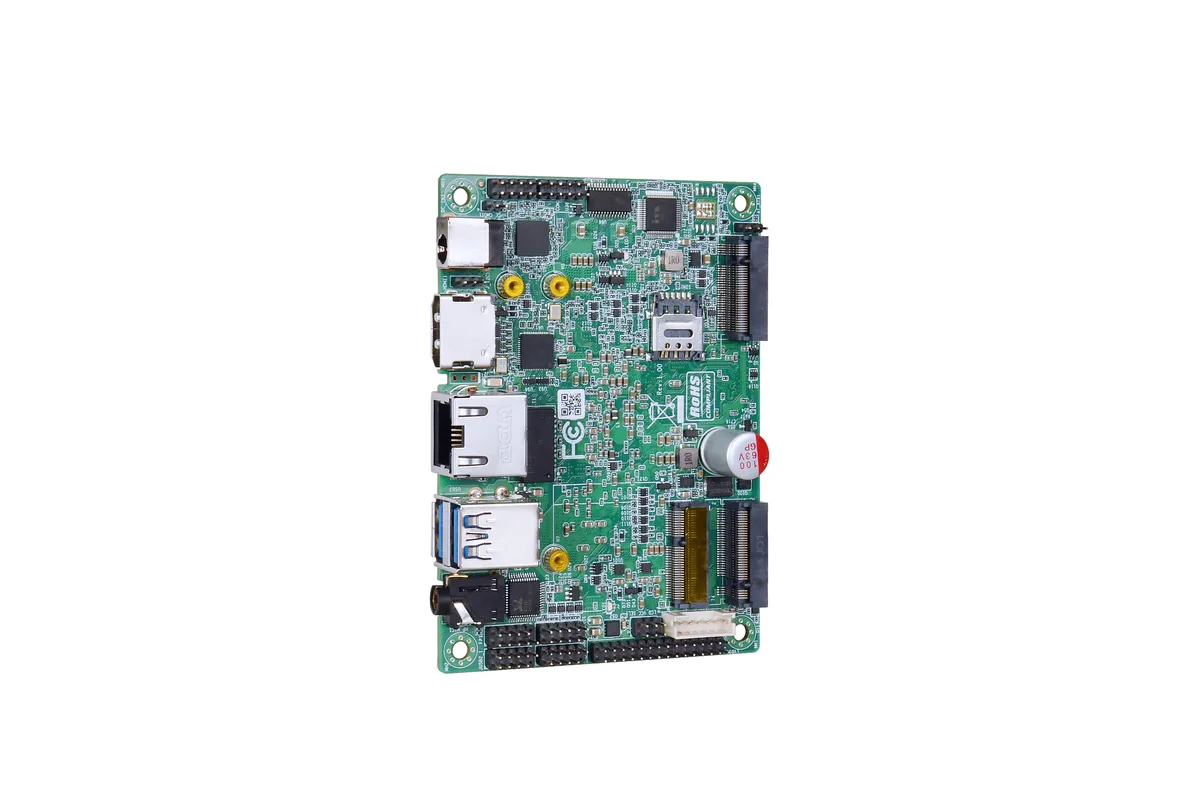

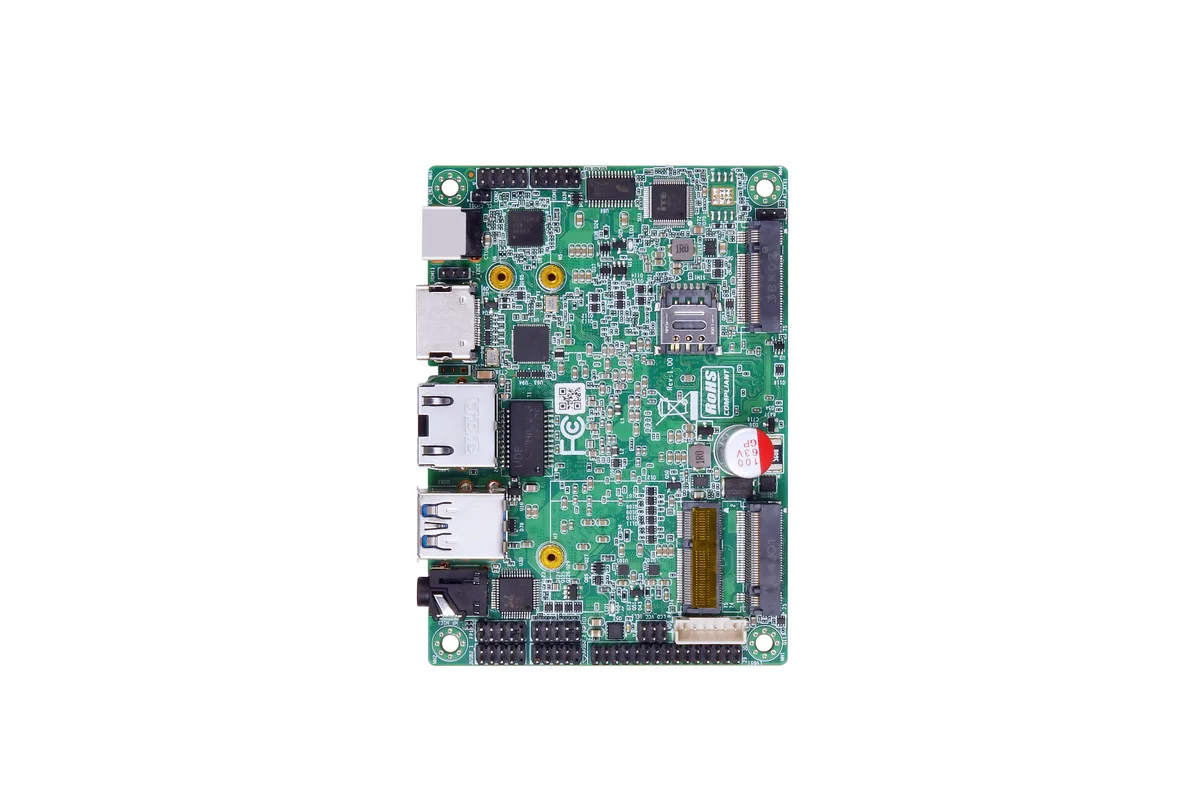

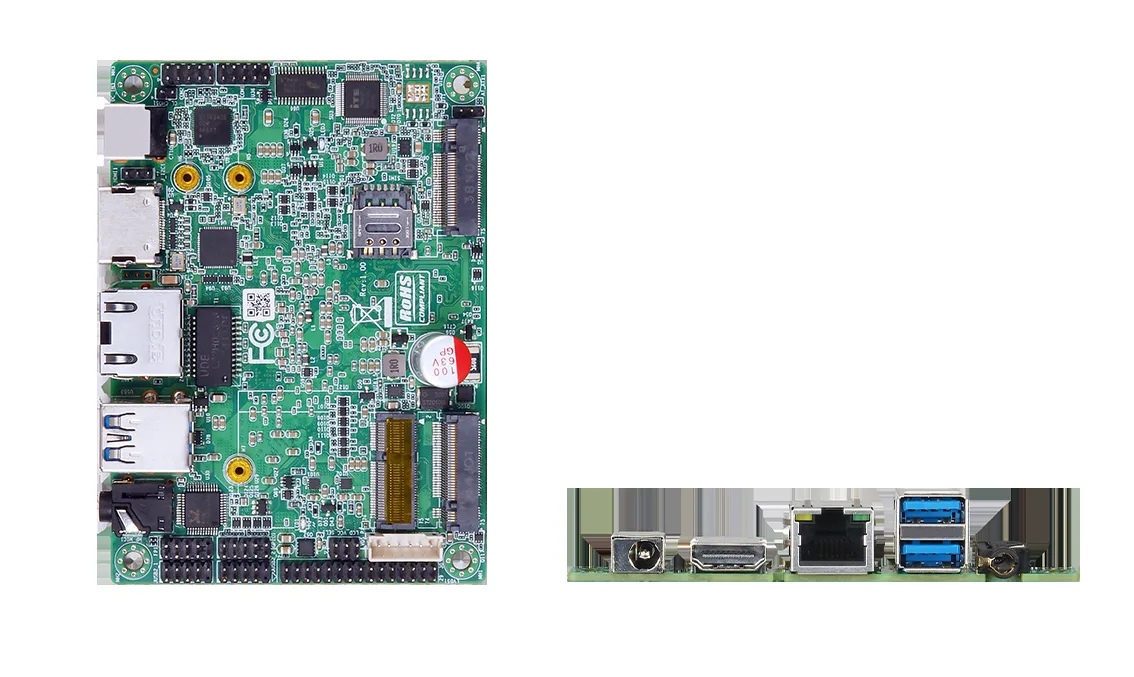

Every angle from the product shoot — board face, interfaces and mounting. Click through to see the detail.
