NUC · 100×100 MM · R101

PX700CA Industrial Motherboard

Name: PX700CA Industrial Motherboard
Brand: GEOLiNK
SKU: PX700CA

A 35W AMD Ryzen 6000/7000 series platform up to the 8845HS with two Realtek RTL8125B 2.5G ports, dual HDMI 4K, Type-C carrying DP 8K@60Hz and DDR5 to 64 GB — the PX700CA is the highest-TDP board in the GEOLiNK NUC family, matched with the U-BOX-M5 chassis. The paired enclosure keeps the mechanical fit simple for volume builds.

Get a Quote Compare NUC

PX700CA · Quick Specs

CPU	Ryzen 6000/7000, 35W
Memory	2× DDR5 SO-DIMM, 64GB
Display	2× HDMI 4K · 2× Type-C DP 8K
Network	2× RTL8125B 2.5G
Power	DC 12–19V, 90W+
Temperature	−20/+60°C operating

RYZEN 8845HS · DUAL RTL8125B 2.5G · DDR5 UP TO 64GB · DC 12–19V · SAMPLE MOQ 1 PC

Why PX700CA

Four things that stand out on the spec card

CPU

35W Ryzen 7000 series

Up to the Ryzen 7 8845HS — the highest-TDP NUC board in the GEOLiNK family, for builds that need more compute than a 28W board can offer.

LAN

Realtek RTL8125B pair

Two 2.5G controllers for routing and gateway work, with Wi-Fi, 4G/5G and Bluetooth expansion supported alongside.

Video

DP 8K on both Type-C

Each Type-C carries DisplayPort 8K@60Hz plus USB 3.0 — two future-proof video paths that double as high-speed ports.

Expansion

FPC PCIe 4.0 x4 reserved

A reserved FPC interface for PCIe 4.0 x4 devices is on the layout, to be enabled after update and validation in the next release.

Full Specifications

Technical data

Figures below mirror the PX700CA English spec card (revision R101) — request the full sheet from sales to verify your build assumptions. Note the reserved FPC (PCIe 4.0 x4) interface — the spec sheet marks it for enablement in the next release, so plan the connector if you need it.

CPU	Onboard AMD Ryzen 6000/7000 series · 35W TDP · 6600H / 7735U / 7535U / 7840HS / 7940HS / 8845HS · EFI BIOS
Memory	2× DDR5 SO-DIMM · up to 64 GB
Storage	1× M.2 M-Key 2280 (NVMe PCIe 4.0 x4) · 1× SATA 3.0, 2-pin 5V power
Display	2× HDMI 2.0 (4K@60Hz) · 2× Type-C (DP 8K@60Hz + USB 3.0)
Network	2× LAN (Realtek RTL8125B) · Wi-Fi, 4G/5G and Bluetooth expansion supported
USB & Type-C	2× USB 3.0 external · 2× Type-C (DP + USB 3.0) · 1× USB 2.0 pin header · audio
Serial	1× RS232 pin header
Expansion	1× M.2 E-Key (PCIe + USB 2.0, Wi-Fi/BT) · 1× 4-pin PWM CPU FAN · 1× FPC (PCIe 4.0 x4, reserved, enabled in next release) · CIR reserved (software debug) · TPM 2.0 onboard CPU by default, external TPM 2.0 optional
Power	DC 12–19V input · 90W and above

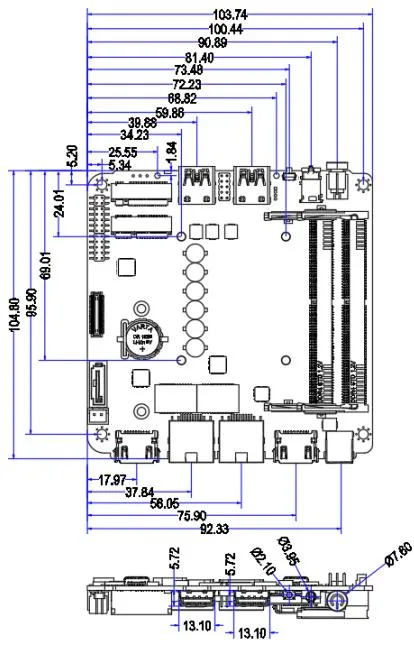

Dimensions	100 × 100 mm · approx. 120 g without heatsink · approx. 220 g with heatsink
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage · 0–90% RH non-condensing
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Compute for depots and control rooms

The PX700CA suits installations that want Ryzen-class throughput in a compact, passively friendly footprint. Typical placements:

Depot and station equipment: 35W headroom for ticketing and passenger-information computers, with Wi-Fi, 4G/5G and Bluetooth expansion for the backhaul link.
Industrial control: the −20/+60°C range and DC 12–19V input fit plant-floor enclosures and small control cabinets.
Professional compute: high-thread Ryzen SKUs and 64 GB DDR5 handle dense desktop-style workloads in compact office and workshop machines.

For all three placements the DC 12–19V input and the −20/+60°C operating range are the constants the integrator can rely on.

Station concourse with passenger information equipment

Configuration

Ordering options

The Ryzen SKU matrix is decided at ordering; everything else stays on the standard board. Pricing steps with the SKU tier, so the choice matters most where compute density meets budget.

Option	Standard	Optional
CPU SKU	Selectable at order	Ryzen 5 6600H · Ryzen 7 7735U · Ryzen 5 7535U · Ryzen 7 7840HS · Ryzen 9 7940HS · Ryzen 7 8845HS
Security	Onboard CPU TPM 2.0	External TPM 2.0 module
