NUC · 100×100 MM · R100
AD600CA Industrial Motherboard
Onboard 28W Intel Alder Lake / Raptor Lake with dual HDMI 2.0 4K outputs, two Type-C ports carrying DisplayPort 8K@60Hz alongside USB 3.2 Gen2, and an Intel 2.5G LAN — the AD600CA packs four video paths and up to 64 GB of DDR5 into the 100 × 100 mm NUC footprint. Thermal design stays simple — a 28W part with a 4-pin Smart CPU FAN header leaves heatsink and enclosure choices to your mechanical team.
| CPU | Onboard Alder/Raptor Lake, 28W |
|---|---|
| Memory | 2× DDR5 SO-DIMM, 64GB |
| Display | 2× HDMI 2.0 4K · 2× Type-C DP 8K |
| Network | 1× Intel 2.5G LAN |
| Power | DC 12–19V, 150W+ |
| Temperature | −20/+60°C operating |
DP 8K TYPE-C ×2 · 2.5G LAN SINGLE/DUAL · DDR5-5200 UP TO 64GB · DC 12–19V · SAMPLE MOQ 1 PC
Why AD600CA
Four reasons the AD600CA keeps showing up
Multi-Display
HDMI pair plus 8K Type-C
Two HDMI 2.0 ports for 4K panels and two Type-C ports carrying DisplayPort 8K@60Hz with USB 3.2 Gen2 — four screens out of a 100 mm square.
LAN Choice
Single or dual 2.5G
One Intel 2.5G port by default; add a second for failover or traffic segmentation. Single-LAN builds trade it for an extra rear USB 3.2 Gen2.
Storage
NVMe or SATA on one slot
The M.2 2280 M-Key takes PCIe 4.0 x4 NVMe or SATA 3.0 drives — protocol marked on the order — with a second SATA 3.0 port alongside.
Security
TPM 2.0 without the add-on
CPU-integrated TPM 2.0 ships by default, so BitLocker-class deployments need no extra module; an external TPM 2.0 stays available as an option.
Full Specifications
Technical data
The table below follows the AD600CA English datasheet (revision R100) field by field. A full copy of the sheet is available on request.
| CPU | Onboard Intel Alder Lake / Raptor Lake · 28W TDP · I3-1215U / I5-1340P / I5-12450H / I5-1240P / I7-1360P · I3-1220P / I3-1315U / I5-1240P / I7-1260P / I9-12900H · EFI BIOS |
|---|---|
| Memory | 2× DDR5 SO-DIMM · up to 64 GB · up to 4800 MHz (12th Gen) / up to 5200 MHz (13th Gen) |
| Storage | 1× M.2 M-Key 2280 (PCIe 4.0 x4 or SATA 3.0 protocol, to be noted on order) · 1× SATA 3.0, 2-pin 5V power |
| Display | 2× HDMI 2.0 (4K@60Hz) · 2× Type-C (DP 8K@60Hz + USB 3.2 Gen2) |
| Network | 1× Intel 2.5G LAN |
| USB & Type-C | 2× USB 3.2 Gen2 side I/O · 1× rear USB 3.2 Gen2 · 1× USB 2.0 pin header (2×5-pin, 2.0 mm) · combo audio jack |
| Serial | 1× RS232 pin header, 2.0 mm pitch |
| Expansion | 1× M.2 E-Key (PCIe + USB 2.0, Wi-Fi/BT) · TPM 2.0 CPU-integrated by default, external TPM 2.0 optional · 1× 4-pin Smart CPU FAN · CIR reserved (software debug) |
| Power | DC 12–19V input · 150W and above |
| Dimensions | 100 × 100 mm · approx. 120 g without heatsink · approx. 220 g with heatsink |
| Environment | −20°C to +60°C operating · 5–90% RH · −40°C to +85°C storage · 5–90% RH |
| Software | Windows 10 · Windows 11 · Linux |
Where It Fits
Self-service terminals and edge boxes
The AD600CA is for enclosures where the bay is fixed and the uptime target is not negotiable. Typical placements:
- Self-service kiosks: dual HDMI for the customer screen plus an operator mirror or side signage; RS232 and USB 2.0 headers reach printers and card readers.
- Automation cabinets: a 28W heat class and the −20/+60°C range suit sealed plant-floor boxes, with a 4-pin Smart CPU FAN header when airflow is available.
- Edge mini PCs: both Type-C ports double as fast USB 3.2 Gen2 peripherals or DP 8K video out, and the 2.5G LAN ties the box into the site network.
Wherever the AD600CA lands, the base board stays the same — CPU, LAN and storage are the only variables on the order.
Configuration
Ordering options
Options are locked in at order time; the base board itself stays standard across the range.
| Option | Standard | Optional |
|---|---|---|
| CPU SKU | Selectable at order | I3-1215U · I5-1340P · I5-12450H · I5-1240P · I7-1360P · I3-1220P · I3-1315U · I7-1260P · I9-12900H (Alder Lake / Raptor Lake) |
| LAN | 1× Intel 2.5G | — |
| M.2 2280 protocol | To be noted on order | NVMe PCIe 4.0 x4 · SATA 3.0 |
| Security | CPU-integrated TPM 2.0 | External TPM 2.0 module |
Product Views
More photos of the AD600CA

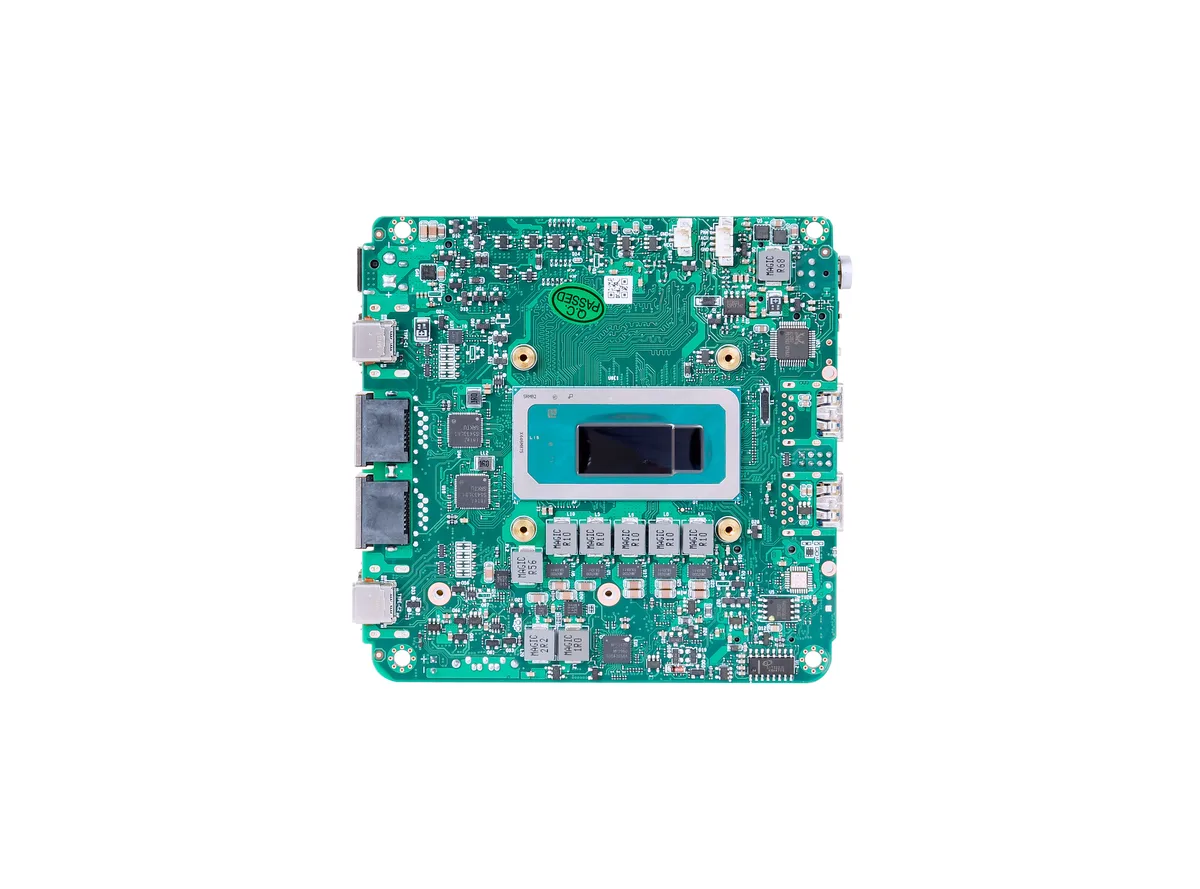

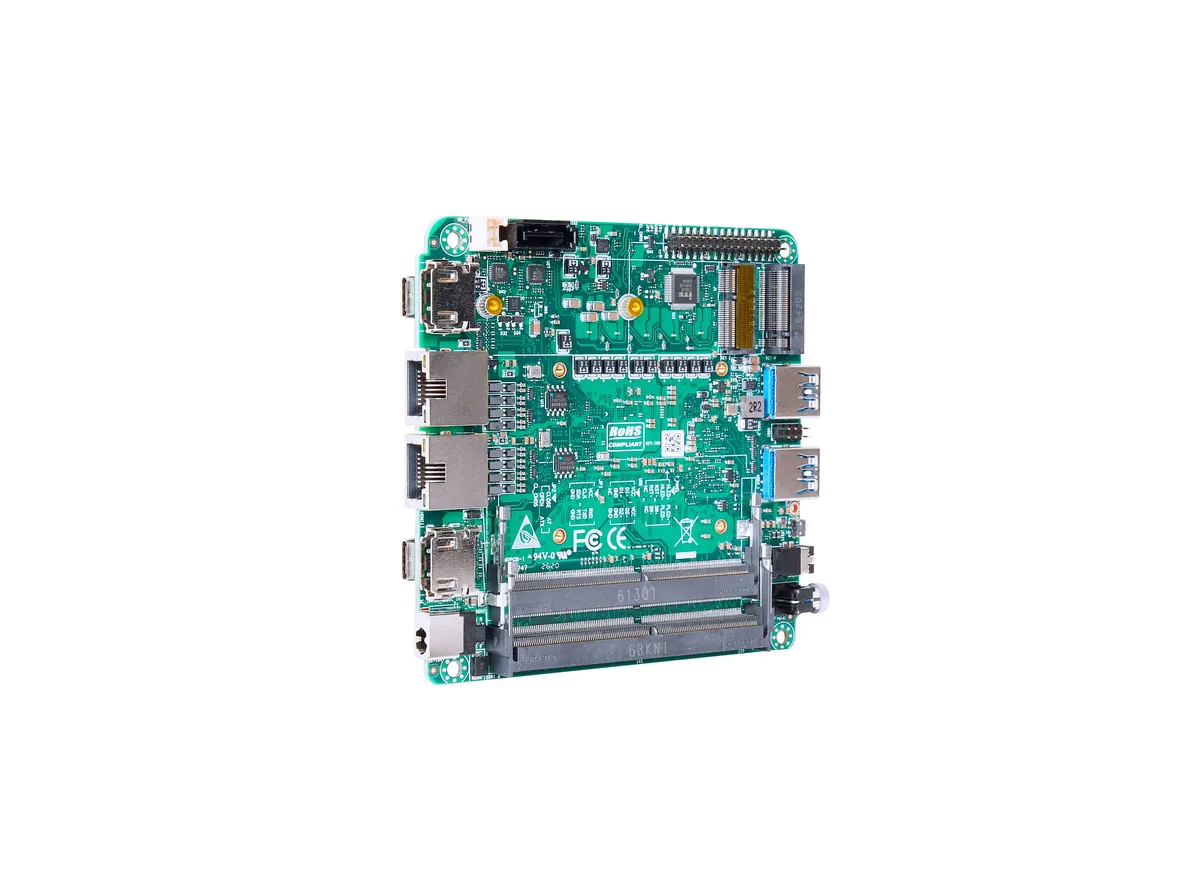

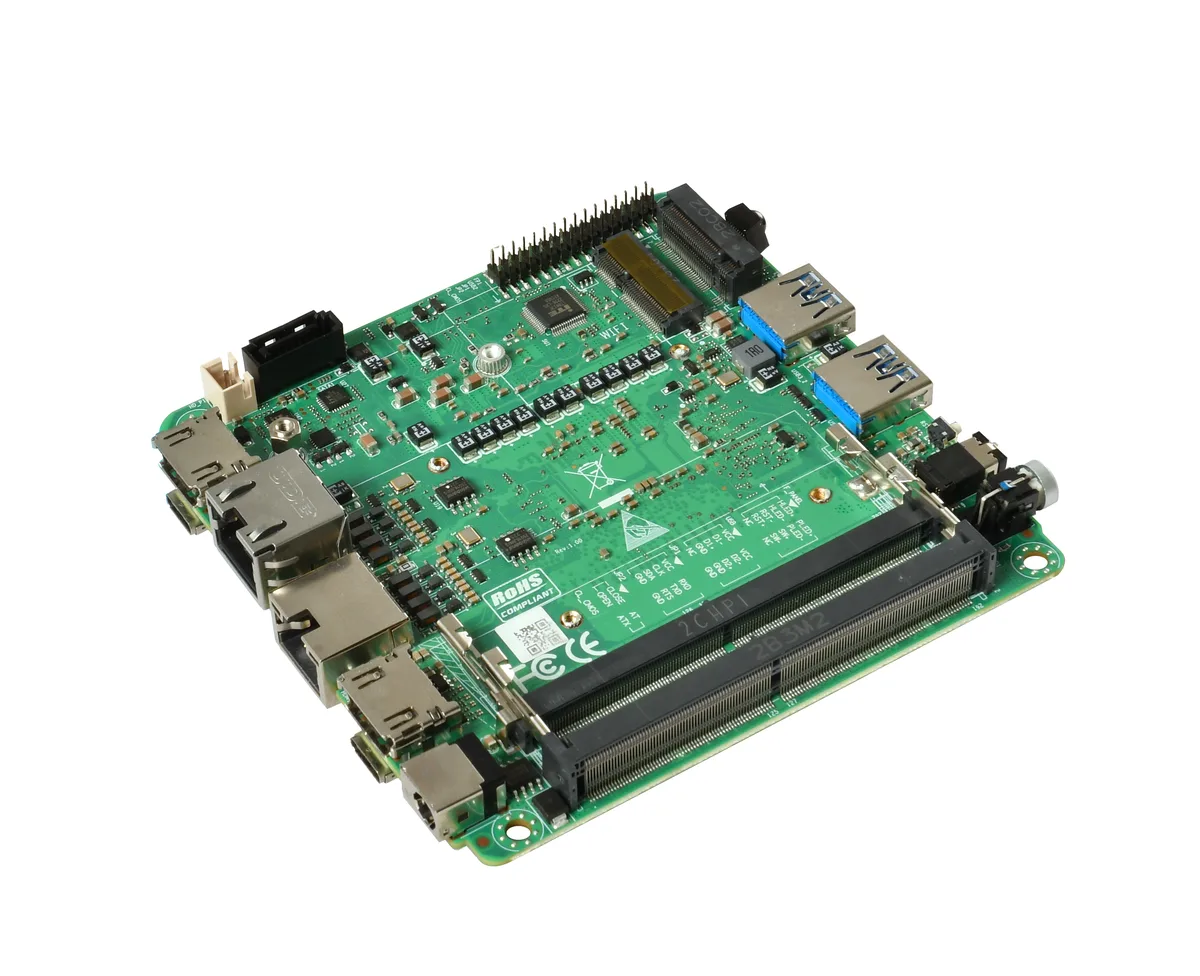

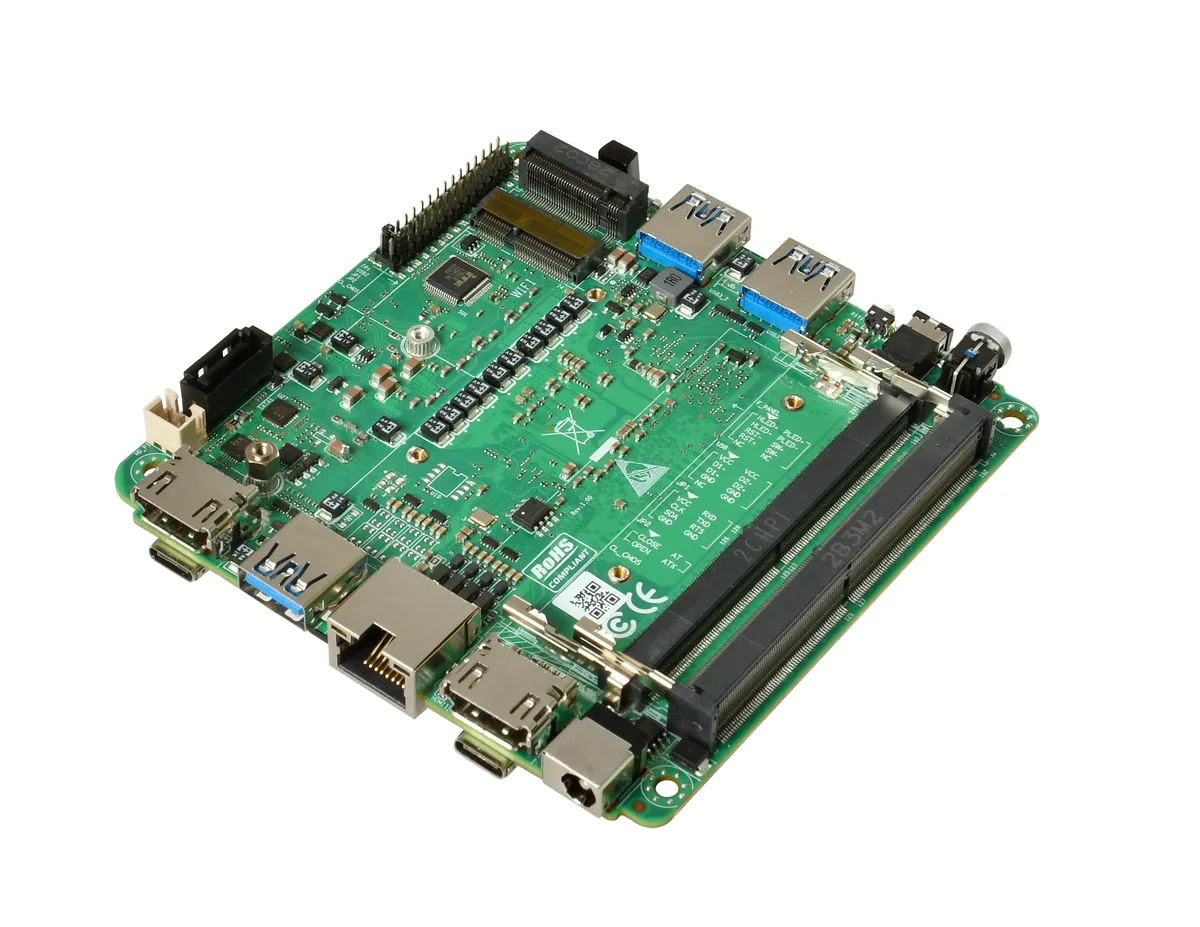

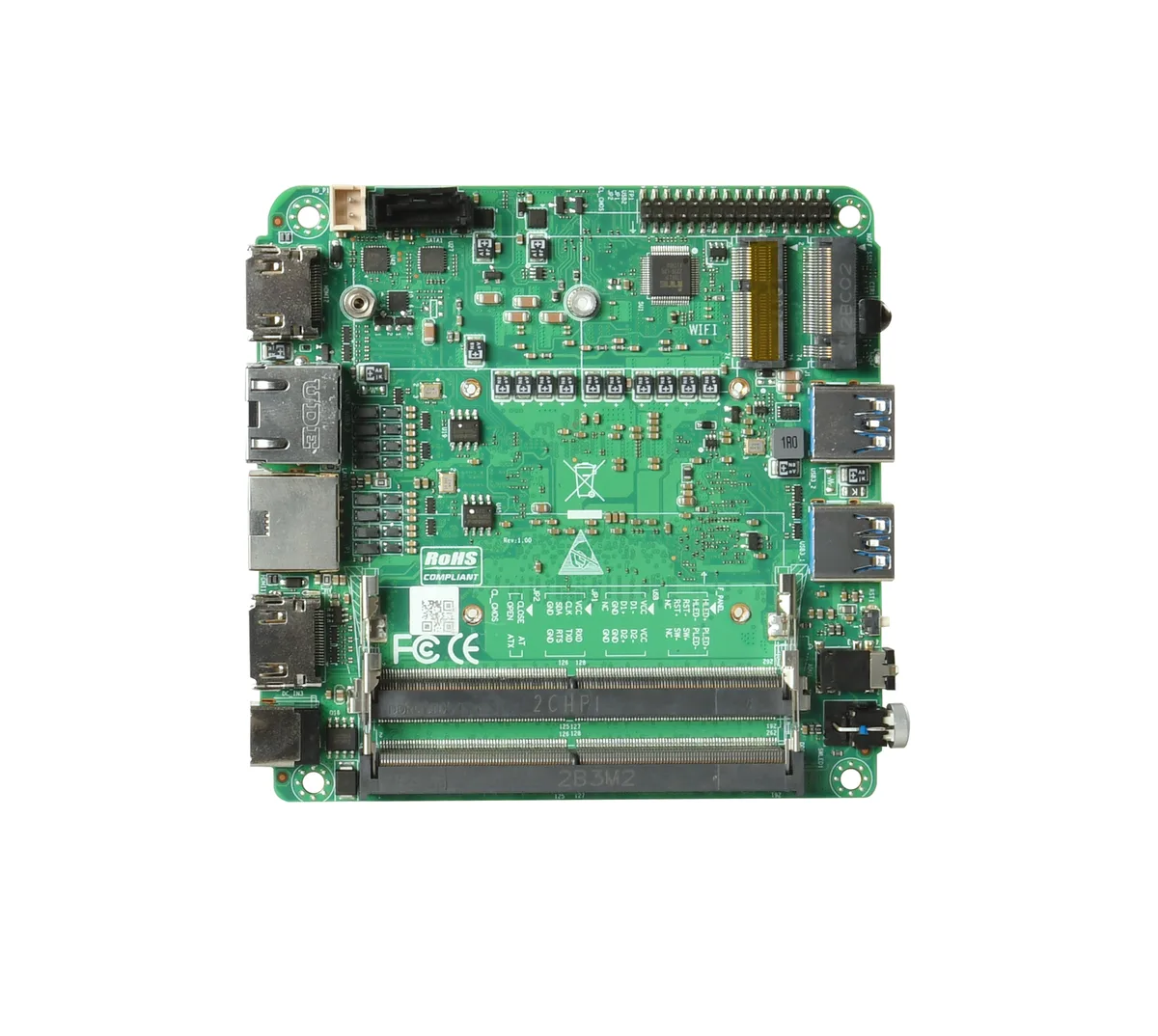

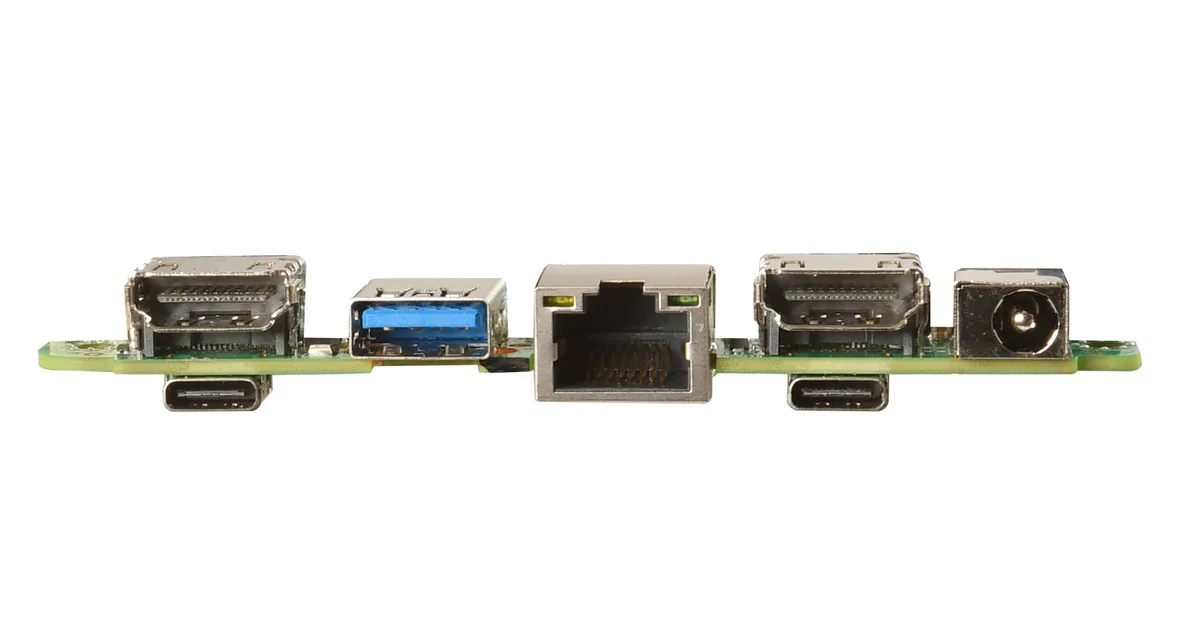

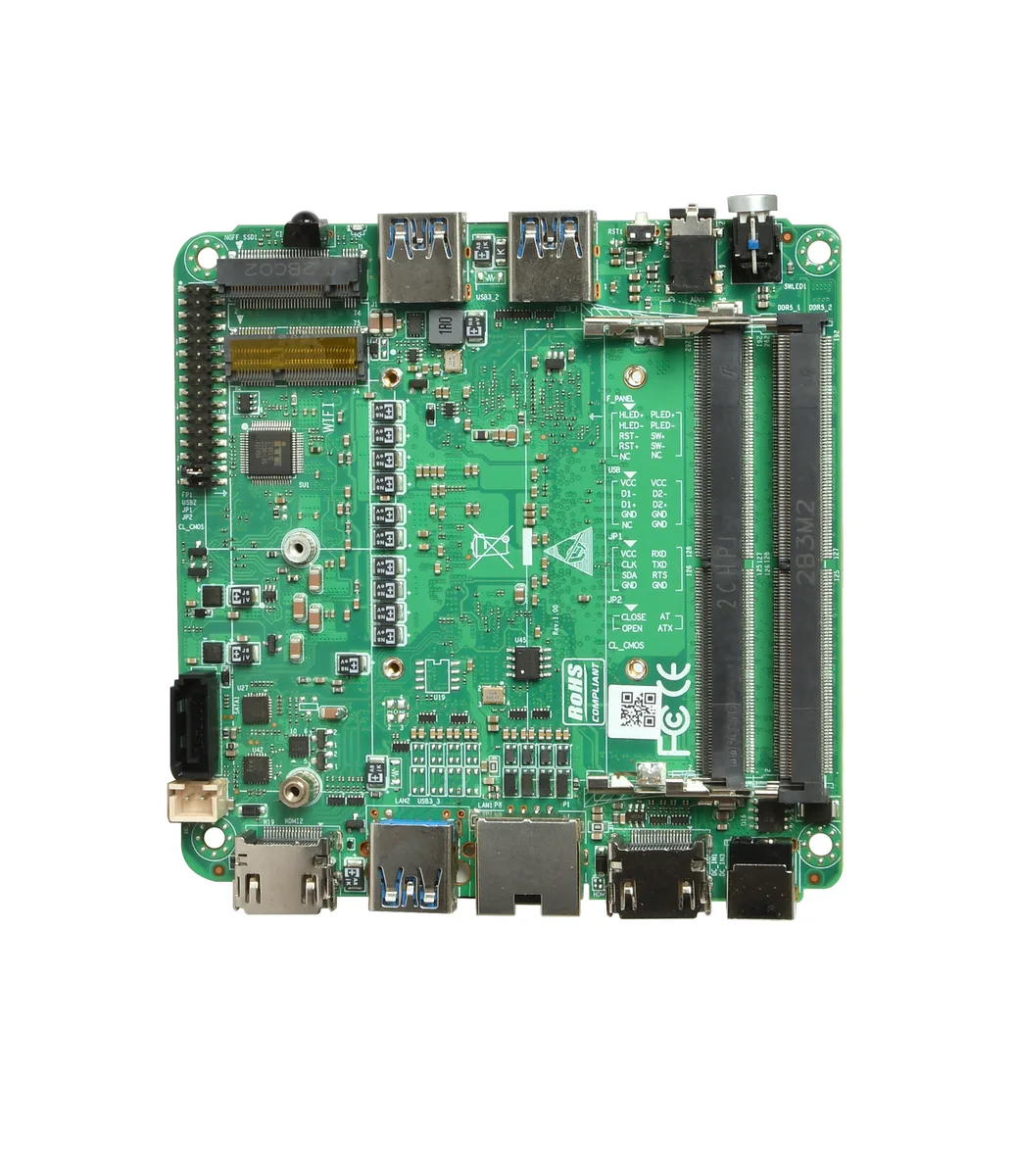

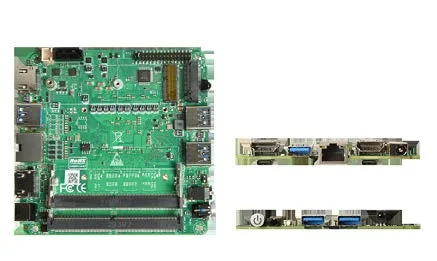

Every angle from the product shoot — board face, interfaces and mounting. Click through to see the detail.
