NUC · 100×100 MM · R101

UT100CA Industrial Motherboard

Name: UT100CA Industrial Motherboard
Brand: GEOLiNK
SKU: UT100CA

Nine Core Ultra SKUs from 125U to 185H, DDR5 up to 96 GB, dual Intel i226 2.5G LAN and dual HDMI 2.1 plus Type-C DP 4K — the UT100CA is the flexible top of the GEOLiNK NUC stack, shipped in the U-BOX-M5 chassis. U-series SKUs trim power draw for sealed boxes; H-series SKUs add threads for compute-heavy jobs — the same board hosts both.

Get a Quote Compare NUC

UT100CA · Quick Specs

CPU	Core Ultra 125U–185H, 28W
Memory	2× DDR5 SO-DIMM, 96GB
Display	2× HDMI 2.1 4K · 2× Type-C DP 4K
Network	2× Intel i226 2.5G
Power	DC 12–19V, 90W+
Temperature	−20/+60°C operating

CORE ULTRA 185H · DUAL I226 2.5G · DDR5 UP TO 96GB · DC 12–19V · SAMPLE MOQ 1 PC

Why UT100CA

Four reasons to start here

CPU

Nine SKUs, one board

Core Ultra 125U to 185H, U and H series, all at 28W — the widest CPU ladder in the NUC family, so one board covers many builds.

Memory

96 GB of DDR5

Two SO-DIMM sockets support 96 GB for virtualization hosts, analytics nodes and memory-hungry edge workloads.

LAN

Dual Intel i226

Two Intel 2.5G controllers as standard, with Wi-Fi, 4G/5G and Bluetooth expansion via the M.2 E-Key slot.

Headers

Two USB 2.0 headers

Two USB 2.0 pin headers plus RS232 — more internal wiring points than the rest of the family for panel and enclosure wiring.

Full Specifications

Technical data

All fields below follow the UT100CA R101 datasheet; the complete English sheet is available on request. The datasheet also lists the paired U-BOX-M5 chassis and the CIR reserved interface, both useful at planning time.

CPU	Onboard Intel Core Ultra series · 28W TDP · 125U / 135U / 155U / 165U / 125H / 135H / 155H / 165H / 185H · EFI BIOS
Memory	2× DDR5 SO-DIMM · up to 96 GB
Storage	1× M.2 M-Key 2280 (NVMe PCIe 4.0 x4) · 1× SATA 3.0 (2-pin 5V power)
Display	2× HDMI 2.1 (4K@60Hz) · 2× Type-C (DP 4K@60Hz + USB 3.0)
Network	2× Intel i226 2.5G LAN · Wi-Fi, 4G/5G and Bluetooth expansion supported
USB & Type-C	2× USB 3.0 external · 2× Type-C (DP + USB 3.0) · 2× USB 2.0 pin headers · audio
Serial	1× RS232 pin header
Expansion	1× M.2 E-Key (PCIe + USB 2.0, Wi-Fi/BT) · 1× 4-pin PWM CPU FAN · CIR reserved (software debug) · TPM 2.0 onboard CPU by default, external TPM 2.0 optional
Power	DC 12–19V input · 90W and above

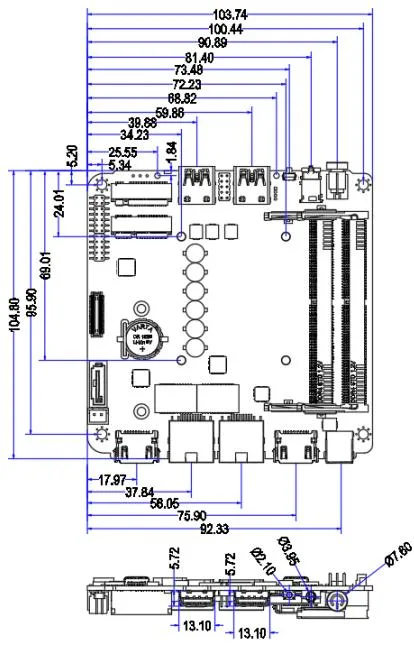

Dimensions	100 × 100 mm · approx. 106.7 g without heatsink
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage · 0–90% RH non-condensing
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Machine-adjacent control and desk-side compute

The UT100CA splits the difference between embedded control and workstation-class loads. Typical placements:

Machine-side control: the RS232 header and dual USB 2.0 headers tie into PLC panels, sensors and industrial peripherals inside the cabinet.
Scientific computing: 96 GB DDR5 and 185H-class SKUs handle dense number-crunching and analysis workloads in compact desktop boxes.
Smart embedded systems: the −20/+60°C range and DC 12–19V input suit automation hubs and always-on embedded enclosures.

One board across all nine SKUs means a single qualification, a single stock item and a simpler spare-part strategy.

Factory floor with automation control equipment

Configuration

Ordering options

Nine Core Ultra SKUs from 125U to 185H are selectable at order time on one base board. The H-series SKUs share the 28W envelope, so the cooling solution does not change when you step up. Samples are available at one piece; volume pricing applies from ten.

Option	Standard	Optional
CPU SKU	Selectable at order	Core Ultra 5 125U · 135U · 155U · 165U · Core Ultra 5 125H · 135H · 155H · 165H · Core Ultra 7 185H (28W)
Security	Onboard CPU TPM 2.0	External TPM 2.0 module
