3.5-inch Wide · 155×117 MM · R110

AD600Z3AW Industrial Motherboard

Name: AD600Z3AW Industrial Motherboard
Brand: GEOLiNK
SKU: AD600Z3AW

Onboard Intel 12th/13th Gen U/P silicon at 28 W with DDR5 up to 64 GB, an AMT-managed i219LM plus 2.5G i226-V LAN pair, six COM, a CAN bus and DC 9–36V input — the AD600Z3AW carries the modern low-power platform onto the wide 155 × 117 mm floor plan, bundled with the Q-BOX-E10 chassis.

Get a Quote Compare 3.5-inch Wide

AD600Z3AW · Quick Specs

CPU	Onboard 12th/13th Gen -U/-P, 28W
Memory	2× DDR5 SO-DIMM, 64GB
Display	HDMI 2.1 · MiniDP · Type-C DP · LVDS/eDP
Network	i219LM + i226V 2.5G, AMT
Power	DC 9–36V
Temperature	−20/+60°C operating

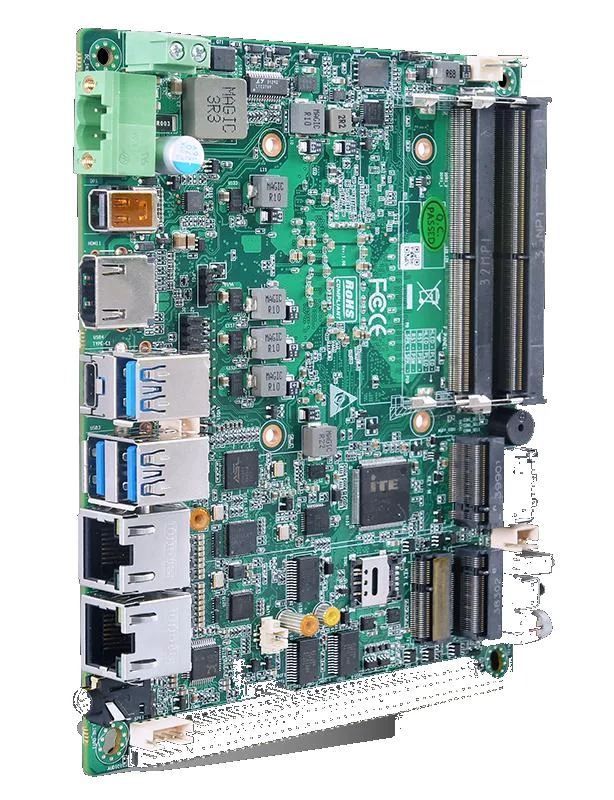

AD600Z3AW industrial motherboard top view

12TH/13TH GEN U/P · DDR5 TO 64GB · AMT + 2.5G I226-V · 6 COM + CAN · DC 9–36V · SAMPLE MOQ 1 PC

Why AD600Z3AW

Beyond the footprint

Manageability

AMT on the i219LM

Out-of-band Intel AMT on LAN1 lets a central IT desk power-cycle, re-image and inspect a fleet of units without visiting the rack — built for fielded, far-flung hardware.

Serial Depth

Six COM plus CAN

6× COM with RS232/485 select rides alongside a dedicated CAN header, so legacy machinery and field buses attach without a card full of adapters.

Wide Power

DC 9–36V input

One board tolerates the 12V and 24V rails found in vehicles, plants and cabinets — no separate brick, fewer points of failure in the supply chain.

Display Mix

HDMI 2.1 + Type-C DP

HDMI 2.1, MiniDP and a Type-C with DP alternate mode cover modern monitors, while 24-bit LVDS or optional eDP drives an integrated panel directly.

Full Specifications

The AD600Z3AW, field by field

Per the AD600Z3AW English specification sheet (revision R110). Specifications can be verified against the datasheet on request.

CPU	Onboard Intel 12th / 13th Gen -U / -P Series (optional -U / -P / -H Series) · 28W TDP · EFI BIOS
Memory	2× DDR5 SO-DIMM · up to 64 GB
Storage	1× M.2 M-Key 2280 (PCIe 4.0 x4) · 1× SATA 3.0 with 5V power
Display	1× HDMI 2.1 · 1× MiniDP · Type-C (USB + DP) · 24-bit LVDS (LVDS / eDP selectable)
Network	LAN1 Intel i219LM · LAN2 Intel i226V 2.5G · AMT support · single-LAN / dual-LAN optional · M.2 E-Key WiFi/BT · M.2 B-Key 4G/5G + SIM
Serial	6× COM (RS232/485 select) · 1× CAN header
USB	3× USB 3.0 rear · Type-C · 2× USB 2.0 headers (LAN2 shares 2× USB 2.0, one-of-two selectable)
Other I/O	LPT · 8-bit GPIO · PS/2 · SPDIF · audio · SPEAK 1×4 · CPU Smart FAN + system fan · F_Panel · CMOS · AT / ATX · 1× Phoenix terminal
Security	TPM 2.0 (external module, optional)
Power	DC 9–36V input
Dimensions	155 × 117 mm · approx. 160 g (excluding heatsink) · bundled with Q-BOX-E10 chassis
Environment	−20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Vehicle cabins and way-side racks

The AD600Z3AW earns its slot where the board rides along — moving vehicles, exposed cabinets and plant floors with dirty power. Typical deployments:

In-vehicle computing: DC 9–36V absorbs 12V/24V supply swings and cranking dips, while the CAN header links the board to vehicle buses and telematics.
Transportation gateways: 4G/5G on the M.2 B-Key with SIM carries live telemetry, and AMT lets the depot manage every unit out-of-band.
Factory HMI nodes: six COM plus LPT and 8-bit GPIO reach legacy machines while the 28W U/P platform drives modern panels and local UI.

In-vehicle electronics cabin with an embedded computer

Configuration

Ordering options

Selectable options are configured at order time against a standard base board.

Option	Standard	Optional
CPU series	Intel 12th/13th Gen -U / -P, 28W	-H series
Network	Dual LAN (i219LM + i226V 2.5G, AMT)	Single-LAN
Panel out	24-bit LVDS	eDP (LVDS / eDP selectable)
Security	TPM 2.0 off	External TPM 2.0 module
Bundle	Q-BOX-E10 chassis included	Board only
