3.5-inch Wide · 155×117 MM · Tiger Lake-U
TL500Z3AW Industrial Motherboard
Onboard 11th Gen Tiger Lake-U with up to i7-1165G7, a 2.5G I225V-B3 plus AMT-ready i219 LAN pair, six COM with an RS485/RS422 mix, CAN and DC 9–36V at 90 W — the TL500Z3AW runs long-life terminals and gateways on the wide 155 × 117 mm floor plan, with a heatsink for sustained loads.
Get a Quote Compare 3.5-inch Wide
| CPU | Onboard Tiger Lake-U, 6305U–i7-1165G7 |
|---|---|
| Memory | Onboard DDR4 4–16GB + SO-DIMM, 32GB |
| Display | HDMI 2.0 · MiniDP · LVDS/eDP · dual-channel |
| Network | I225V-B3 2.5G + i219 GbE, AMT |
| Power | DC 9–36V, 90W |
| Temperature | −20/+60°C operating |
TIGER LAKE-U · DDR4 TO 32GB · 2.5G I225V-B3 + I219 · 6 COM RS485/422 · DC 9–36V · SAMPLE MOQ 1 PC
Why TL500Z3AW
Quiet headroom, wide reach
CPU + Memory
i7 class, flexible DRAM
Onboard Tiger Lake-U up to i7-1165G7 with 4–16 GB DDR4 soldered in, plus a SO-DIMM slot for expansion to 32 GB total — pick the exact memory a workload needs.
Network
2.5G + Gigabit pair
An Intel I225V-B3 2.5G port for today’s uplinks and an i219 Gigabit port with AMT keep throughput and out-of-band manageability on separate rails.
Serial Mix
RS422/485-ready COM
Six COM ports — one RS422/RS485, three RS485/RS232 and two RS232 — speak to meters, drives and legacy controllers without external converters.
Thermals
Heatsink, 90W
A heatsink moves heat off the 28W CPU while DC 9–36V at 90W tolerates unregulated cabinet and vehicle supplies for years of service.
Full Specifications
Every number on the datasheet
Per the TL500Z3AW English specification card. Specifications can be verified against the datasheet on request.
| CPU | Onboard Intel 11th Gen Tiger Lake-U · Celeron 6305U / i3-1115G4 / i5-1135G7 / i7-1165G7 · EFI BIOS |
|---|---|
| Memory | Onboard DDR4 4/8/16 GB (optional) · 1× DDR4 SO-DIMM for expansion · up to 32 GB total |
| Storage | 1× M.2 M-Key 2242 (PCIe x2 NVMe; SATA 3.0 optional via resistor selection) · 1× 7-pin SATA 3.0 with 5V 2-pin power |
| Display | 1× HDMI 2.0 · 1× MiniDP (DP++) · 24-bit dual-channel LVDS (LVDS / eDP selectable) · multi-display |
| Network | LAN1 Intel I225V-B3 2.5G · LAN2 Intel i219 Gigabit with AMT · M.2 B-Key 4G/5G + SIM · M.2 E-Key WiFi/BT |
| Serial | 6× COM (1× RS422/RS485 · 3× RS485/RS232 · 2× RS232) · 1× CAN header (2×4 pin, 2.0mm) |
| USB | 3× USB 3.1 Gen2 rear · 1× USB 2.0 rear · 4× USB 2.0 headers (2 groups) |
| Audio | Combo audio jack · 1× AUDIO header (2×5 pin) · independent 6W 8Ω dual-channel · SPDIF |
| Other I/O | LPT parallel header · 8-bit GPIO · PS/2 · watchdog timer · CPU Smart FAN · front panel (power/HW LEDs, reset) |
| Security | TPM 2.0 (optional, not fitted by default) |
| Power | DC 9–36V input · 90W · heatsink · DC jack or optional 5.08 through-wall Phoenix terminal |
| Dimensions | 155 × 117 × 23 mm · 150 g (without heatsink) · 310 g (with heatsink) |
| Environment | −20°C to +60°C operating · 0–90% RH non-condensing · −40°C to +85°C storage |
| Software | Windows 10 · Windows 11 · Linux |
Where It Fits
Utility rooms and comm cabinets
The TL500Z3AW belongs where the board sits at the end of a long power run — meter rooms, telecom enclosures and 24/7 terminal positions. Typical deployments:
- Energy & utility gateways: the RS485-heavy COM mix talks to meters, RTUs and battery monitors, while the 2.5G port carries the upstream link.
- Telecom edge nodes: 4G/5G on the M.2 B-Key with SIM keeps remote sites connected, and the watchdog pulls unattended units back from hangs.
- Long-life HMI: i7 headroom renders local UI, LVDS or eDP drives the panel, and the optional TPM 2.0 satisfies device-level security asks.
Configuration
Build to order
Every choice below is settled at order time — the base board, the rest is selectable.
| Option | Baseline | Selectable |
|---|---|---|
| CPU | Tiger Lake-U, 28W | Celeron 6305U · i3-1115G4 · i5-1135G7 · i7-1165G7 |
| Onboard memory | 4GB DDR4 | 8GB · 16GB |
| M.2 2242 protocol | NVMe (PCIe x2) | SATA 3.0 via resistor selection |
| TPM 2.0 | Not fitted | TPM 2.0 module |
| DC input | DC jack | 5.08 through-wall Phoenix terminal |
| CAN | 1× header | Quantity optional |
| COM | 6× COM standard mix | COM mix optional |

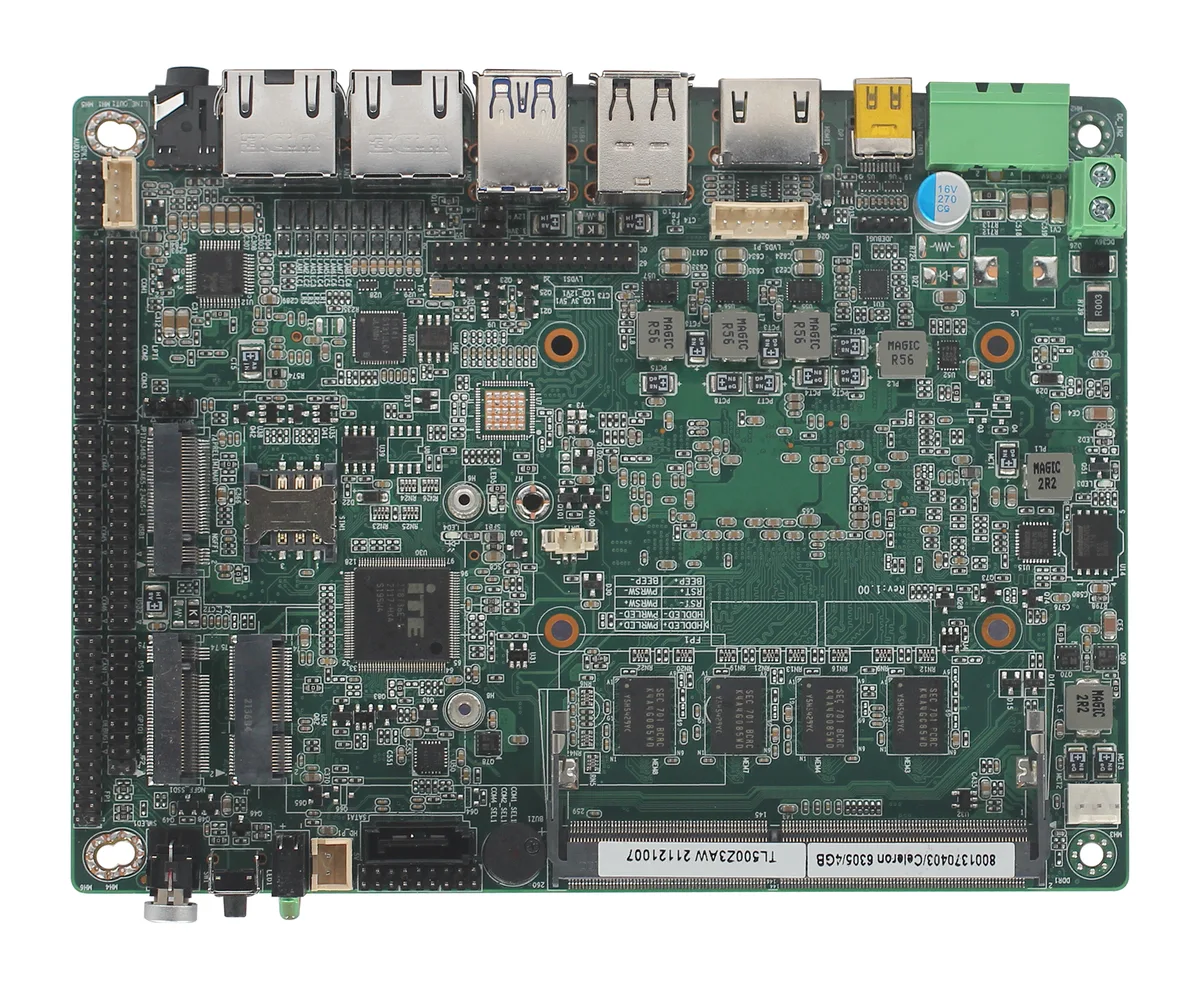

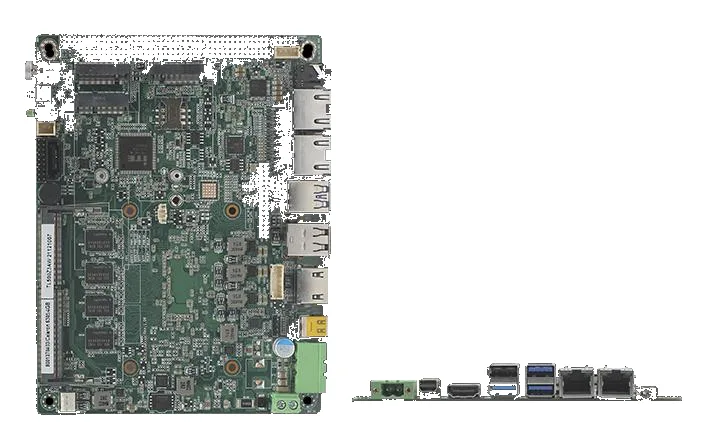

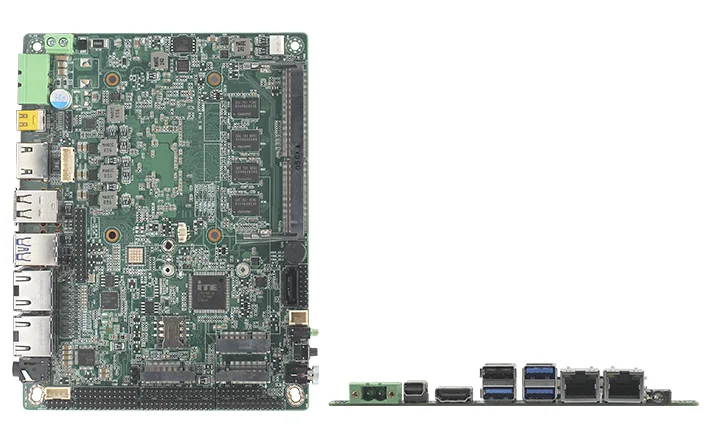

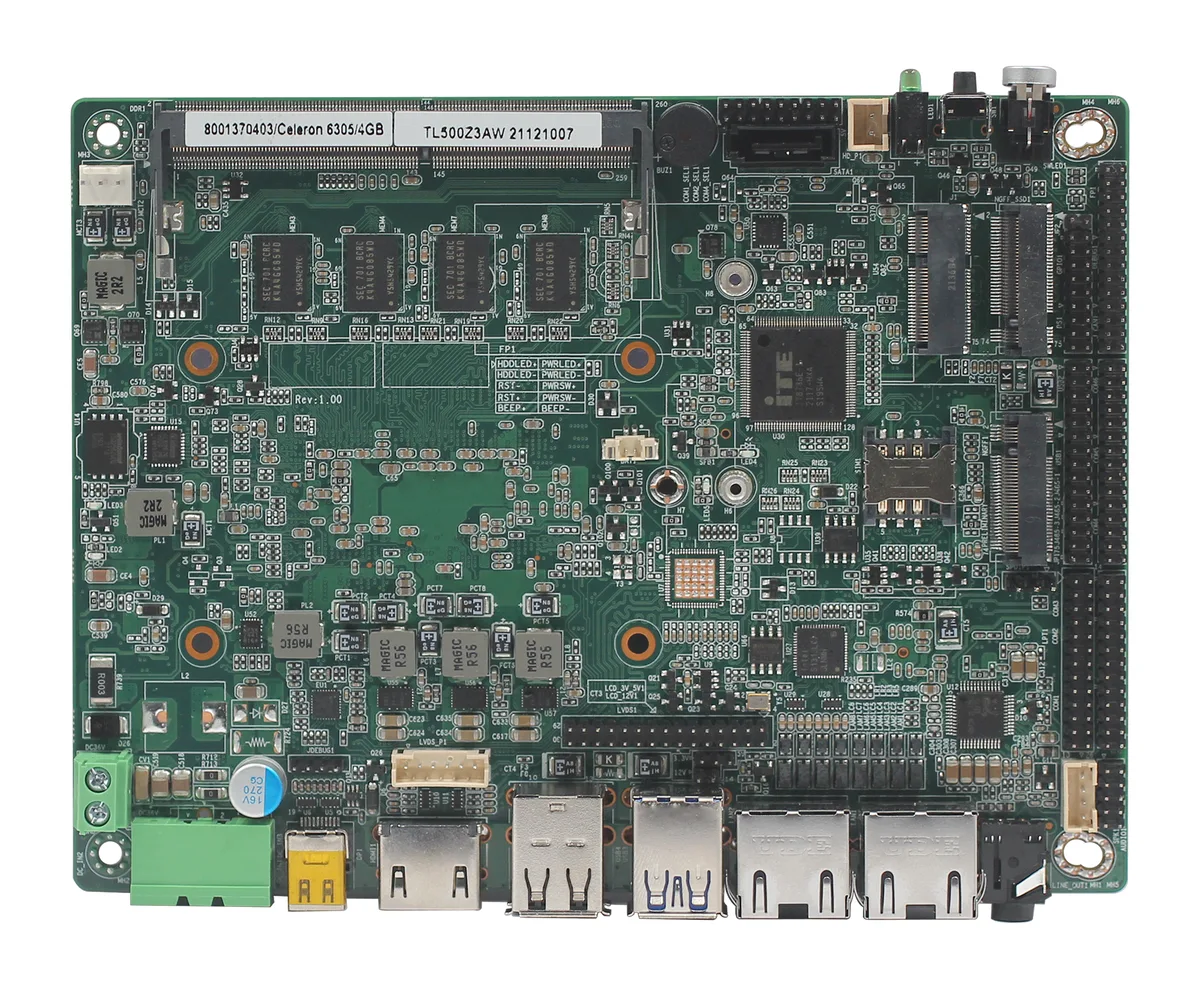

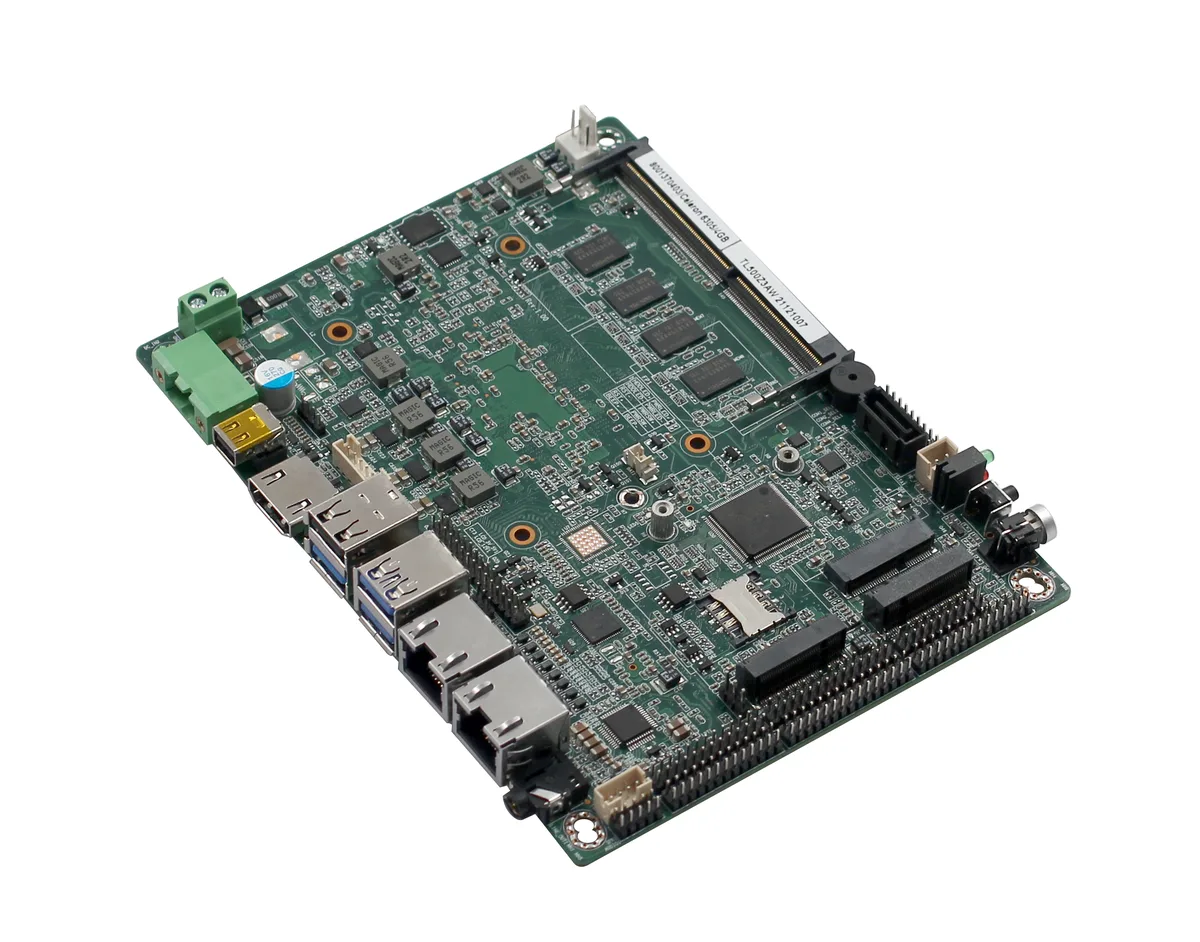

Product Views
More photos of the TL500Z3AW
Every angle from the product shoot — board face, interfaces and mounting. Click through to see the detail.
Related Boards
Boards that pair with this one

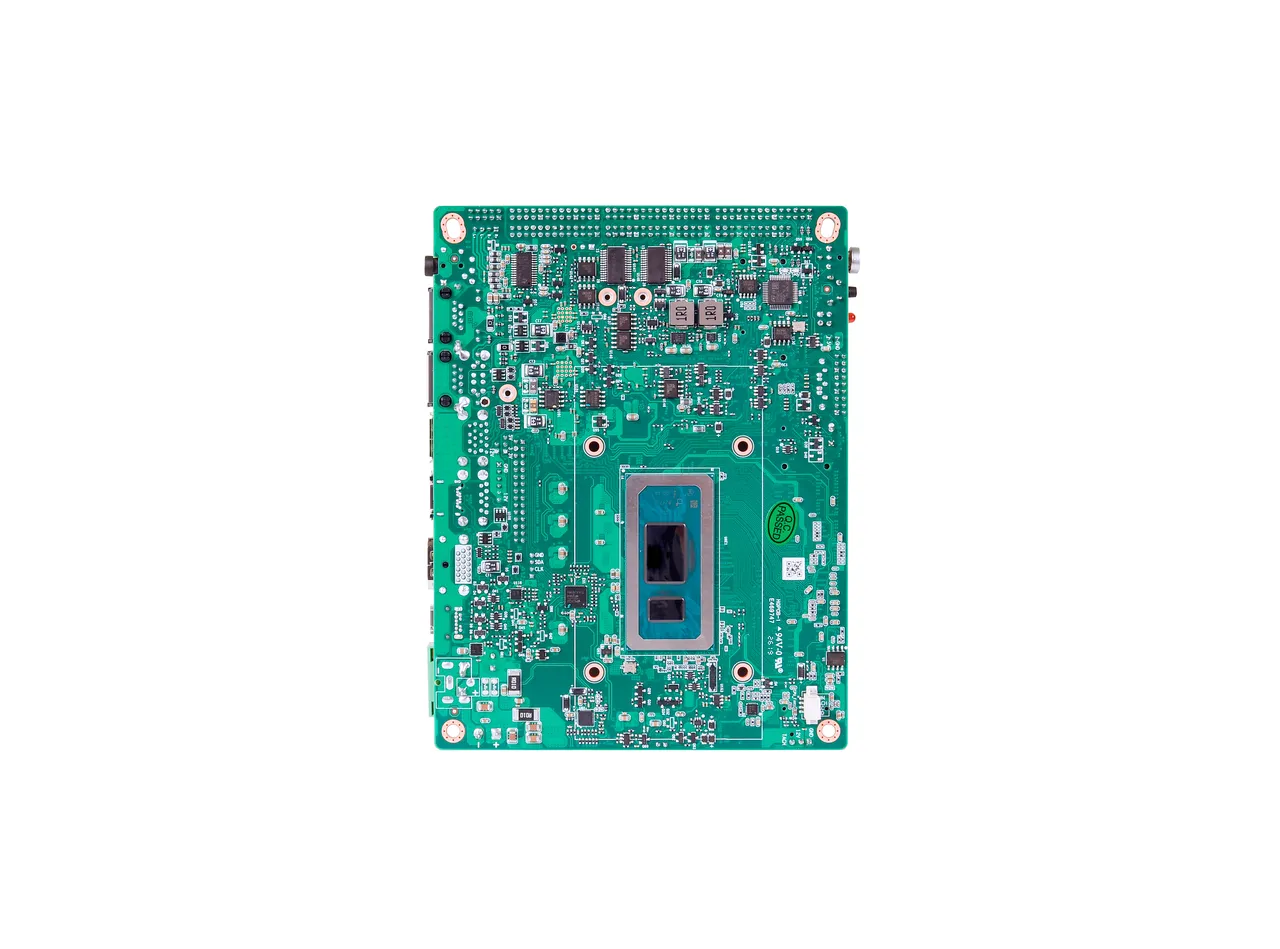

AD600Z3AW
