3.5-inch SBC · 146×102 MM · R101
MSK-TL5003AW Industrial Motherboard
Onboard 11th Gen Tiger Lake-U, onboard memory plus a DDR4 SO-DIMM, dual 2.5G Intel LAN and two MSKEXT expansion ports — the MSK-TL5003AW is a fanless workhorse for factory robots and logistics lines.
| CPU | Onboard Tiger Lake-U · 6305–i7-1165G7 |
|---|---|
| Memory | Onboard 8/16GB + 1× DDR4 SO-DIMM 48GB |
| Display | HDMI 2.0 4K@60 · eDP |
| Network | 2× Intel 2.5G LAN |
| Power | DC 9–36V, 90W |
| Temperature | −20/+60°C operating |
TIGER LAKE-U · DUAL 2.5G · MSKEXT · ONBOARD + DDR4 · DC 9–36V · SAMPLE MOQ 1 PC
Why MSK-TL5003AW
The quiet strengths of a workhorse
Expansion
MSKEXT, two ports
Two MSKEXT interfaces expand to DP, USB 3.0/2.0, or M.2 E/B/M-Key modules — the I/O you need arrives without a board re-spin.
Memory
Onboard plus SO-DIMM
Up to 16 GB soldered plus one DDR4 SO-DIMM slot to 48 GB — mix reliability and density in the same 146×102 mm footprint.
Platform
Tiger Lake-U onboard
Four 11th-gen SKUs from Celeron 6305 to i7-1165G7, selected at order — headroom for robot controllers and HMI, none of it socket-borne.
Field Power
12V 3A output
A dedicated 12 V/3 A output feeds small peripheral boards; the board itself runs on DC 9–36 V with 90 W headroom.
Full Specifications
Technical data
Per the MSK-TL5003AW English specification sheet (revision R101). The full datasheet is available on request.
| CPU | Onboard Intel 11th Gen Tiger Lake-U · Celeron 6305 / i3-1115G4 / i5-1135G7 / i7-1165G7 · EFI BIOS |
|---|---|
| Memory | Onboard memory chips up to 16 GB · 1× DDR4 SO-DIMM up to 48 GB |
| Storage | 1× M.2 M-Key 2280 (NVMe PCIe 3.0 x4 default, SATA 3.0 optional) · 1× SATA 3.0 |
| Display | 1× HDMI 2.0 (4096×2160 @ 60 Hz) · eDP |
| Network | 2× Intel 2.5G LAN · WiFi / 4G / 5G / Bluetooth expansion |
| USB | 4× USB 3.0 external · 2 groups of 4× USB 2.0 headers |
| Serial | 5× COM headers · 1× CAN header |
| Expansion | 2× MSKEXT interfaces (expandable to 1× DP / 1× USB 3.0 / 1× USB 2.0 / 1× E-Key / 1× B-Key / 1× M-Key) |
| Other I/O | 8-bit GPIO header · power output 12 V / 3 A · 4-pin SYS fan |
| Security | TPM 2.0 optional (not fitted by default) |
| Power | DC 9–36V input · 90 W |
| Dimensions | 146 × 102 mm · ~120 g without heatsink · fanless cooling |
| Environment | −20°C to +60°C operating · −40°C to +85°C storage · 0–90% RH, non-condensing |
| Software | Windows 10 · Windows 11 · Linux |
Where It Fits
Factory robots and logistics lines
The MSK-TL5003AW slots where a machine needs serial reach, a network link and quiet cooling in one small board. Typical deployments:
- Factory robot control: five COM headers plus CAN tie servo, PLC and safety loops together; the 12 V/3 A output powers a small peripheral board nearby.
- Logistics equipment: dual 2.5G LAN keeps conveyor and AGV controllers on the plant network; NVMe M.2 logs throughput without mechanical storage.
- Compact embedded boxes: two MSKEXT ports add DP or USB without a custom carrier; 4G/5G via B-Key expansion keeps unattended nodes reachable.
Configuration
Ordering options
Configuration is decided at order time; the base board stays unchanged.
| Option | Available at order |
|---|---|
| CPU SKU | Celeron 6305 · i3-1115G4 · i5-1135G7 · i7-1165G7 |
| Onboard memory | 8 GB or 16 GB |
| MSKEXT mapping | 1× DP · 1× USB 3.0 · 1× USB 2.0 · 1× E-Key · 1× B-Key · 1× M-Key |
| Security | TPM 2.0 (not fitted by default) |
Product Views

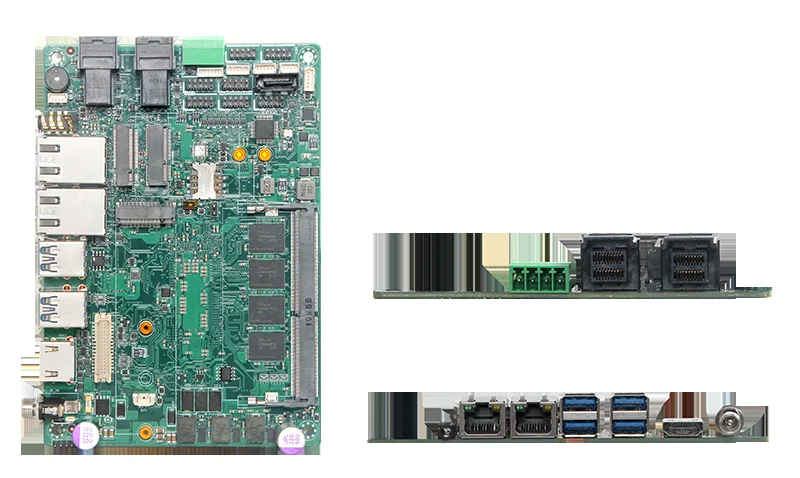

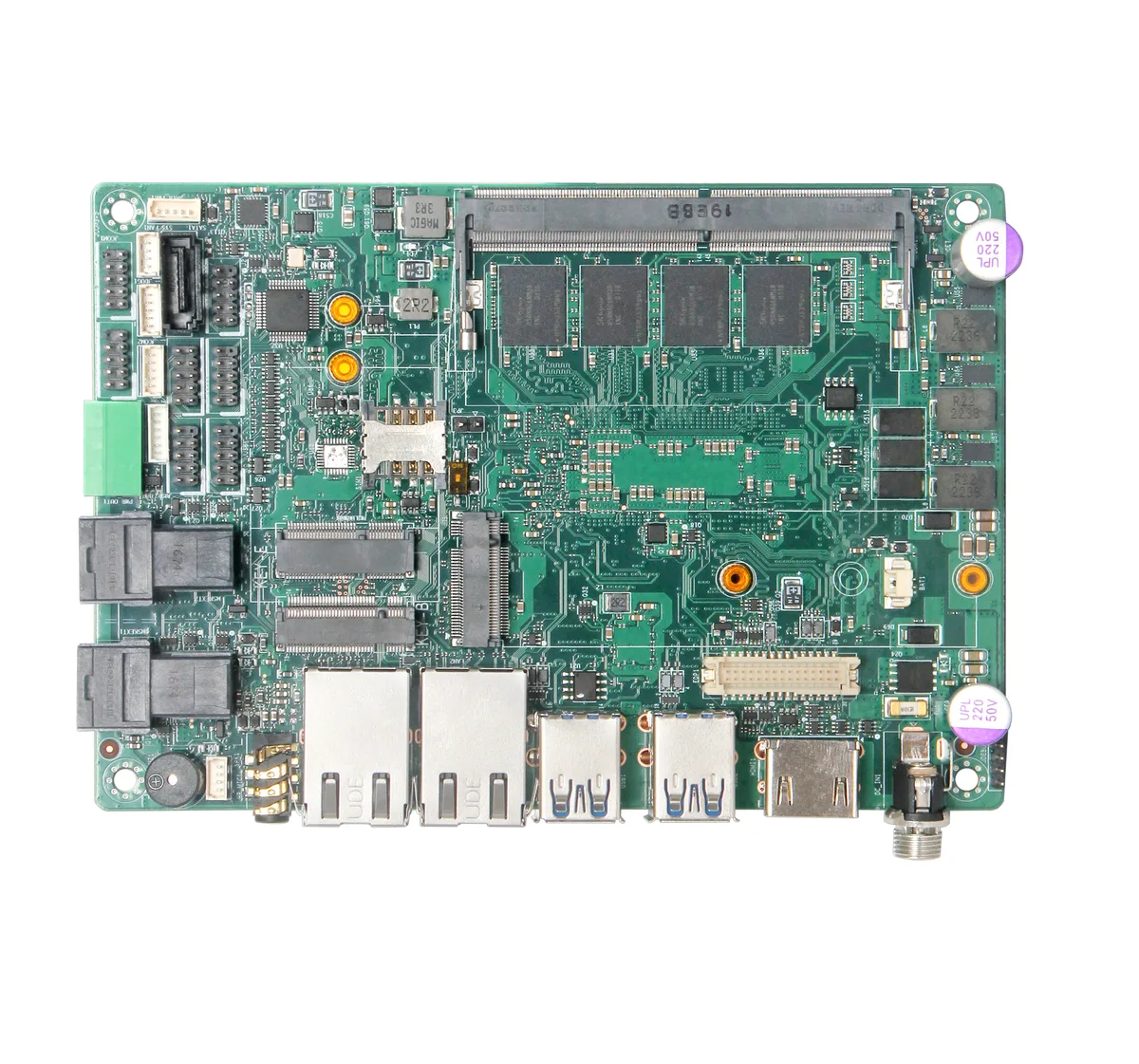

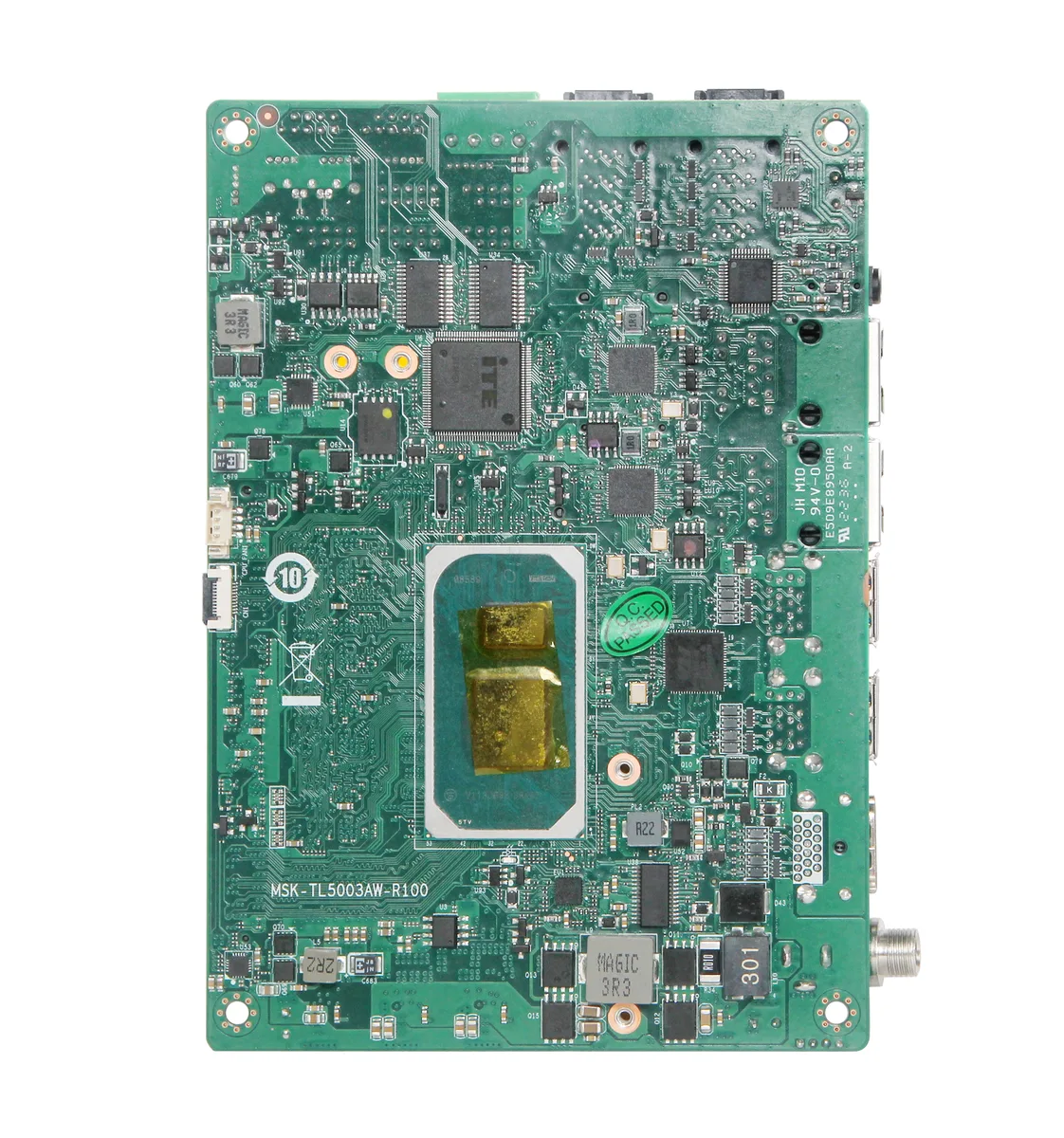

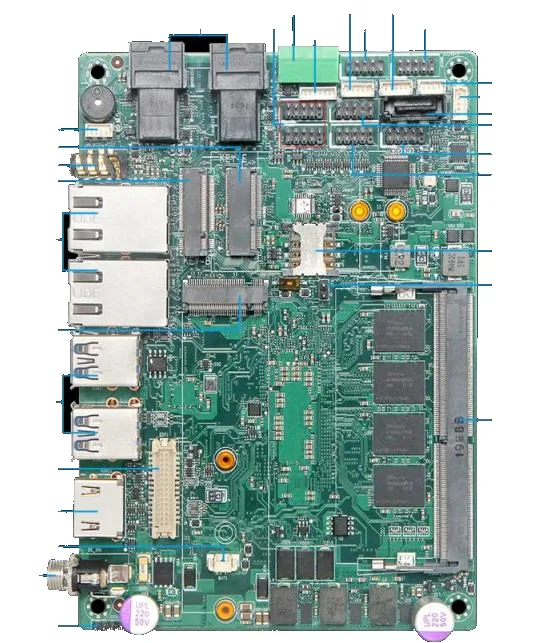

More photos of the MSK-TL5003AW
Every angle from the product shoot — board face, interfaces and mounting. Click through to see the detail.
Related Boards
Boards you should compare
Three siblings share the 3.5-inch footprint — each with a different CPU class.

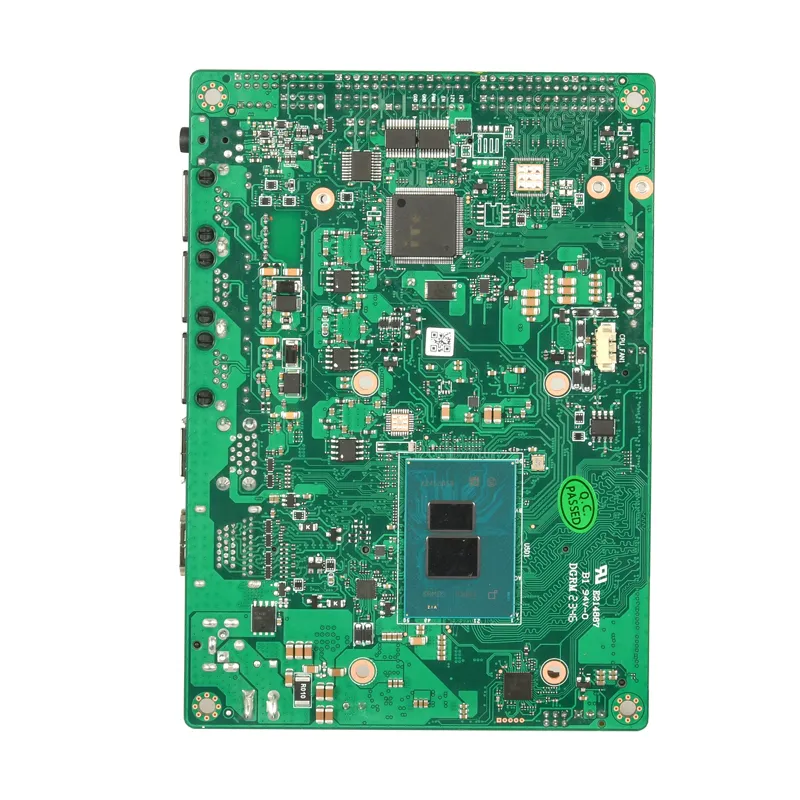

AD743AW
Alder Lake-N with triple 2.5G LAN and PoE on two ports.
View →

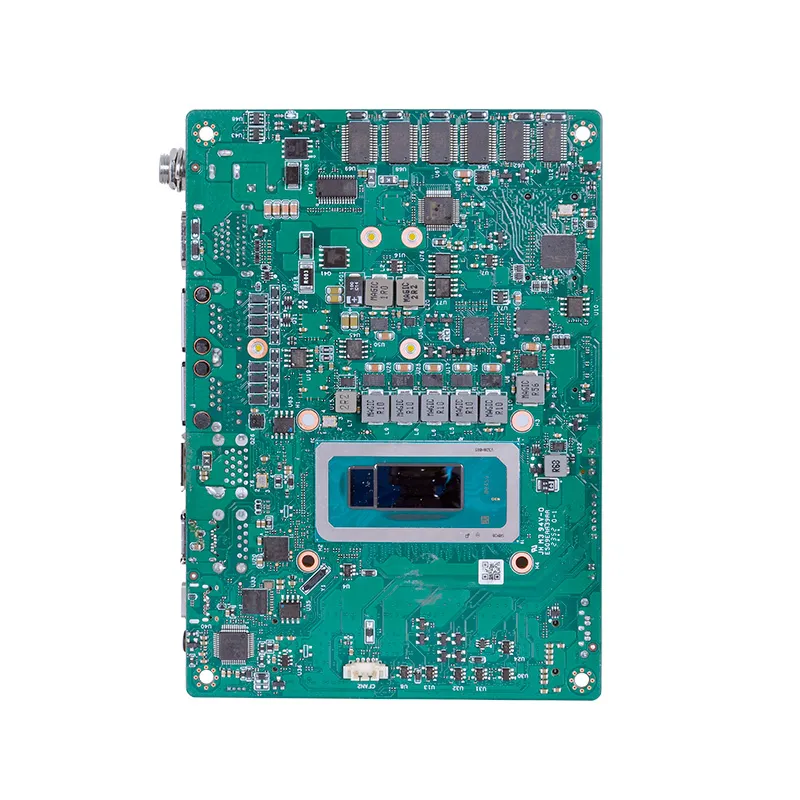

RP7003AW
