3.5-inch SBC · 146×102 MM · R100

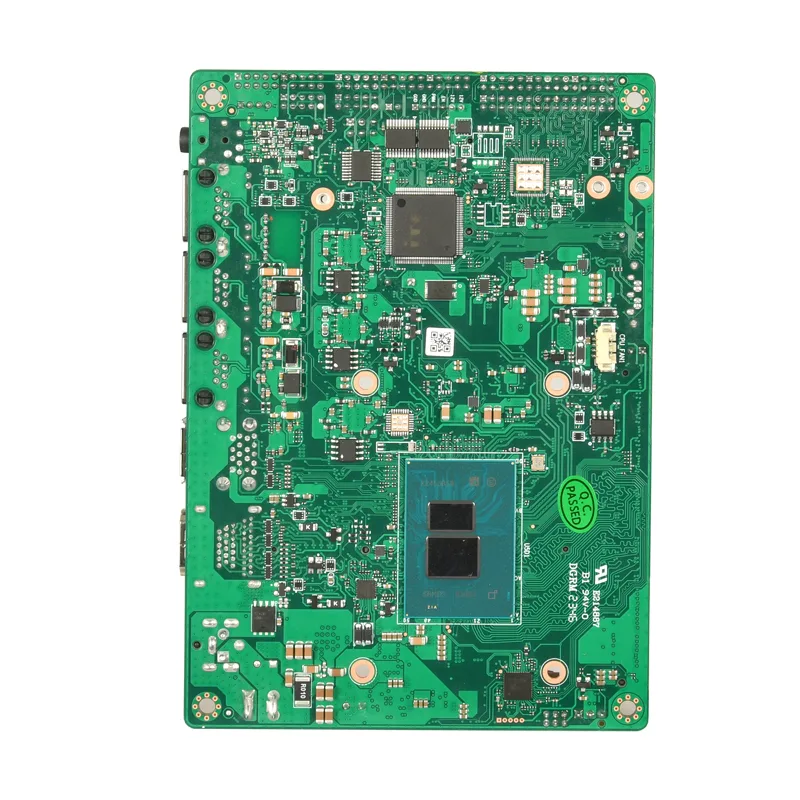

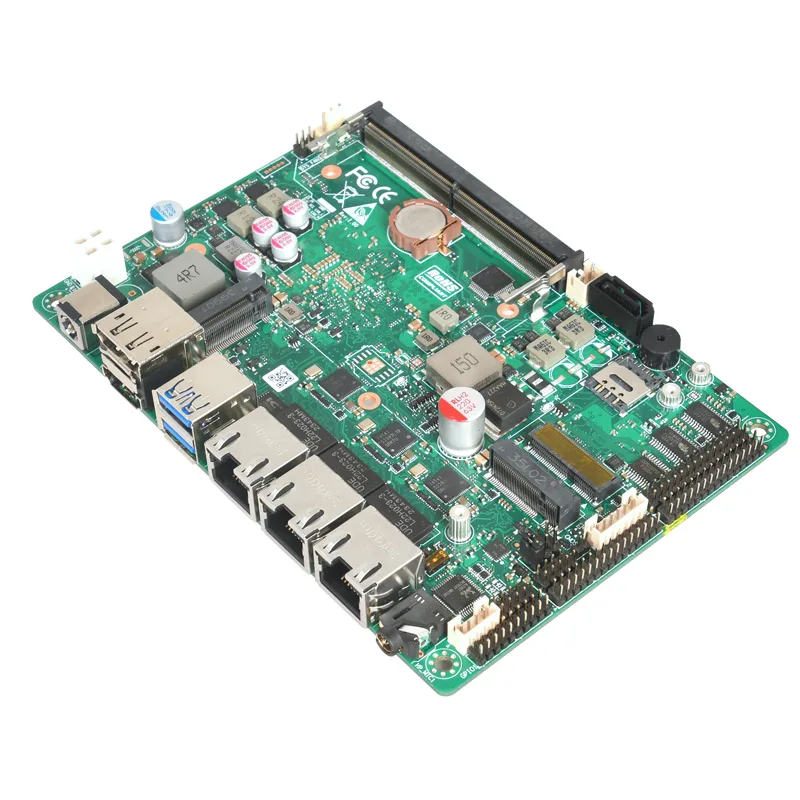

AD743AW Industrial Motherboard

Name: AD743AW Industrial Motherboard
Brand: GEOLiNK
SKU: AD743AW

Three Intel i226-V 2.5G ports with PoE on two of them, six COM with BIOS-switchable RS485/422, and a 9–36 V input — the AD743AW powers street lighting, service robots and camera sites without extra switches or converters.

Get a Quote Compare 3.5-inch

AD743AW · Quick Specs

CPU	Onboard Alder Lake-N · x7425E–N50
Memory	1× DDR5 4800 SO-DIMM, 16GB
Display	HDMI 2.1 · DP 1.4 · LVDS/eDP
Network	3× Intel i226-V 2.5G · PoE LAN2/3
Power	DC 9–36V wide input
Temperature	−20/+60°C operating

3× I226-V 2.5G LAN · POE 15W · 6× COM · DDR5 · DC 9–36V · SAMPLE MOQ 1 PC

Why AD743AW

Four reasons to wire it up

PoE LAN

Three 2.5G ports, two powered

Three Intel i226-V controllers; LAN2 and LAN3 deliver 15 W PoE each — cameras, sensors and controllers draw power down the same cable they talk on.

Serial

Six COM, RS485 in BIOS

COM1/2 switch between RS232 and RS485/RS422 in BIOS; COM3–6 stay RS232. Enough ports to keep meters, drives and controllers on a single board.

Platform

Alder Lake-N, fanless

Onboard 12th-gen SKUs from x7425E down to N50 — the performance you configure at order time, the cooling you don’t.

Power

DC 9–36V, no converter

Accepts 12 V, 24 V or 36 V site and vehicle rails directly; TPM 2.0 chip optional for secured deployments.

Full Specifications

Technical data

Per the AD743AW English specification data (revision R100). All values trace to the vendor datasheet and can be verified on request.

CPU	Onboard Intel 12th Gen Alder Lake-N · x7425E / x7213E / x7211E / i3-N305 / N97 / N50 · EFI BIOS
Memory	1× DDR5 SO-DIMM · 4800 MT/s · up to 16 GB
Storage	1× M.2 M-Key 2280 (PCIe x2 NVMe) · 1× SATA 3.0 (7-pin, with 5V 2-pin power)
Display	1× HDMI 2.1 · 1× DP 1.4 · 24-bit LVDS (LVDS or eDP, one of two)
Network	3× Intel i226-V 2.5G LAN · PoE 15 W on LAN2/LAN3 · M.2 B-Key 4G/5G + SIM · M.2 E-Key WiFi/BT
USB	2× USB 3.0 on rear · 2× USB 2.0 headers
Serial	6× COM · COM1/2 RS232 default, RS485/RS422 selectable in BIOS · COM3–6 RS232
Other I/O	8-bit GPIO header · CAN + I2C (2×3-pin, 2.0 mm) · SPK · AT/ATX · CPU smart fan + system fan
Security	TPM 2.0 chip optional (not fitted by default)
Power	DC 9–36V wide input
Dimensions	146 × 102 mm · ~160 g without heatsink (~200 g with)
Chassis	Q-BOX-S6 enclosure (124 × 220 × 78.5 mm)
Environment	−20°C to +60°C operating · −40°C to +85°C storage · 0–90% RH, non-condensing
Software	Windows 10 · Windows 11 · Linux

Where It Fits

Smart street lighting and service robots

The AD743AW earns its slot where a board must reach out over Ethernet and serial at the same time. Typical deployments:

Street lighting & city sensing: PoE on LAN2/3 powers cameras and air sensors; RS485 reaches light controllers; 4G/5G B-Key uplinks sites without fiber.
Service and rescue robots: CAN plus I2C headers and six COM keep motor and sensor stacks on one board; x7425E-class efficiency keeps the enclosure fanless.
Medical and security edge: HDMI 2.1 plus DP 1.4 drive patient-side and surveillance displays; TPM 2.0 chip optional for encrypted boots.

Street lighting cabinets along an urban road

Configuration

Ordering options

Options are fixed at order time against a standard base board.

Option	Available at order
CPU SKU	x7425E · x7213E · x7211E · i3-N305 · N97 · N50 (EFI BIOS)
Panel output	24-bit LVDS or eDP — one of two, selectable in BIOS
Security	TPM 2.0 chip (not fitted by default)
Enclosure	Q-BOX-S6 chassis, 124 × 220 × 78.5 mm
